Lexmark X746de Service Manual page 312

7526

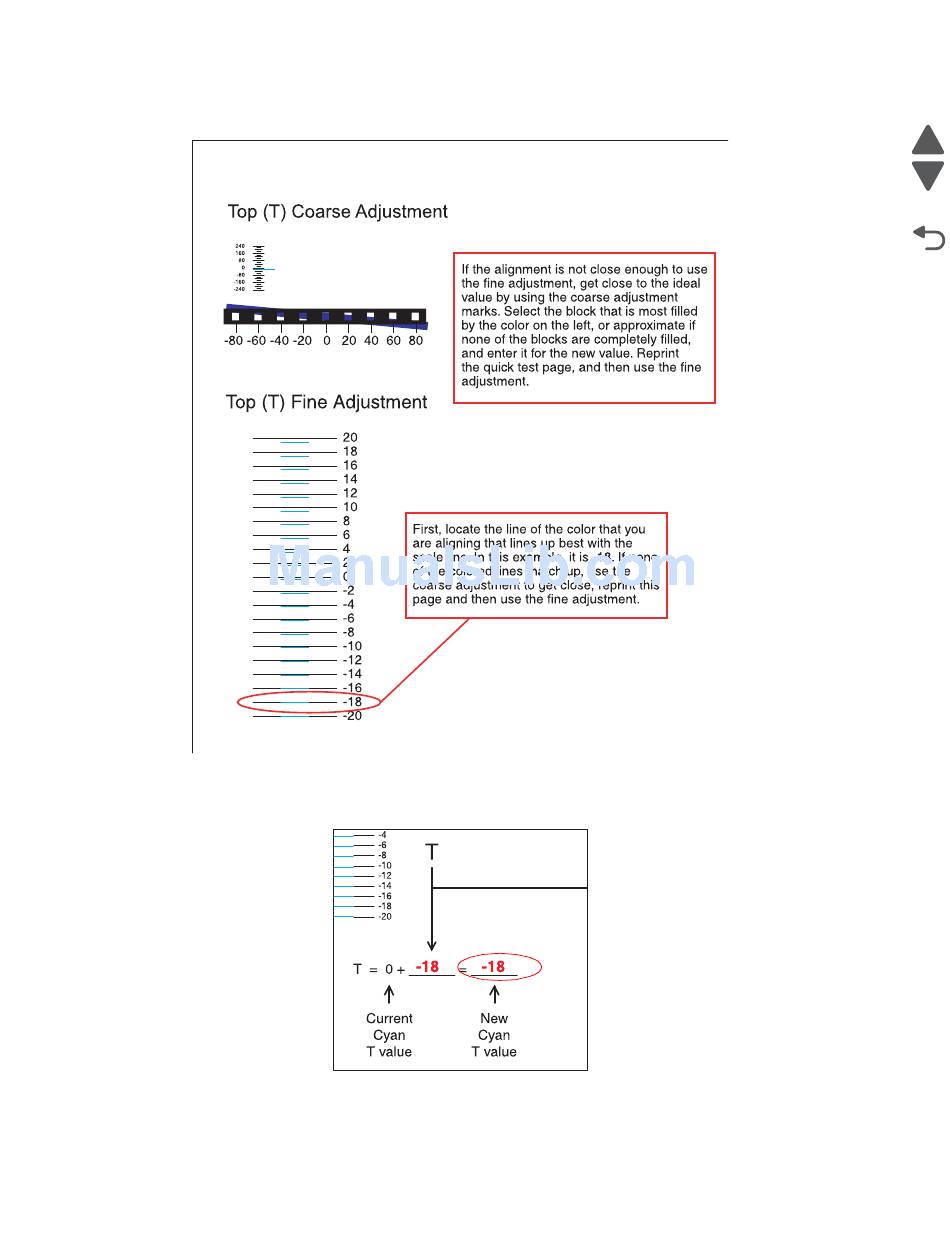

Determine the line under Fine Adjustment that is closest. If the value is beyond the Fine Adjustment scale,
7.
use either of the Coarse Adjustment scales.
Enter the number determined from the Fine Adjustment scale or the Coarse Adjustment scales on the part
8.
of the page for the "T" value. The current value is automatically entered on the sheet. At this point, it should
be zero.
Enter the "New Cyan T value" on the operator panel using the left and right arrows, and press Submit to
9.
save the value.
Reprint the Quick Test, and evaluate whether you are at zero changes.
10.
Service Manual
4-18
