iPF765
GL2 Set-
Line & Enable merge
tings
Pen
Manager
Pen Set-
up
Smoothing
ThickenFineLines
User's Guide
Setting Item
Select Palette
Define Palette
Reset Palette
Description, Instructions
Specify whether to merge or print over colors where lines
overlap.
Choose Off to print the second line over the first. Choose On
to merge all overlapping colors.
As pen values, choose Software, Palette A, Palette B, or
Factory.
Choose Software to print according to software settings.
Choose Palette A or Palette B to print using the value speci-
fied in Define Palette.
Specify the Width, Color, and Line Attributes in the palette
Pen no.. Choose Factory to confirm the values when Facto-
ry is selected in Select Palette.

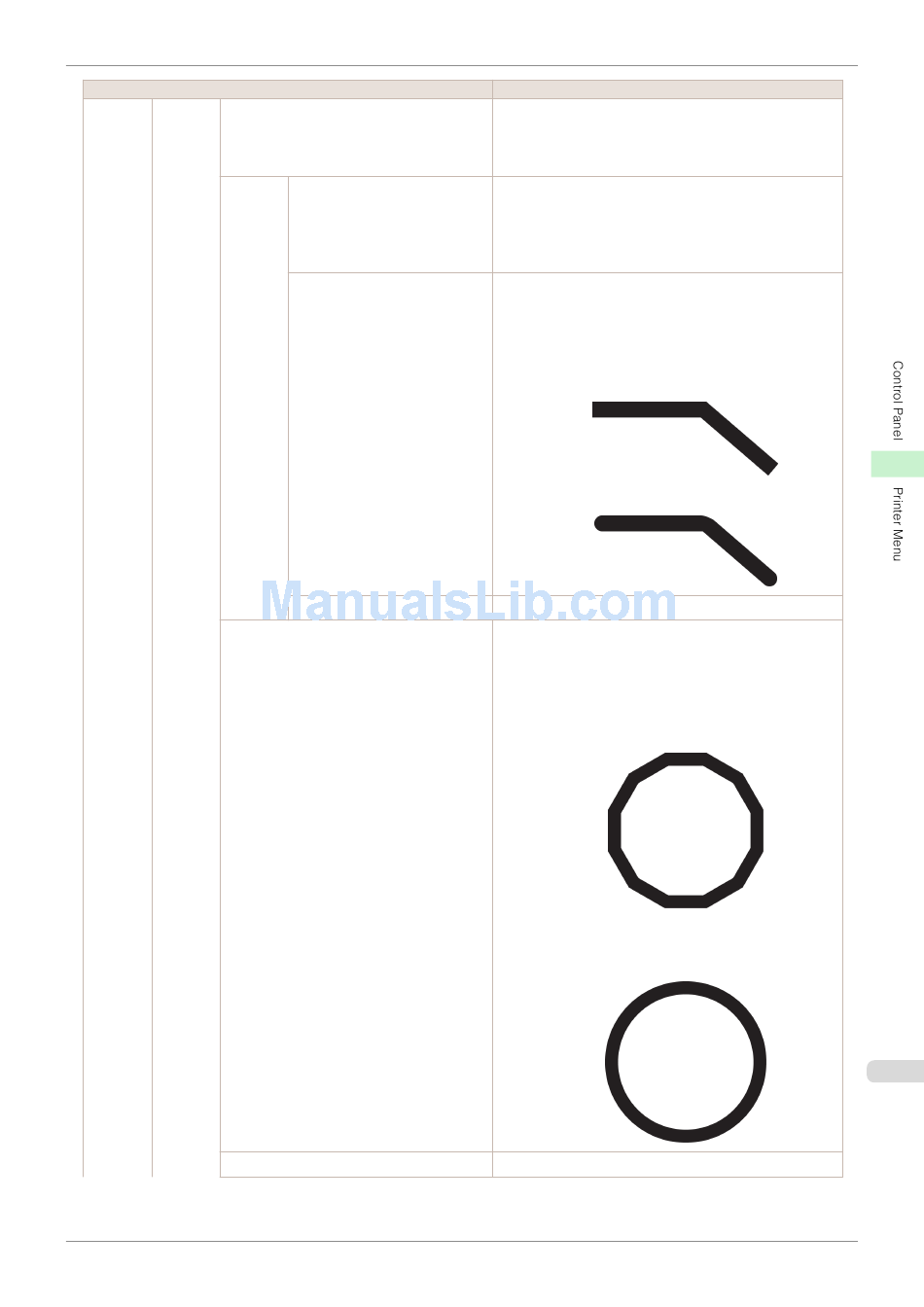

In Line Attributes, choose No Setting or Circle Setting as
the processing for the ends and junctions of lines.
•
If you choose No Setting
•
If you choose Circle Setting
Restore Define Palette to the default palette settings.
Choose whether to print arcs as smooth curved lines or as
multiple connected line segments.
•
If you choose Software
Operation is determined by the application. If nothing is
specified by the application, the result is as shown in the
figure.
Note: By default, this is a 72-sided figure
•
If you choose Smooth
Select On to print fine lines more distinctly.
Menu Settings
