Control Panel Display
Types of tabs

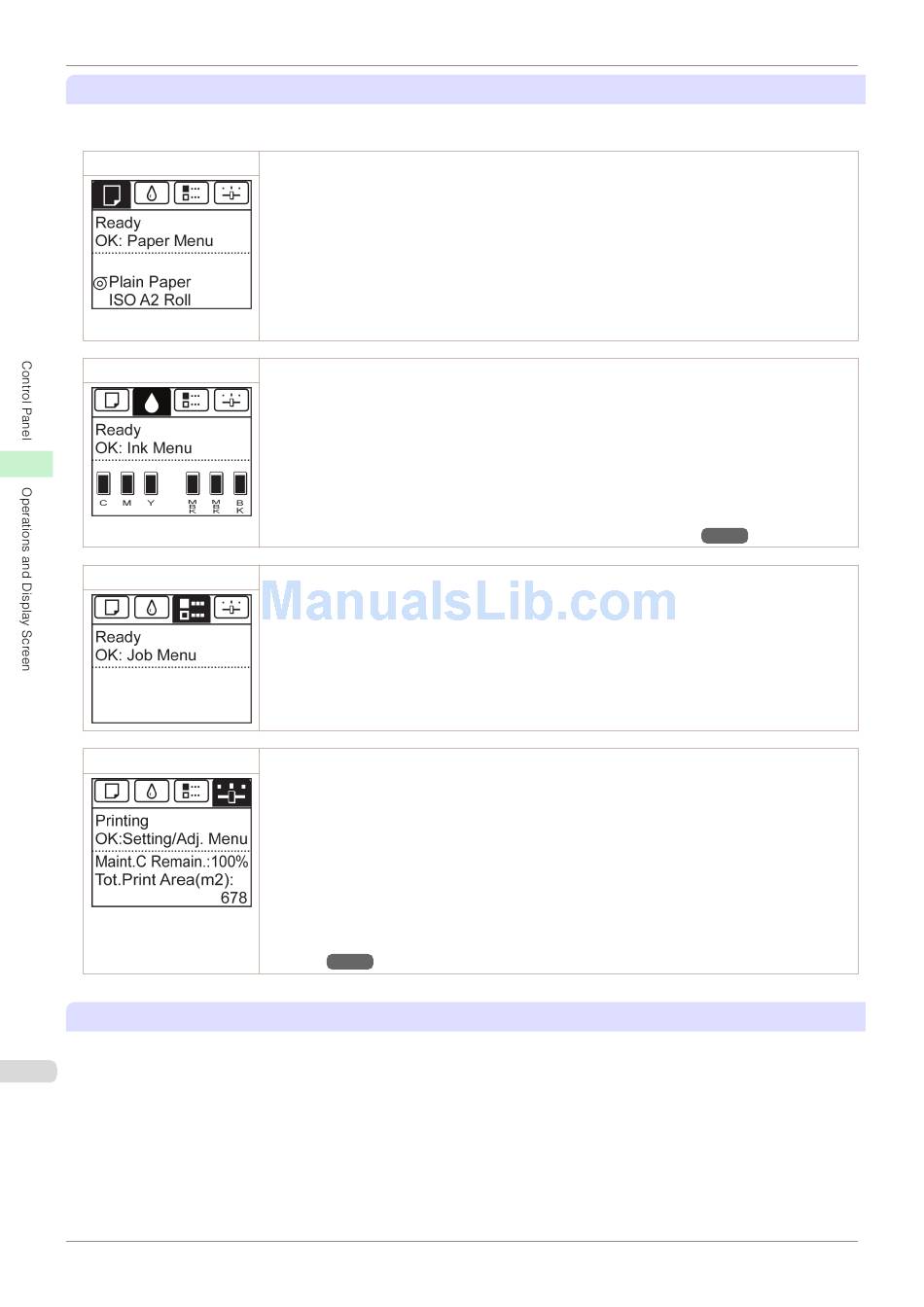

The Tab Selection screen presents four tabs. Each tab is represented by an icon in the top row. Press the ◀ or
▶ button to access other tabs.
Paper tab
Ink tab
Job tab
Settings/Adj. tab
Printer status and modes
Printer status is classified according to the following five modes.
434
A tab indicating status and showing menus related to paper. Pressing the OK button when this tab is high-
lighted will display the Paper Menu.
•
Top line displayed
The paper icon is highlighted.
•
Middle line displayed
Indicates the printer status and shows menu names.
•
Bottom line displayed
The first and second lines display the paper type and size.
A tab indicating status and showing menus related to ink. Pressing the OK button when this tab is highligh-
ted will display the Ink Menu.
•
Top line displayed
The ink icon is highlighted.
•
Middle line displayed
Indicates the printer status and shows menu names.
•
Bottom line displayed
Here, the remaining ink level is indicated. (See "Checking Ink Tank Levels.")
A tab indicating status and showing menus related to print jobs. Pressing the OK button when this tab is
highlighted will display the Job Menu menu.
•
Top line displayed
The job icon is highlighted.
•
Middle line displayed
Indicates the printer status and shows menu names.
A tab indicating status and showing menus related to settings and adjustment. Pressing the OK button
when this tab is highlighted will display the Set./Adj. Menu.
•
Top line displayed
The settings/adjustment icon is highlighted.
•
Middle line displayed
Indicates the printer status and shows menu names.
•
Bottom line displayed
The remaining Maintenance Cartridge capacity is shown on the first line and Tot.Print Area on the sec-
ond. The display unit for Tot.Print Area can be specified in the Length Unit menu. (See "Menu Set-
tings.")
→P.450
