ENGINE

GENERAL ENGINE INFORMATION

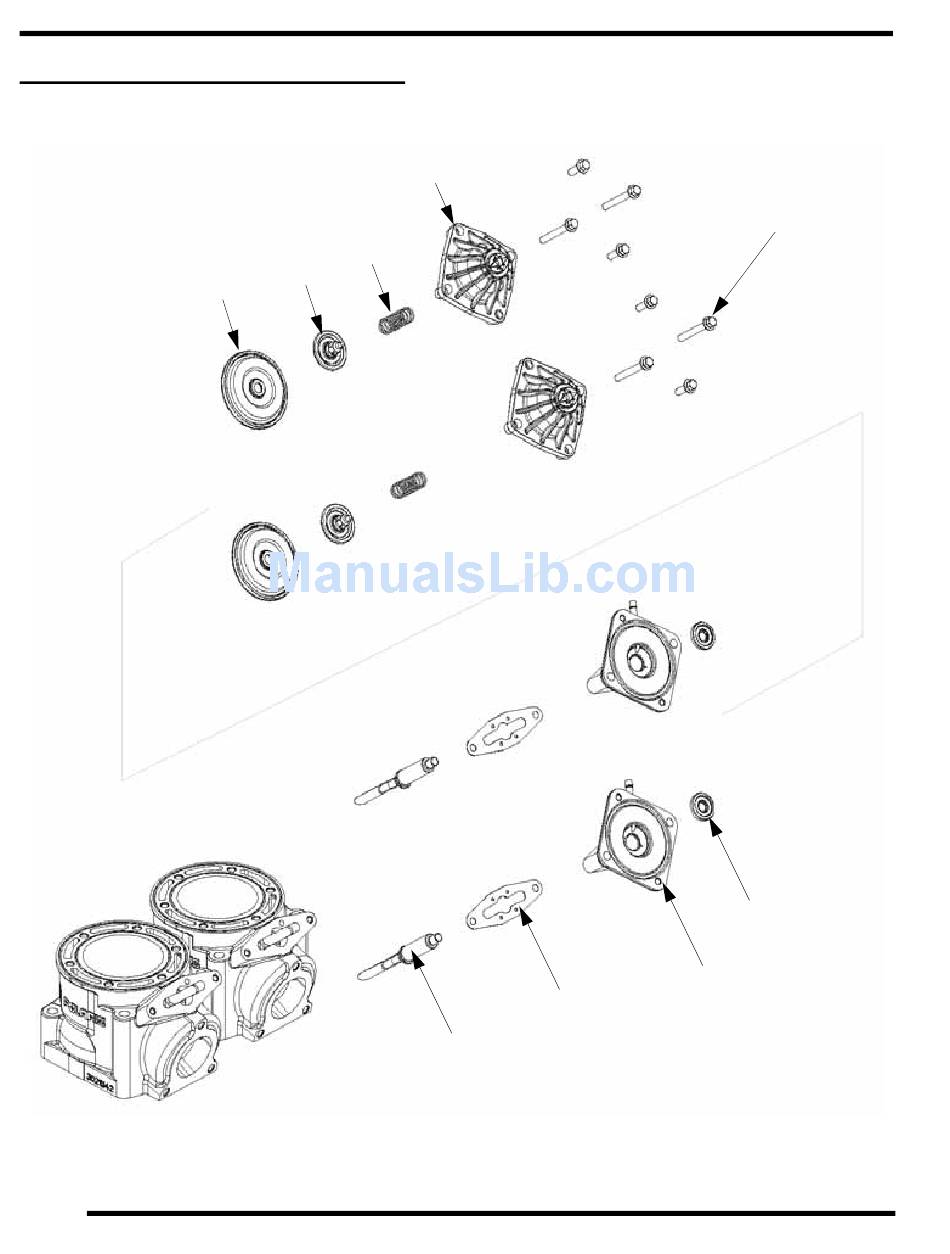

Exhaust Valve Exploded View

1. Cover Fasteners
2. Cover
3. Spring
4. Cap Nut
5. Bellows
6. Bellows Washer
7. Exhaust Valve Base
8. Base Gasket
9. Guillotine
5.2
16 ft-lb
3
(22 N-m)
4
5
2
8
9
Clean with Primer "N"
Apply LOCTITE® 2760 to 3 threads
Actuate to ensure free and full motion
1
12 ft-lb
(16 N-m)
6
7
