REAR SUSPENSION

SHOCK CONTROL RODS

Edge Shock Rods

Shock rods must be installed in the same orientation as set from the factory. Any changes made to the shock rod orientation other
than the factory setting may cause suspension damage.

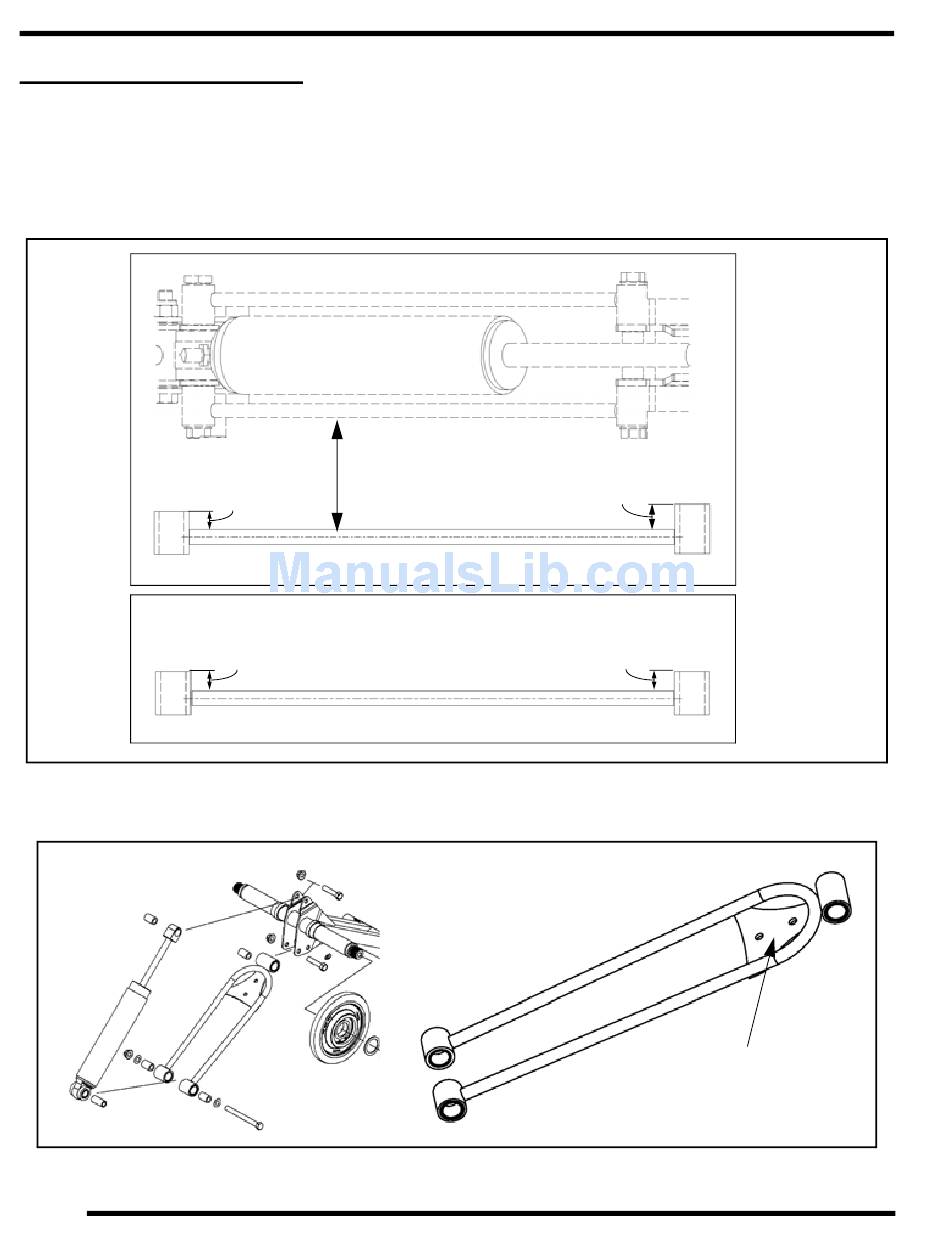

The shock rods that are found on all 2007 Edge rear suspensions are shown below.
Lower
Lower

IQ Shock Rod

Below are examples of the IQ shock rod. The orientation of this rod is so that the plate is facing downward.
9.6
Shock Rod Assembly Example (Trail RMK Shown)
Shock
.45" (11.4 mm)
Trail RMK (lower end is smaller than the upper end)
.475" (12 mm)
340, 340 LX, 500 XC SP, SuperSport (both ends are the same size)
Facing Shock .63" (16 mm)
Facing Shock
Upper
Upper
.475" (12 mm)
Plate facing down
(plate will look different
with suspensions utilizing
remote reservoir shocks)
