Encode and Decode Instructions

Encode
The Encode instruction (ENCO) writes the bit number of the
least significant bit set of the input word IN into the least
significant "nibble" (4 bits) of the output byte OUT.
Decode
The Decode instruction (DECO) sets the bit in the output
word OUT that corresponds to the bit number represented
by the least significant "nibble" (4 bits) of the input byte IN.
All other bits of the output word are set to 0.
SM Bits and ENO
For both the Encode and Decode instructions, the following
conditions affect ENO.
Error conditions that set ENO = 0
H 0006 (indirect address)
Table 6-21 Valid Operands for the Encode and Decode Instructions
Inputs/Outputs
IN
OUT

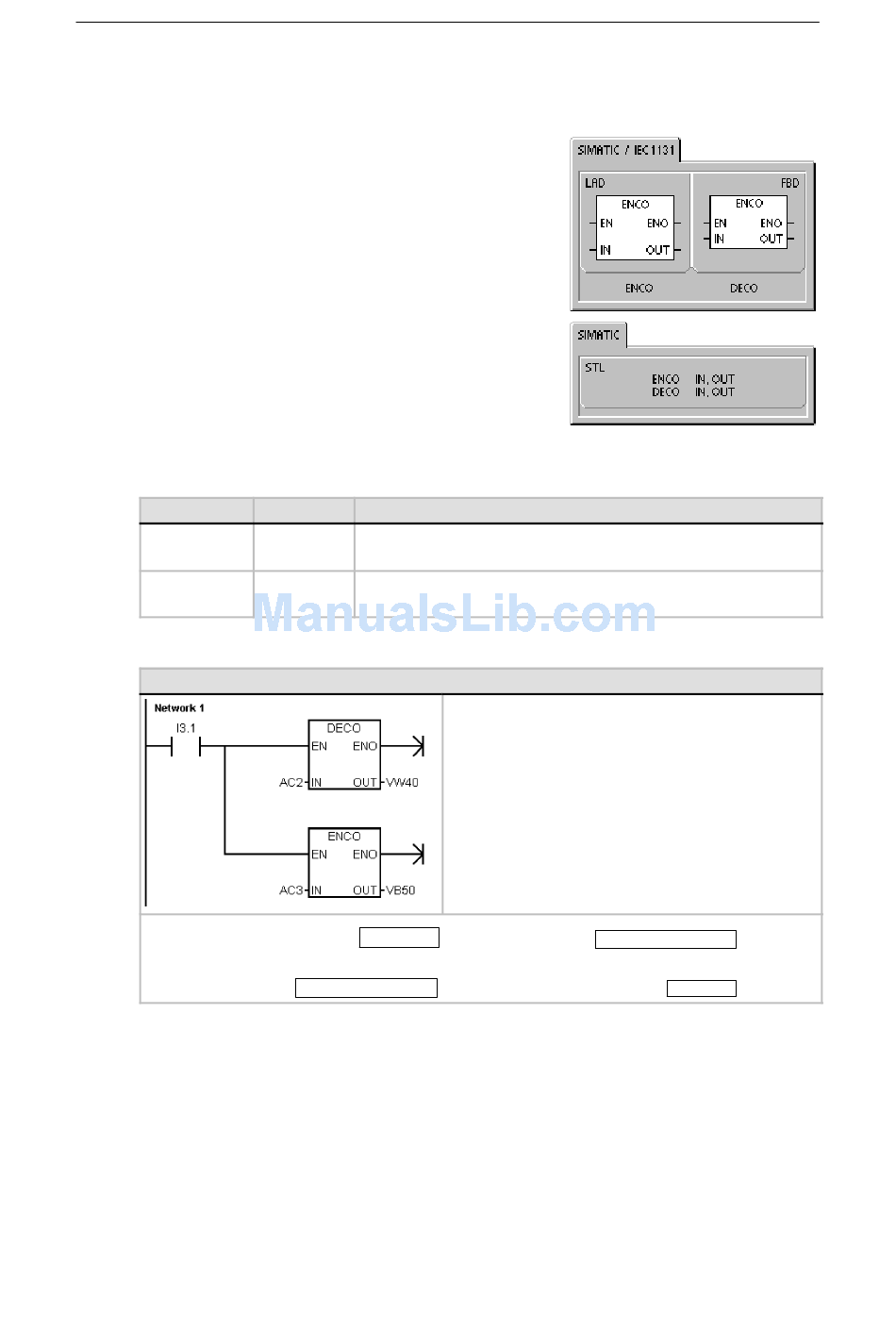

Example: Decode and Encode Instructions
112
Data Types Operands
BYTE IB, QB, VB, MB, SMB, SB, LB, AC, *VD, *LD, *AC, Constant
WORD IW, QW, VW, MW, SMW, SW, T, C, LW, AC, AIW, *VD, *LD, *AC, Constant
BYTE IB, QB, VB, MB, SMB, SB, LB, AC, *VD, *LD, *AC
WORD IW, QW, VW, MW, SMW, SW, T, C, LW, AC, AQW, *VD, *LD, *AC
AC2
DECO
15 3
VW40
0000 0000 0000 1000
Network 1 //AC2 contains error bits.
//1. The DECO instruction sets
the bit in VW40
// that corresponds to this error
// code.
//2. The ENCO instruction converts
// the least significant bit set to an
// error code
// that is stored in VB50.
LD I3.1
DECO AC2, VW40
ENCO AC3, VB50
15
3
AC3
0
VB50
9 0
1000 0010 0000 0000
ENCO
9
