I-Class Mark II Maintenance Manual
2.1.3

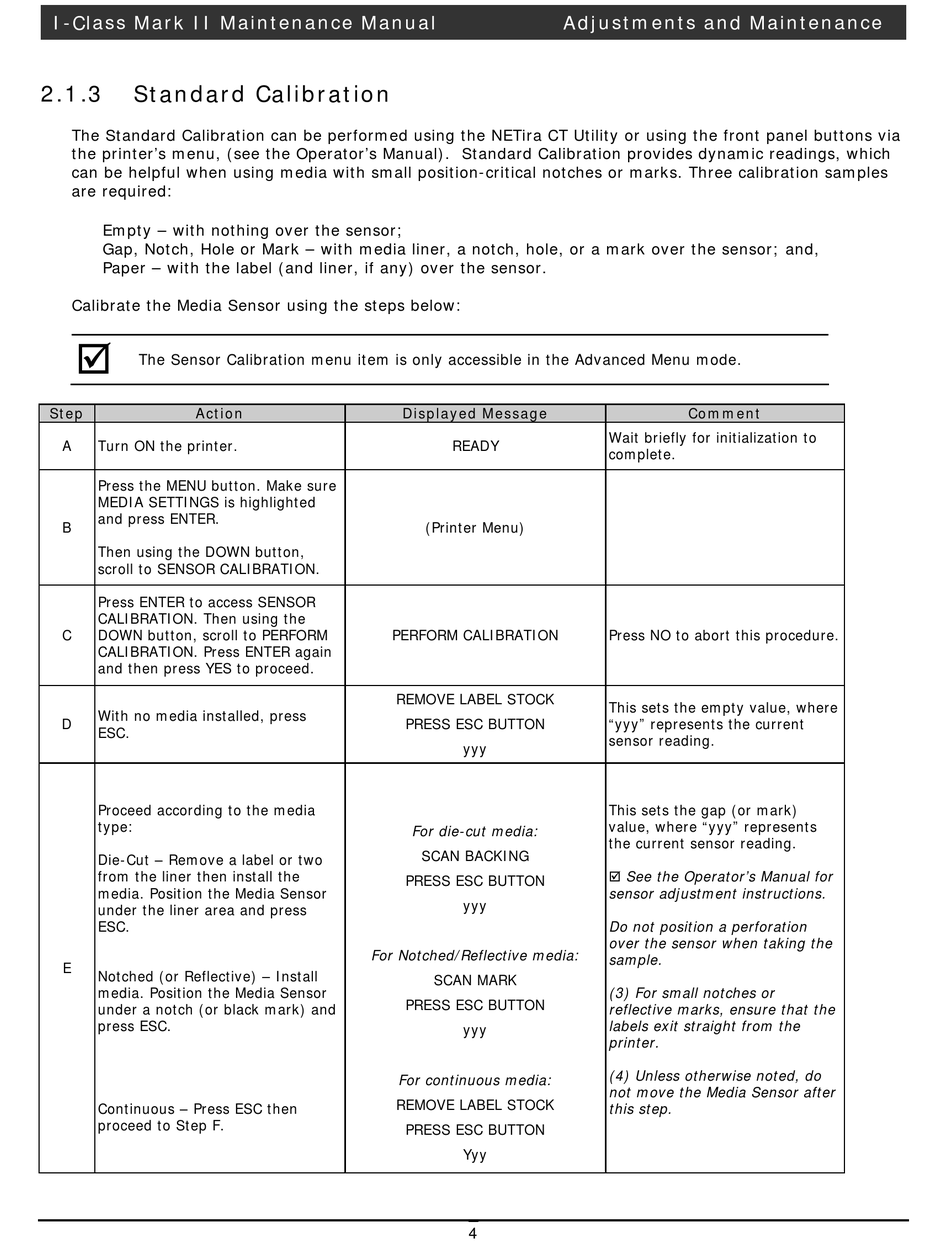

Standard Calibration

The Standard Calibration can be performed using the NETira CT Utility or using the front panel buttons via
the printer's menu, (see the Operator's Manual). Standard Calibration provides dynamic readings, which
can be helpful when using media with small position-critical notches or marks. Three calibration samples
are required:
Empty – with nothing over the sensor;
Gap, Notch, Hole or Mark – with media liner, a notch, hole, or a mark over the sensor; and,
Paper – with the label (and liner, if any) over the sensor.
Calibrate the Media Sensor using the steps below:

The Sensor Calibration menu item is only accessible in the Advanced Menu mode.
Step Action
A Turn ON the printer.
Press the MENU button. Make sure
MEDIA SETTINGS is highlighted
and press ENTER.
B
Then using the DOWN button,
scroll to SENSOR CALIBRATION.
Press ENTER to access SENSOR
CALIBRATION. Then using the
C DOWN button, scroll to PERFORM
CALIBRATION. Press ENTER again
and then press YES to proceed.
With no media installed, press
D
ESC.
Proceed according to the media
type:
Die-Cut – Remove a label or two
from the liner then install the
media. Position the Media Sensor
under the liner area and press
ESC.
E
Notched (or Reflective) – Install
media. Position the Media Sensor
under a notch (or black mark) and
press ESC.
Continuous – Press ESC then
proceed to Step F.
Displayed Message
READY
(Printer Menu)
PERFORM CALIBRATION
REMOVE LABEL STOCK
PRESS ESC BUTTON
yyy
For die-cut media:
SCAN BACKING
PRESS ESC BUTTON
yyy
For Notched/Reflective media:
SCAN MARK
PRESS ESC BUTTON
yyy
For continuous media:
REMOVE LABEL STOCK
PRESS ESC BUTTON
Yyy
4
Adjustments and Maintenance
Comment
Wait briefly for initialization to
complete.
Press NO to abort this procedure.
This sets the empty value, where
"yyy" represents the current
sensor reading.
This sets the gap (or mark)
value, where "yyy" represents
the current sensor reading.
 See the Operator's Manual for
sensor adjustment instructions.
Do not position a perforation
over the sensor when taking the
sample.
(3) For small notches or
reflective marks, ensure that the
labels exit straight from the
printer.
(4) Unless otherwise noted, do
not move the Media Sensor after
this step.
