I-Class Mark II Maintenance Manual Removal and Replacement
4.11

Power Supply PCB

Removal:
1. Turn OFF and unplug the printer.
2. Remove the Cover Assembly; see Section 4.1.
3. Disconnect the cables from the Power Supply PCB.

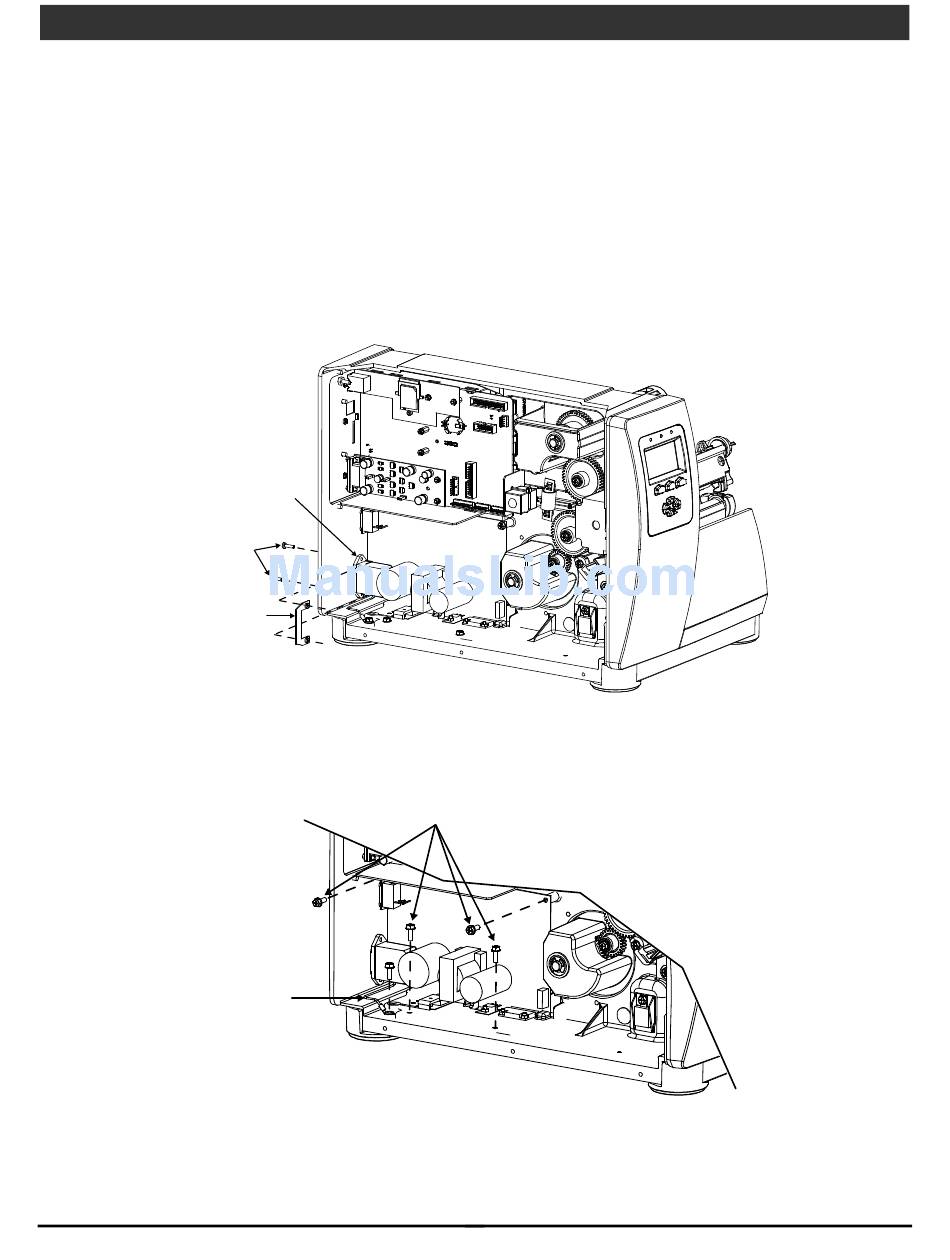

4. Remove the two Screws and Nut Plate that secure the AC Connector.
AC Connector
Screws
Nut Plate
5. Remove the Screw and Washer that secures the Ground Wire Lug to the chassis.
6. Remove the four Screws that secure the Power Supply PCB and then remove the Power Supply PCB.
Screws
Ground
Wire Lug
60
