I-Class Mark II Maintenance Manual
4.7.1

Printhead Assembly Breakdown

Within the Printhead Assembly, there are several serviceable parts and sub-assemblies. The following section
is an overview of the breakdown of the Printhead Assembly, refer to the I-Class Mark II Parts Catalog for
available parts.
Removal:

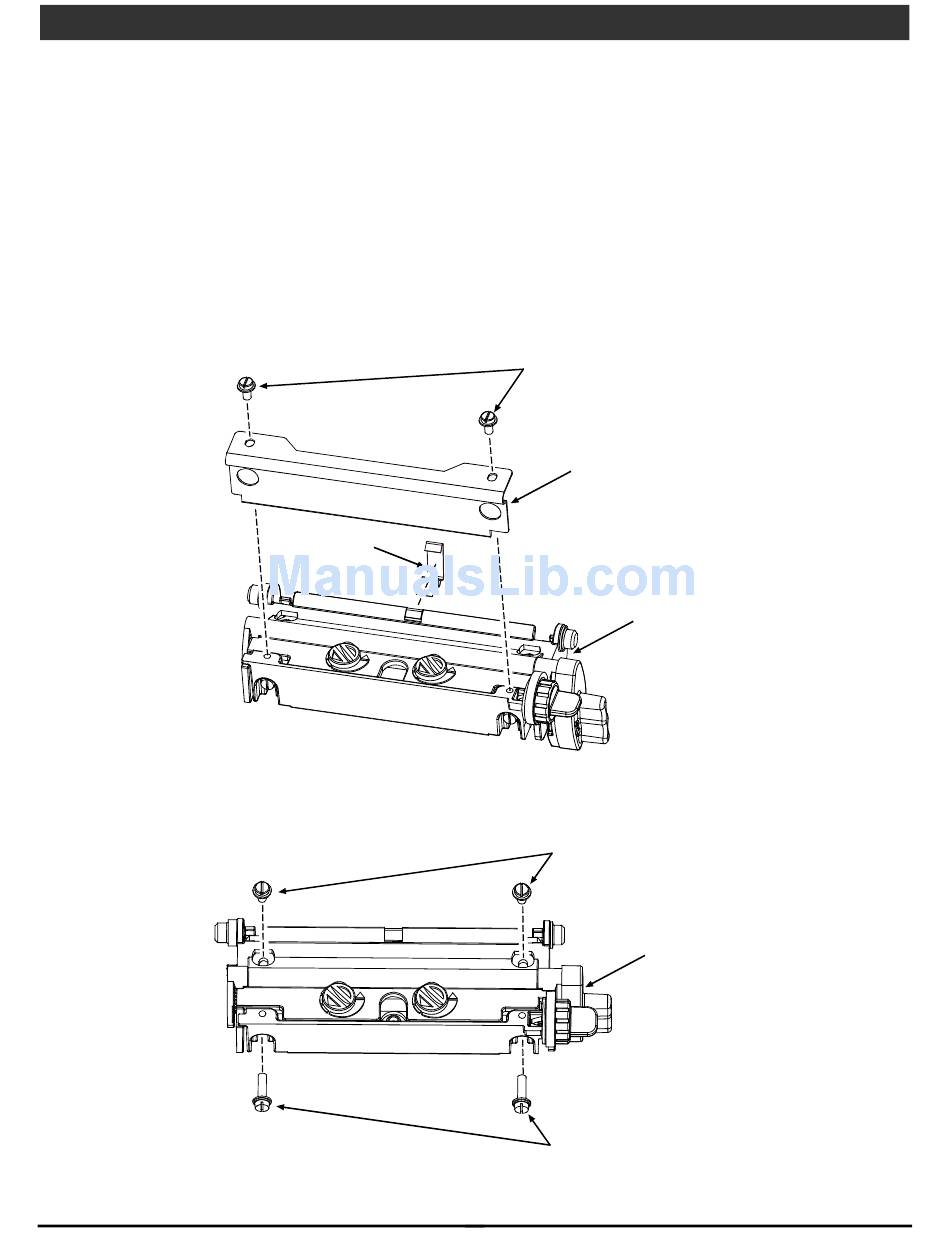

1. Remove the Printhead Assembly; see Section 4.7.
2. Carefully pry the Clip from the Printhead Assembly. Also, remove the two Screws that secure the Ribbon
Shield and then remove it from the Printhead Assembly.
3. Remove the Locking Screws and the Alignment Screws.
Clip
54
Removal and Replacement
Screws
Ribbon
Shield
Printhead
Assembly
Locking
Screws
Printhead
Assembly
Alignment
Screws
