I-Class Mark II Maintenance Manual

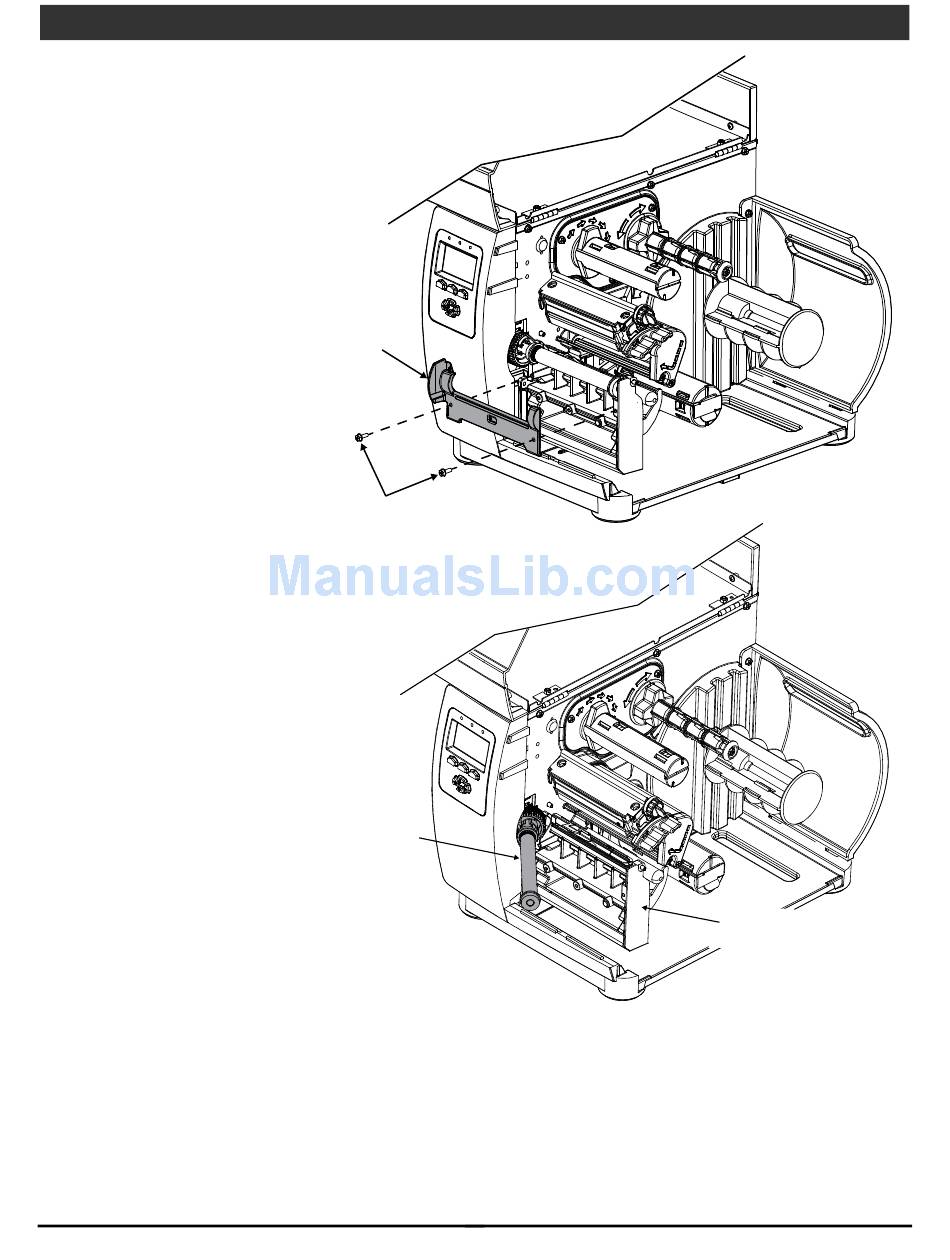

4. Remove the two Screws that
secure the Bearing Plate and
then remove the Bearing
Plate from the Platen Block.
5. Remove the Platen Assembly
from the Platen Block. Pivot
the Platen Assembly as
shown to remove it from the
printer.
If necessary, loosen the Front
Panel Fascia to facilitate
removal; see Section 4.2.
Replacement:
1. Place the Platen Assembly into the Platen Block, ensuring proper gear mesh.
2. Position the Bearing Plate onto the Platen Block and secure it with the two Screws.
3. Position and then snap the Gear Cover into place.
4. Clean the Platen; see Section 2.4.2.
5. Replace the Tearplate, Thumbscrew, and the Tearplate Fascia.
Bearing
Plate
Screws
Platen
Assembly
48
Removal and Replacement
Platen
Block
