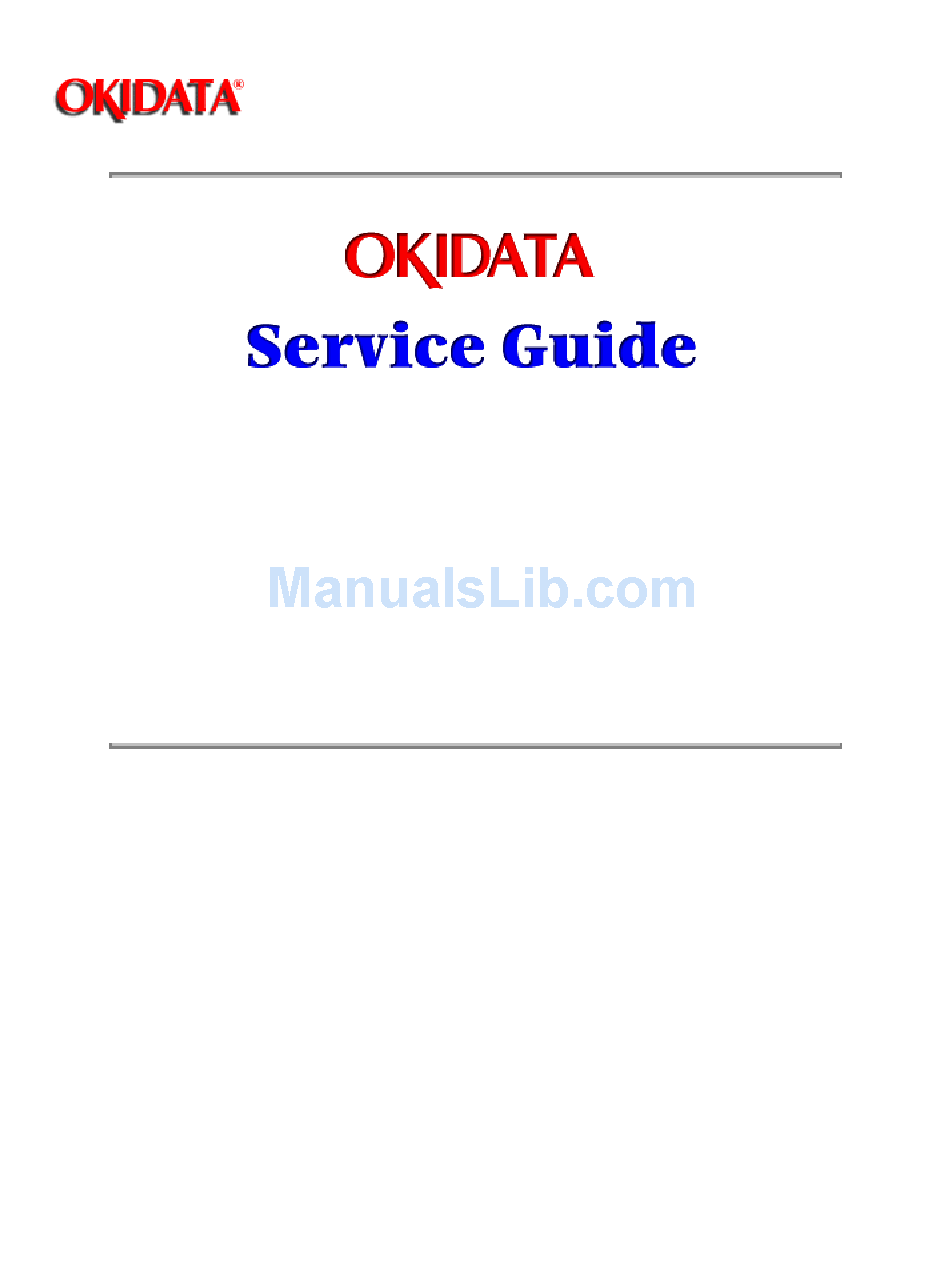

Page 1 300 dpi, which is ideal for printing, but does not display well on most displays. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 2: Table Of Contents
Table of Contents Page Service Manual - OKIPAGE10i 0 Introduction Disclaimer Copyright Listing 1 Configuration 1.1 System Configuration 1.2 Printer Configuration 1.3 Optional Configuration 1.4 Specification 1.5 Safety Standard ..1.5.1 Certification Label ..1.5.2 Warning Label ..1.5.3 Warning/Caution Marking 2 Operation Description Operation Description 2.1 Main Control Board 2.2.
Page 3 Table of Contents Page ..3.3.15 Fusing Unit ..3.3.16 Back-up Roller ..3.3.17 Sensor Plate (Inlet) ..3.3.18 Sensor Plate (Outlet) ..3.3.19 Manual Feed Guide Assy ..3.3.20 Sensor Plate (Paper Supply) ..3.3.21 M5B-PCB ..3.3.22 Transformer ..3.3.23 Power Supply/Sensor Board and Contact Assy ..3.3.24 Cassette Guide L Assy ..3.3.25 Cassette Guide R Assy ..3.3.26 Spacer Bearing (L/R) 4 Adjustment...
Page 4 Table of Contents Page ..6.5.2 LCD Message Troubleshooting ..6.5.2 (1) The printer does not work normally after the power is turned on ..6.5.2 (2) Jam alarm ..6.5.2 (3) Paper size error ..6.5.2 (4) Fusing unit error (ERROR 71) (ERROR 72) (ERROR 73) ..6.5.2 (5) Synchronous serial I/O error (ERROR 74) ..6.5.2 (6) Fan error (ERROR 70)
Page 5 Table of Contents Page ..1.1 Functions ..1.2 External View and Component Names 2.0 Mechanism Description ..2.1 General Mechanism ..2.2 Hopper Mechanism 3.0 Parts Replacements ..3.1 Precautions Concerning Parts Replacement ..3.2 Parts Layout ..3.3 Parts Replacement Method ..3.3.1 Link ..3.3.2 Separator ..3.3.3 OLEV-11-PCB ..3.3.4 Pulse Motor ..3.3.5 Planet Gear...
Page 6 Table of Contents Page 5.0 CONNECTION DIAGRAM ..5.1 Interconnection Diagram ..5.2 PCB Layout 6. PARTS LIST ..High Capacity Second Paper Feeder ..2nd Tray Assembly G Network Interface (Option) Network Interface (Option)
Page 7 532 Fellowship Road Mount Laurel, NJ 08054-3499 Website: www.okidata.com Telephone: 609-235-2600 Facsimile: 609-222-5320 OkiLink (BBS) Technical Training Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 8 Okidata does not warrant or represent that such documentation is complete, nor does Okidata represent or warrant that it will notify or provide to such customer any future changes to this documentation. Customer performed service of equipment, or modules, components or parts of such equipment may affect the warranty offered by Okidata with respect to such equipment.
Page 9 Service Manual - OKIPAGE10i Chapter 1 Configuration OKIPAGE 10i consists of control and engine blocks in the standard configuration, as shown in Figure 1-1. In addition, the options marked with asterisk (*) are available. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business...
Page 10 Controller Operator Panel Power Supply Unit The printer unit configuration is shown in Figure 1-2. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 11 Page: 5 Service Manual - OKIPAGE10i Chapter 1 Configuration The options shown below are available for use with OKIPAGE 10i. These are available separately from the printer unit. (1) High Capacity Second Paper Feeder (2) Power Envelope Feeder (3) 1MB Memory Expansion Board...
Page 12 Dram SIMM is available in increments of 1MB (min.) to 16MB (max.) on each SIMM. The access time of SIMM memories are 60ns, 70ns, 80ns, and 100ns. (7) PostScript program SIMM Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 13 Page: 6 Service Manual - OKIPAGE10i Chapter 1 Configuration Type Desktop External dimensions (excludes Height 7.9" (200 mm) protruding portion) Width 13.0" 9330 mm) Depth 14.9" (378 mm) Weight 26 lbs. (10 kg) Developing method Dry electrophotography Exposing method LED stationary head Paper used <Type>...
Page 14 Printing speed Continuous printing: 10 pages per minute with Letter size paper. [Except Second Paper Feeder 8.8PPM), Multi-Purpose Feeder (8.3PPM)]. Warm-up time: 80 seconds, typical at room temperature [77 F (25 C), AC120/230 V]. First page print time: 14 seconds typical for the Letter size paper after warm-up.
Page 16: Certification Label
Service Manual - OKIPAGE10i Chapter 1 Configuration 1.5.1 Certification Label 1.5.2 Warning Label 1.5.3 Warning/Caution Marking Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 17 Chapter 1 Configuration The safety certification label is affixed to the printer in the position described below. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 18 The warning labels are affixed to the sections which may cause bodily injury. Follow the instructions on warning labels during maintenance. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 19 Page: 10 Service Manual - OKIPAGE10i Chapter 1 Configuration The following warning and caution markings are made on the power supply/sensor board. ENGLISH Heatsink and transformer core present risk of electric shock. Test before touching. FRENCH Le dissipateur thermique et le noyau du transformateur présentent des risques de choc électrique. Testez avant de manipuler.
Page 21: Operation Description
Service Manual - OKIPAGE10i Chapter 2 Operation Description OKIPAGE 10i consists of a main control board, a power supply/sensor board, an operator panel, an electrophotographic process mechanism, and revision for illumination of LED head. The main control board receives data via the host I/F, it then decodes, edits and stores the data in memory.
Page 22 Page: 12 Service Manual - OKIPAGE10i Chapter 2 Operation Description The main control board consists of a single chip CPU, two program/font ROMs, four DRAMs, an EEPROM, a host interface circuit, and a mechanism driving circuit. (1) Single chip CPU The single chip CPU is a custom CPU (32-bit internal bus, 32-bit external bus, 28.24-MHz clock, with input frequency from a 7.06-MHz clock) which incorporates the RISC CPU and its peripheral devices, and has the following functions:...
Page 23: Specification
Parallel data is received from a host system via parallel interface which conforms to the IEEE1284 specification. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 24: Main Control Board
Page: 13 Service Manual - OKIPAGE10i Chapter 2 Operation Description The power supply/sensor board consists of an AC filter circuit, a low voltage power supply circuit, a high voltage power supply circuit, heater drive circuit, and photosensors. (1) Low Voltage Power Supply Circuit This circuit generates the following voltages.
Page 25 OFF: No paper exists. Toner low sensor Detects the lack of toner. - - - - - Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 26: Electrophotographic Process Mechanism
Chapter 2 Operation Description 2.3.1 Electrophotographic Process Mechanism 2.3.2 Electrophotographic Process 2.3.3 Process Operation Descriptions Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 27 Page: 15 Service Manual - OKIPAGE10i Chapter 2 Operation Description This mechanism actuates the printing of image data supplied by the main control board on the paper by electrophotographic process. The layout of the electrophotographic process mechanism is shown in Figure 2-3. (1) Image Drum Unit The image drum unit consists of a sensitive drum, a charger, and a developer.
Page 28 AC voltage supply. The temperature setting of the fuser can be changed through operator panel setting. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 29 Page: 16 Service Manual - OKIPAGE10i Chapter 2 Operation Description The electrophotographic processing is outlined below. The electrophotographic printing process is shown in Figure 2-4. 1 Charging The surface of the image drum is charged uniformly with a negative charge by applying the negative voltage to the charge roller.
Page 32 Page: 17 Service Manual - OKIPAGE10i Chapter 2 Operation Description (1) Hopping and Feeding Hopping and feeding motions are actuated by a single registration motor in the mechanism as shown below: The registration motor turning in direction "a" drives the hopping roller. The registration motor turning in direction "b"...
Page 33 drives the registration roller to advance the paper (in this case, the hopping gear also turns, but the hopping roller is prevented from turning by the one-way bearing). 2 The paper is further advanced in synchronization with the print data. (2) Charging Charging is actuated by the application of the DC voltage to the charge roller that is in contact with the image drum surface.
Page 34 (3) Exposure Light emitted by the LED head irradiates the image drum surface. The surface potential of the irradiated portion of the image drum drops, forming an electrostatic latent image associated with the image signal. The image drum is coated with an underlayer (UL), a carrier generation layer (CGL), and carrier transfer layer (CTL) on aluminum base.
Page 35 (4) Developing Toner is attracted to the electrostatic latent image on the image drum surface, converting it into a visible toner image. Developing takes place through the contact between the image drum and the developing roller. 1 As the toner supply roller rotates while rubbing on the developing roller, a friction charge is generated between the developing roller and the toner, allowing the toner to be attracted to the developing roller (the developing roller surface is charged positive and the toner, negative).
Page 36 Note: The bias voltage required during the developing process is supplied to the toner supply roller and the developing roller, as shown below. -500 VDC is supplied to the toner supply roller, -265 VDC to the developing roller. (5) Transfer The transfer roller is composed of conductive sponge material, and is designed to get the image drum surface and the paper in a close contact.
Page 37 (6) Fusing When the transfer is completed, the toner image is fused to the paper by heat and pressure as the paper with unfused toner image passes between the heater roller and the back-up roller. The heater roller with Teflon coating incorporates a 400W heater (Halogen lamp), which generates heat. A thermistor which is in contact with the heater roller regulates the temperature of the heater roller to a designated temperature in the menu, depending on the thickness of the paper (tray 1&2: light=165°C, medium light=170°C, medium=175°C, medium heavy and heavy=195°C/manual feeding and power...
Page 38 Changes in bias voltage applied to each roller move the attaching toner off the roller to the image drum and return it to the developer. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 39: Paper Jam Detection
Page: 18 Service Manual - OKIPAGE10i Chapter 2 Operation Description The paper jam detection function monitors the paper condition when the power is turned on and during printing. When any of the following conditions arises, this function interrupts the printing process. If any of the following errors is encountered, printing can be recovered by removing the jammed paper (by opening the upper cover, removing the jammed paper and closing the upper cover).
Page 40 Paper Feed Check List Error Type of error Monitor Standard Plus Minus value Paper feed error Hopping start to In sensor on 72.0 36.0 Paper feed jam In sensor on to Write sensor on 20.0 22.0 Paper feed jam Write sensor on to Out sensor on 140.5 25.0 Paper size error...
Page 41 Free 110.1-355.6 65.0 400.6 Unit: mm Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 42: Cover Open
Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 43: Toner Low Detection
Page: 20 Service Manual - OKIPAGE10i Chapter 2 Operation Description Device The Toner Low Detection device consists of a stirring gear which rotates at a constant rate, a stirring bar and a magnet on the stirring bar. The stirring bar rotation is driven by the link to the gouged portion in the stirring gear.
Page 44 The toner sensor is not monitored while the main (drum) motor is in a halt. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 45 The section explains the procedures for replacement of parts, assemblies, and units in the field. Only the disassembly procedures are explained here. For reassembly, reverse the disassembly procedure. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 46: Parts Replacement
Page: 22 Service Manual - OKIPAGE10i Chapter 3 Parts Replacement (1) Before starting to replace parts, remove the AC cord and interface cable. (a) Remove the AC cord in the following sequence: Turn off ("o") the power switch of the printer. Disconnect the AC inlet plug of the AC cord from the AC receptacle.
Page 47 The tools required for field replacement of printed circuit boards, assemblies and units are listed in Table 3-1. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 48: Parts Replacement
Page: 23 Service Manual - OKIPAGE10i Chapter 3 Parts Replacement This section explains the layout of main components of the equipment. [Lower base unit] Figure 3-1 [Upper cover unit]...
Page 49 [Base unit] Figure 3-3...
Page 51: Operator Panel Assy
Page: 24 Service Manual - OKIPAGE10i Chapter 3 Parts Replacement This section explains how to change parts and assemblies listed in the disassembly diagram below. In the parts replacement procedure, those parts marked with the part number inside (1) with white letters are RSPL parts.
Page 52: Hopping Roller Shaft Assy
3.3.23 Power Supply/Sensor Board and Contact Assy 3.3.24 Cassette Guide L Assy 3.3.25 Cassette Guide R Assy 3.3.26 Spacer Bearing (L/R) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 53 2. When reinstalling the screws (5), be sure to direct the screws into pre-existing threads. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 54 (1) Open the IC card cover (1), press it from both sides at the hinges in the directions of arrows shown below and remove it. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 55 After mounting the new LED head and reinstalling the cable, set drive time of the LED head according to the marking on the LED head (see 4.2.1). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 56 Note: You can remove the operator panel assy while the upper cover installed on the unit. However, it is much easier to remove the panel assy after removal of upper cover. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 57 (6) Open the manual feed guide assy, remove six screws (7), then remove the lower base unit (6). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 58: Pulse Motor (Main/Drum)
(3) Remove two screws (1) and remove the pulse motor (main/drum) (2) from the motor bracket (3). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 59: Pulse Motor (Registration)
(3) Remove two screws (1) and remove the pulse motor (registration) (2) from the motor bracket (3). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 60 (4). Remove both the shield plate (3) and face up stacker (4) together. (4) Unlock the latches at two locations, and remove the face up stacker (4). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 61 (1) in the direction of the arrow shown below, and remove the eject roller assy (1). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 62 (5) Stand the lower base unit on its side as shown, and unlock two latches, then remove the motor assy (1). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 63 Page: 35 Service Manual - OKIPAGE10i Chapter 3 Parts Replacement (1) Remove the upper cover assy (see 3.3.1). (2) Remove the operator panel assy (see 3.3.4). (3) Remove the face up stacker assy (see 3.3.8). (4) Remove the lower base unit (see 3.3.5). (5) Remove the motor assy (see 3.3.10).
Page 65 C while pressing down the shaft of back up roller, and engage the reset lever L (4). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 66 (2) and the bearing (registration) (3). (8) Pull out the registration roller (2) in the direction of arrow (B). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 67 (at this time, the bearings (2) of the left and right sides of the roller transfer assy (1) will also come off). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 68 Page: 39 Service Manual - OKIPAGE10i Chapter 3 Parts Replacement (1) Remove the upper cover assy (see 3.3.1). (2) Remove the operator panel assy (see 3.3.4). (3) Remove the face up stacker assy (see 3.3.8). (4) Remove the stacker cover assy (see 3.3.12). (5) Remove four screws (1), lift and remove the fusing unit (2).
Page 70 (2) Lift the left side of the back-up roller (1), and pull it out to the left side (at this time, two bushings (back-up) (2) and the bias springs (back-up) (3) will also come off). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 71 (5) Press the clamps of three sensor plates (inlet and paper) (1), and remove them by pressing them upward from the bottom. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 72: Sensor Plate (Outlet)
(7) Press the clamps of the sensor plate (outlet) (1), and remove the sensor plate by pushing it up. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 73 (1). Note: When remounting, verify the proper the engagements as shown in the diagram. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 74: Sensor Plate (Paper Supply)
(5) Press the clamps of the sensor plate (paper supply) (1) to unlock the latch, and remove it from the base plate (2). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 75 Page: 45 Service Manual - OKIPAGE10i Chapter 3 Parts Replacement (1) Remove the upper cover assy (see 3.3.1). (2) Remove the operator panel assy (see 3.3.4). (3) Remove the face up stacker assy (see 3.3.8). (4) Remove the lower base unit (see 3.3.5). (5) Remove the connector (2NDTRAY) (6).
Page 77 Note: When reinstalling the transformer, be sure to lay the AC and transformer's primary side cables under the divider (see view A diagram below). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 78 Page: 47 Service Manual - OKIPAGE10i Chapter 3 Parts Replacement (1) Remove the upper cover assy (see 3.3.1). (2) Remove the lower base unit (see 3.3.5). (3) Remove the M5B-PCB (see 3.3.21). (4) Remove the transformer (see 3.3.22). (5) Remove the AC inlet (1) from the base plate (2). (6) Remove the screw (3) and remove the grounding (earth) wire (4).
Page 80 Page: 48 Service Manual - OKIPAGE10i Chapter 3 Parts Replacement (1) Remove the paper cassette. (2) Remove the upper cover assy (see 3.3.1). (3) Remove the lower base unit (see 3.3.5). (4) Remove the M5B-PCB (see 3.3.21). (5) Remove the transformer (see 3.3.22). (6) Remove the power supply/sensor board (see 3.3.23).
Page 82 Page: 49 Service Manual - OKIPAGE10i Chapter 3 Parts Replacement (1) Remove the paper cassette. (2) Remove the upper cover assy (see 3.3.1). (3) Remove the lower base unit (see 3.3.5). (4) Remove the M5B-PCB (see 3.3.21). (5) Remove two screws (1), and remove the guide rails (2). (6) Remove the screw (3), and remove the cassette guide R (4) by shifting it in the direction of arrow.
Page 84 (1) Remove the back-up roller (see 3.3.16). (2) Remove spacer bearing (L/R) with a tip of screw driver. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 85: Adjustment
Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 86: User Maintenance Mode
4.1.1 User Maintenance Mode 4.1.2 System Maintenance Mode 4.1.3 Engine Maintenance Mode 4.1.4 EEPROM Initialization Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 87 X-adjust / Y-adjust Detailed descriptions of these functions are provided in Appendix D, DIAGNOSTICS TEST. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 88: System Maintenance Mode
Rolling ASCII continues printing Detailed descriptions of these functions are provided in Appendix D, DIAGNOSTICS TEST. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 89: Engine Maintenance Mode
Page: 55 Service Manual - OKIPAGE10i Chapter 4 Adjustment Note: This mode is used only by maintenance personnel, and it should not be released to the end users. (1) To enter into the engine maintenance mode, turn the power on while holding ENTER and FORM FEED keys down.
Page 90 Note: "Printing start position setting" is for shipping. Do not change its default value. Detailed descriptions of these functions are provided in Appendix D, DIAGNOSTICS TEST. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 91 The corresponding are of the EEPROM is initialized for each event as shown in Table 4-1. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 92 Reset the image drum counter (refer to User's manual) Main Control Board EEPROM data Upload / Download Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 93: Setting Of Led Head Drive Time
Page: 58 Service Manual - OKIPAGE10i Chapter 4 Adjustment Note: When the luminous intensity marking of the replacement LED head (new part) is same as that of the removed LED head (old part), do not reset the LED head drive time. Luminous Intensity Marking Label Setting of LED Head Drive Time Drive time of the LED head is set by setting the parameter of drive time of EEPROM according to the...
Page 94 Example: Method for setting the parameter to 19 (for a case where the previous parameter setting was 8). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 95 The maintenance utility is designed to be used only by field engineer and it should not be released to the end-users. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 96: Periodical Maintenance
Image drum cartridge About 20,000 sheets of paper Consumables (Type 5) have been printed. See 1.4 (14) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 97: Cleaning Of Led Lens Array
Note: Do not touch the image drum, LED lens array, or LED head connector block. 5.2.1 Cleaning of LED Lens Array 5.2.2 Cleaning Page Function Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 98 Note: Gently press the LED head cleaner onto the LED lens array. (2) Throw the cleaner pad away. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 99 While this process is going on, the LCD displays "PRINT CLEANING" message. (5) The printer returns to off-line mode. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 100: Troubleshooting Procedures
(3) Inspect the equipment under the conditions close to those in which the problem had occurred. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 101 (3) Is the printing paper normal (acceptable quality)? (4) Is the image drum cartridge being loaded properly? Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 102 (4) Do not expose the image drum to light for longer than 5 minutes at room temperature. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 103 The failure status of the printer is displayed by the liquid crystal display (LCD) of the operator panel. Take proper corrective action as directed by messages which are being displayed on the LCD. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 104 Should there be a problem with the printer, carry out troubleshooting according to the following procedure flow: Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 105 The status and problems which may be displayed by messages on the LCD are listed in Table 6-1. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 106 System Call Extension Brake Point Exception Reserved Instruction Exception Coprocessor Unusable Exception Arithmetic Overflow Exception Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 107 Page: 71 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Category LCD status Problem or status Remedy message Controller An error occurred in the controller. - Turn the power off, then errors back on to recover from the error. - If normal operation is not recovered by this restart procedure, use the following remedial actions.
Page 109 EEPROM from the old board to the new board. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 110 Page: 73 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Category LCD status Problem or status Remedy message Controller Code Error errors (nn) Optional Timeout error - Turn the power off, then back on again. - Replace the main control board.
Page 112 Page: 74 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Category LCD status Problem or status Remedy message Jam errors A jam occurred during paper hopping - Check the paper in the from the tray. cassette. Open and then close the cover. When the tray : TRAY1, TRAY2, FEEDER, cover is closed recovery MANUAL...
Page 114 Page: 75 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Category LCD status Problem or status Remedy message Size error Manual loading of paper indicated by the Load the requested paper (continued) first line message is requested. The in the manual tray. paper size is one of the following: LETTER, EXECUTV LEGAL 14, LEGAL 13, A4 SIZE, A5 SIZE, A6 SIZE, B5...
Page 116 This message is displayed after the turning on of the LEDs as described above. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 117 This message is displayed when the printer is performing the cleaning print. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 118 This message is displayed together with supply/sensor board. another message on the first line. Normal operation can be continued. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 120: 2) Jam Alarm
(High Capacity Second Paper Feeder, Power Envelope Feeder). Fan error Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 121 Page: 81 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures...
Page 123 Page: 82 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures...
Page 126 Page: 83 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 127 Page: 84 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 128: Error
6.5.2 (5) Synchronous serial I/O error (ERROR 74) or I/F timeout between printer and optional tray (ERROR 81) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 129 Page: 86 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 130: 1) Images Are Light Or Blurred Entirely
White vertical belts or streaks (Figure 6-3 F) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 131 Page: 88 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures...
Page 132 Figure 6-5 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 133 Page: 89 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Figure 6-4 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 134 Page: 90 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 135 Page: 91 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 136 MENU key, and reset the drum counter (see Printer Handbook). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 137 Page: 93 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures Figure 6-4...
Page 138 Figure 6-5 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 139 Poor fusing (images are blurred or peels off when the printed characters and images on the paper are touched by hand) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 140 Page: 95 Service Manual - OKIPAGE10i Chapter 6 Troubleshooting Procedures...
Page 141 Figure 6-5 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 142: Wiring Diagram
Page: 96 Service Manual - OKIPAGE10i Chapter 7 Wiring Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 143 Page: 97 Service Manual - OKIPAGE10i Chapter 7 Wiring Diagram (1) Main Control Boar (M5B-PCB) (2) Power Supply/Sensor Board...
Page 144 FAN Connector Pin Assignment - (To fan motor) Drum Motor Connector Pin Assignment - (To main/drum motor) Excitation sequence RM Connector Pin Assignment - (To registration motor)
Page 145 Excitation sequence Head1 Connector Pin Assignment - (To LED head) Head2 Connector Pin Assignment - (To LED Head)
Page 146 PANEL Connector Pin Assignment - (To operator panel) 2ND Tray Connector Pin Assignment - (To option feeder I/F) POWER Connector Pin Assignment - (To power supply/sensor board)
Page 147 Pin No. I/O* Signal Description STROBE-N Strobe DATA1-P Data bit 0 DATA2-P Data bit 1 DATA3-P Data bit 2 DATA4-P Data bit 3 DATA5-P Data bit 4 DATA6-P Data bit 5 DATA7-P Data bit 6 DATA8-P Data bit 7 ACK-N Acknowledge BUSY-P Busy...
Page 148 +30V Motor and fan drive voltage and source voltage for high voltage supply HEATON-N Heater on RS232C line voltage and PS board supply voltage RS232C line voltage TRSEL3-N TR control switch SQCR-N Sequence clear signal of serial I/F SCLK-N Clock signal of serial I/F PSIN1 Paper sense WRSNS...
Page 149 Address bit 18 Logic power supply Address bit 19 Address bit 20 Logic ground Address bit 21 Address bit 22 Address bit 23 Logic ground Logic ground Logic ground RSRTSO-N RS232C request to send CS1-N ROM/SRAM select 1 CS2-N ROM/SRAM select 2 CS3-N ROM/SRAM select 3 SCRREQ-P...
Page 150 EEPRMCLK-P EEPROM clock SSTXD-P EEPROM data DRDY-N Data read RS232C line voltage RESET-N Reset signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 151 Page: 98 Service Manual - OKIPAGE10i Chapter 7 Wiring Diagram Unit Circuit Diagram Illustration Resistance Registra- Between Pins 1 tion and 2: 18.6 motor Ohms Between Pins 3 and 4: 18.6 Ohms Main/dru Between Pins 1 m motor and 2: 2.9 Ohms Between Pins 3 and 4: 2.9 Ohms Fusing...
Page 153: Short Plug Setting
+5 V is not supplied to Pin 18 Centronics parallel I/F connector. Pin 18 is High Level output. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 154: Parts List
Page: 100 Service Manual - OKIPAGE10i Chapter 8 Parts List Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 155 Page: 101 Service Manual - OKIPAGE10i Chapter 8 Parts List No. Name/Rating Part # Remarks ODA Part No. Hopping roller shaft 3PP4083-6020P1 51112301 Bearing 4PP4083-6022P2 51607402 Gear: One-way clutch 4PB4083-6024P1 51228901 Roller: Registration 3PB4083-6030P1 53342501 Bearing: Registration roller 4PP4083-6031P1 40437801 Roller-Transfer (B) Assy 40437801 Bear TR...
Page 156 Washer C 4PP4120-1210P1 50517201 Washer B 4PP4120-1209P1 50517001 Spacer: Bearing R 40392801 Spacer: Bearing-R 40392801 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 157 Page: 102 Service Manual - OKIPAGE10i Chapter 8 Parts List Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 158 ODA Part No. Cover: Upper 1PP4128-113P1 53070301 Cover: IC card 2PP4128-1155P1 53069301 Cover: Lid 40104801 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 159 Page: 104 Service Manual - OKIPAGE10i Chapter 8 Parts List Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 160 Link: Sheet (R) Plate: FG C Plate: FG D Cable: 2nd tray connector Plate: Guide (PCB) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 161: Rs-232C Serial Interface (Option)
Page: 106 Service Manual - OKIPAGE10i Chapter A RS-232C Serial Interface (Option) 1) Connector Printer side : 25-pin receptacle Type DB-25S (made by Canon) or equivalent Cable side : 25-pin plug Type DB-25S (made by Canon) Shell Type DB-C8-J10-F2-1 (made by Nihon Kouku Denshi) or equivalent Note: Plug shall be fixable with a lock screw.
Page 162 When the Ready/Busy protocol is used for the buffer busy control method, the busy signal can be set to Pin-20 (DTR) in the menu. 4) Signal Level MARK polarity: -3V to -15V (LOGIC =1) SPACE polarity: +3V to +15V (LOGIC = 0) 5) Interface Circuit a) Receiving Circuit b) Sending Circuit...
Page 165: Centronics Parallel Interface
Page: 107 Service Manual - OKIPAGE10i Chapter B Centronics Parallel Interface 1) Connector Printer side : 36-pin receptacle (single port) Type 57RE-40360-7 30B-D29A (made by Daiichi Denshi), CN-AX05841A36AT (made by Ougat) or equivalent Cable side : 36-pin plug Type 57-30360 (made by Daiichi Denshi) or equivalent Plug-552274-1 (AMP), 552073-1 (AMP) or equivalent 2) Cable Cable length :...
Page 166 Connector pin arrangement 4) Signal Level LOW : 0 V to +0.8 V HIGH : +2.4 V to 5.0 V 5) Specifications Item Description Mode Compatibility mode, Nibble mode, ECP mode Data bit length 8 bits (in the compatibility mode) Input prime Valid/Invalid Receive buffer...
Page 167 6) Timing Charts Data receiving timing 7) Interface Parameter Setting The following settings are possible by pressing the ENTER key, after selecting the display contents of the LCD of the operator panel by using the and keys. Settings are retained even when the printer power is turned off. By pressing the ON LINE key, menu setting mode is completed and the printer returns to on-line state.
Page 170: Loop Test (Rs-232C Interface)
The codes transmitted from the TD signals are comparatively checked with the data received from the RD signals. If any error occurs, the error message is displayed on the LCD. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 171 To exit from any of these modes during a category display, press the Recover or ON LINE key and the operation mode will start. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 172 Page: 110 Service Manual - OKIPAGE10i Chapter D Diagnostics Test To enter the user maintenance mode, turn the power on while keeping the MENU key pressed down. This mode uses the menu for function selection. The user maintenance mode provides the following functions: (1) Hex Dump The data received from the host (higher position) is dumped in hexadecimal notation to the printer.
Page 174: System Maintenance Mode
Page: 111 Service Manual - OKIPAGE10i Chapter D Diagnostics Test To enter the system maintenance mode, turn the power on while keeping the Recover key pressed down. This mode adopts the menu for function selection. The system maintenance mode provides the following functions: (1) Page Count Display The total number of pages counted at the engine block is displayed on the LCD.
Page 175 updating the last category, in a loop. (6) System Maintenance Mode Menu System...
Page 177: Engine Maintenance Mode
Page: 112 Service Manual - OKIPAGE10i Chapter D Diagnostics Test The engine maintenance mode is activated when the power is turned ON while keeping the FORM FEED key and ENTER key pressed down. This mode adopts the menu for function selection. The method for exit from this mode depends on the setting.
Page 178 Engine maintenance mode menu system Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 179: E Multi-Purpose Feeder Maintenance
Multi-Purpose Feeder option of OKIPAGE 10i Series LED Page Printer. Refer to the Printer Handbook for equipment handling and operation methods. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 180: Functions
Service Manual - OKIPAGE10i Chapter E Multi-Purpose Feeder Maintenance 1.1 Functions 1.2 External View and Component Names Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 181 * When using sheets which exceed 24-lb, make sure that the paper exits through the face-up route. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 182 Page: 116 Service Manual - OKIPAGE10i Chapter E Multi-Purpose Feeder Maintenance Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 183: General Mechanism
Service Manual - OKIPAGE10i Chapter E Multi-Purpose Feeder Maintenance 2.1 General Mechanism 2.2 Hopper Mechanism Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 184 Once delivered into the printer, the envelope or paper is then controlled and fed through by pulse motor (registration) of the printer. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 186: Parts Replacements
3.1 Precautions Concerning Parts Replacement 3.2 Parts Layout 3.3 Parts Replacement Method Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 187 (7) When handling printed circuit boards, do not use any glove which may generate static electricity. (8) Do not place the printed circuit boards directly on the equipment or floor. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 188 Service Manual - OKIPAGE10i Chapter E Multi-Purpose Feeder Maintenance This section describes the layout of the main components. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 189: Parts Replacement Method
Multi-Purpose Feeder Link (3.3.1) Separator (3.3.2) OLEV-11-PCB (3.3.3) Pulse motor (3.3.4) Planet gear (3.3.5) Roller-A (3.3.6) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 190: Link
(3) Disengage the link (3) from the arm (4), and remove it. * Be careful not to deform the link and arm. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 191: Separator
(be careful not to lose the spring (8) when you are doing this). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 192: Olev-11-Pcb
When reinstalling the printed circuit board, be careful to make sure that the sensor plate is being set correctly. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 193: Pulse Motor
(2) Remove the OLEV-11-PCB (see 3.3.3). (3) Remove (2) screws (1), and remove the pulse motor (2). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 194: Planet Gear
(3) Remove (2) screws (1), and remove the motor bracket assembly (2) and planet gear (3). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 195: Roller-A
(6) Shift the roller-A (2) to the right, lift it on its left side and slide it out (the bearing (3) also comes off while you are doing this, so be careful not to lose it). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 196: Troubleshooting
Chapter E Multi-Purpose Feeder Maintenance 4.1 Precautions Prior to the Troubleshooting 4.2 Preparations for the Troubleshooting 4.3 Troubleshooting Method Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 197 (3) Go through checking in the conditions similar to that in which the problem occurred. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 198 The status of the problem is displayed on the LCD (Liquid Crystal Display) on the operator panel. Go through the appropriate troubleshooting procedures according to the messages displayed on the LCD. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 199 Chapter E Multi-Purpose Feeder Maintenance When a problem occurs, go through the troubleshooting according to the following procedure. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 200 Page: 134 Service Manual - OKIPAGE10i Chapter E Multi-Purpose Feeder Maintenance The listing of the statuses and problems displayed in the form of messages on the LCD is provided in Table 4-1.
Page 202: Interconnection Diagram
Service Manual - OKIPAGE10i Chapter E Multi-Purpose Feeder Maintenance 5.1 Interconnection Diagram 5.2 PCB Layout Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 203 Page: 136 Service Manual - OKIPAGE10i Chapter E Multi-Purpose Feeder Maintenance Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 204 Page: 137 Service Manual - OKIPAGE10i Chapter E Multi-Purpose Feeder Maintenance Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 205 3PB4083-5514P1 Roller-B 3PB4083-5524P1 Planet gear 4PP4083-5520P1 Link 3PP4083-5540P1 Separator 4PP4083-5544G1 Pulse motor 4PB4083-6075P1 same as printer unit. OLEV-11-PCB 4YA4121-1014G1 Connector cable 3YS4011-3141P3 Separator assy 3PA4083-5549G1 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business...
Page 206 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 207 This Maintenance Manual is intended for the maintenance personnel and describes the field maintenance methods for High Capacity Second Paper Feeder option of OKIPAGE 10i Series LED Page Printer. Refer to the Printer Handbook for equipment handling and operation methods.
Page 208 Chapter F High Capacity Second Paper Feeder M/M 1.1 Functions 1.2 External View and Component Names Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 209 16-lb to 24-lb (60 to 90 g/m Paper setting quantity: 500 sheets of paper weighing 64 g/m Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 210 Page: 142 Service Manual - OKIPAGE10i Chapter F High Capacity Second Paper Feeder M/M Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 211 Service Manual - OKIPAGE10i Chapter F High Capacity Second Paper Feeder M/M 2.1 General Mechanism 2.2 Hopper Mechanism Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 212 Once delivered into the printer, the paper is then controlled and fed through by pulse motor (registration) of the printer. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 213 Page: 145 Service Manual - OKIPAGE10i Chapter F High Capacity Second Paper Feeder M/M Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 214 3.1 Precautions Concerning Parts Replacement 3.2 Parts Layout Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 215 (7) When handling printed circuit boards, do not use any glove which may generate static electricity. (8) Do not place the printed circuit boards directly on the equipment or floor. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 216 Chapter F High Capacity Second Paper Feeder M/M This section describes the layout of the main components. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 217 Stepping motor (hopping) (3.3.1) TSQN-2 PCB (3.3.2) Hopping roller shaft assy and One-way clutch gear (3.3.3). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 218 Page: 150 Service Manual - OKIPAGE10i Chapter F High Capacity Second Paper Feeder M/M (1) Turn the printer power switch off, pull out the AC cord from the outlet. Remove the printer off High Capacity Second Paper Feeder. (2) Take the paper cassette assy (1) out of High Capacity Second Paper Feeder. (3) Remove six screws (2) and remove the upper plate (3).
Page 219 Stepping Motor (23). (10) Remove two screws (24) on the Stepping Motor (23). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 220 (3) Remove the screw (27) and remove the TQSB-2 PCB (26). Note: Refer to Detail A in the previous section of this chapter (see 3.3.1). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 221 (10). Note: The metal bush (13) also comes off. Be careful not to lose it. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 222: Lcd Status Message List
4.1 Precautions Prior to the Troubleshooting 4.2 Preparations for the Troubleshooting 4.3 Troubleshooting Method 4.3.1 LCD Status Message List Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 223 (3) Go through checking in the conditions similar to that in which the problem occurred. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 224 The status of the problem is displayed on the LCD (Liquid Crystal Display) on the Operator panel. Go through the appropriate troubleshooting procedures according to the messages displayed on the LCD. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 225 Chapter F High Capacity Second Paper Feeder M/M When a problem occurs, go through the troubleshooting according to the following procedure. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 226 Page: 157 Service Manual - OKIPAGE10i Chapter F High Capacity Second Paper Feeder M/M Classification LCD Status Message Description Recovery method Jam error Notifies of occurrence of - Check the paper in the High (feeding) jam while the paper is Capacity Second Paper being feed from High Feeder.
Page 228: Interconnection Diagram
Service Manual - OKIPAGE10i Chapter F High Capacity Second Paper Feeder M/M 5.1 Interconnection Diagram 5.2 PCB Layout Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 229 Page: 159 Service Manual - OKIPAGE10i Chapter F High Capacity Second Paper Feeder M/M Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 230 Page: 160 Service Manual - OKIPAGE10i Chapter F High Capacity Second Paper Feeder M/M TQSB-2 PCB Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 231: High Capacity Second Paper Feeder
Chapter F High Capacity Second Paper Feeder M/M High Capacity Second Paper Feeder 2nd Tray Assembly Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 232 One-way clutch gear 4PB4122-1382P1 Stepping motor 3PB4122-1399P1 TQSB-2 PCB 4YA4046-1651G2 Cassette assy (2nd tray) 1PA4122-1362G4 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 233 Page: 163 Service Manual - OKIPAGE10i Chapter F High Capacity Second Paper Feeder M/M...
Page 235 Description OKI Part No. Qty/U 1000 Plate, upper 1PP4122-1401P001 Sheet guide assembly 3PA4122-1370G001 Front cover assembly 1PA4122-1369G001 Inner guide assembly 3PA4122-1371G001 Cassette assembly (2nd tray) 1PA4122-1362G004 Separation frame assembly 4PP4120-1009G001 Cover, rear 1PA4122-1323P001 Stick finger 4PB4122-1441P001 Hopping flame assembly 1PA4122-1366G001 Bush, metal (ADF) 4PP3522-3568P001 Gear (z70)
Page 236 TQSB-2 PCB 4YA4046-1651G002 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 237: Network Interface (Option)
Page: 164 Service Manual - OKIPAGE10i Chapter G Network Interface (Option) 1) Connector 8-pin modular jack 2) Cable 10BASE/T 3) Signal Contact No. Plug Jack Polarity Power feeder3 Power feeder3 Send Receive Receive Send Receive Send Send Receive Power feeder2 Power feeder2 Power feeder2 Power feeder2...
Page 238 6) List of protocols Data link layer Ethernet(DIX), IEEE802.3, IEEE802.2, SNAP Network layer IP, ARP, RARP, ICMP, IPX, DDP, AARP, DHCP Transport layer TCP, UDP, SPX, PXP,(NCP), ATP, NBP, RTMP Session layer LPR, FTP, Telnet, HTTP, SNMP, Q-Server, R-Printer, SAP, PAP, ZIP (Automatic recognition possible for all layers) 7) TCP/IP a) Support OS...
Page 239 Specify the number of Name of the data file to be printed. volumes by -# option. The number of character strings of this command values according to the number of volumes. (Not supported). Specify by default. Name of the file to be deleted with completion of printing.
Page 240 Registered printer 0 for all For four printers Indicates the number inside the connected number printer server. Registered printer OKIDATA 1 to 48 Indicates the printer name. The printer name [three characters name can be registered up to a maximum least of 48 characters.
Page 241 Each queue name can be registered up to a string *Maximum maximum of 48 characters. characters Registered print OKIDATA 1 to 48 Indicates the printer server name. Each file server name [three least characters server uses the registered file server name.
Page 242: Functions
9) EtherTalk a) Support OS System7.0, 7.1, 7.1.X System7.5, 7.5.1, 7.5.2, 7.5.3, 7.5.5 MAC OS7.6 b) PAP The PAP is an application to process the print data. Factory Setup range Description Item default Number of 1 client 1 client Indicates the number of clients which can connected clients be connected simultaneously.
Page 243: Troubleshooting
Number of connections for simultaneous use of management APs (Telnet, SMP, Web, OKI Original Port) Number of connections for simultaneous use of printing APs 12) Setup Each setup item can be set by the menu and network management tool. Classification Setup item Menu Management tool...
Page 244 b) Checking STATUS CODE/SUB STATUS CODE If a communication error occurs in sending/receiving in this Network card, the LCD panel will display "HOST I/F ERROR". In this case, check the error status in the following procedure for handling. Also, When each function does not perform, Be sure to note this code. (SUB STATUS CODE might include values which indicate other statuses but error.
Page 245 Also, if all 4 areas (4 bytes) have been used, an item of another error which occurs next would not be registered. As the oldest error is generally the main reason in most cases, take note of this value. How to view each SUB STATUS CODE is indicated in the followings. Although SUB STATUS CODE also comprises of 4 bytes, SUB STATUS CODE is 2nd byte.
Page 246 Significant Program error (there is Update of Network Program, problem possibility of program or replacement of printer malfunction or RAM breakage) main PCB Status Error type Contents Handling code status Significant Program error (there is Update of Network Program, problem possibility of program or replacement of printer malfunction or RAM breakage)
Page 247 Status Error type Contents Handling code status 06, -32 Significant Program error (there is Update of Network Program, problem possibility of program or replacement of printer malfunction or RAM breakage) main PCB Web server Status Error type Contents Handling code status 13, -1C Significant Program error (there is...
Page 248 Update of Network Program, problem possibility of program or replacement of printer malfunction or RAM breakage) main PCB Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

This manual is also suitable for:

Okipage 10i/n

Oki OKIPAGE 10i Service Manual

2 Operation Description

3 Parts Replacement

4 Adjustment

5 Periodical Maintenance

6 Troubleshooting Procedures

7 Wiring Diagram

8 Parts List

100 C Loop Test (RS-232C Interface)

500 D Diagnostics Test

E Multi-Purpose Feeder Maintenance

Quick Links

Troubleshooting

Related Manuals for Oki OKIPAGE 10i

Summary of Contents for Oki OKIPAGE 10i

This manual is also suitable for:

Table of Contents
