Chapter 10 — Maintaining the Printer
94

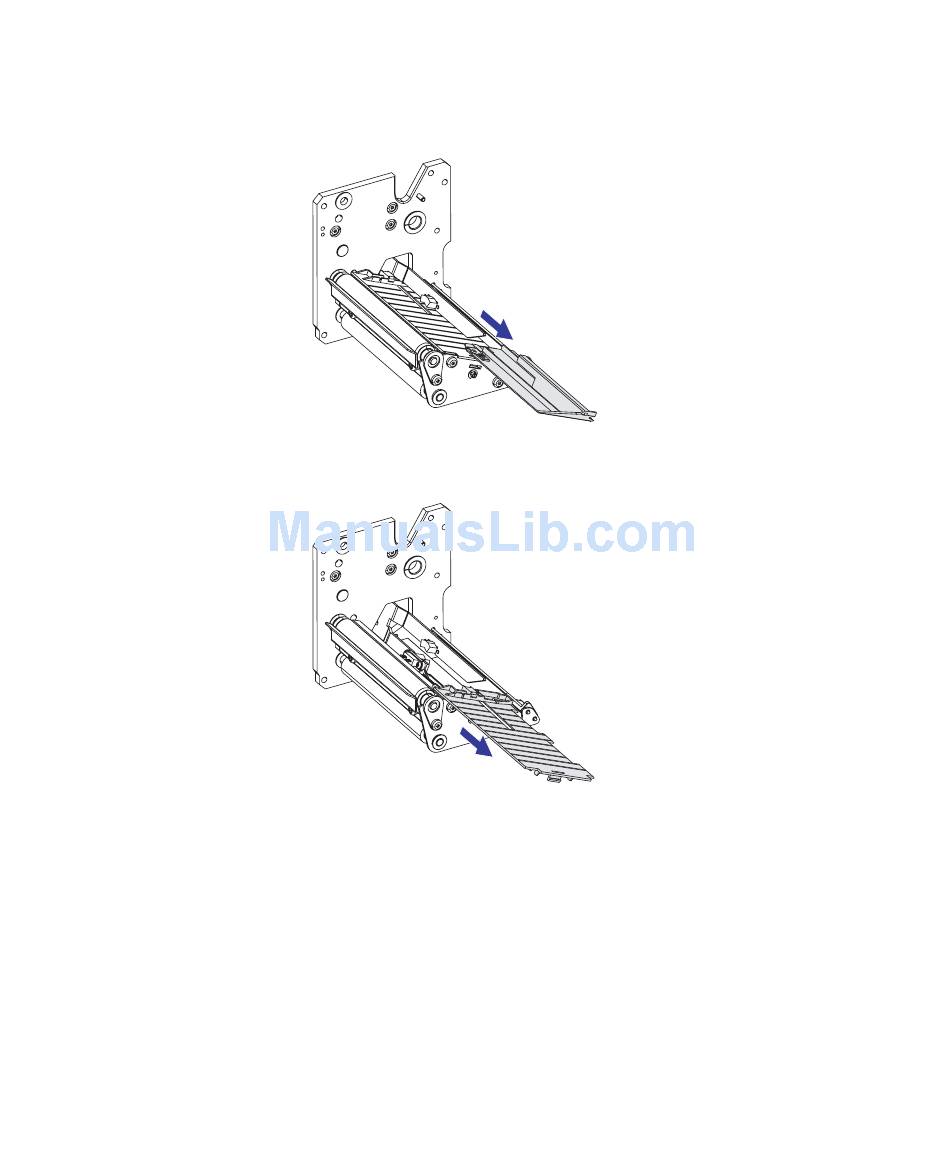

To clean the Label Stop Sensor
1 Pull the upper guide straight out. (Upper part of print unit
omitted for better view.)
2 Press the snap-lock, lift the outer end of the lower guide and
pull it out. After cleaning, reassemble in reverse order.
