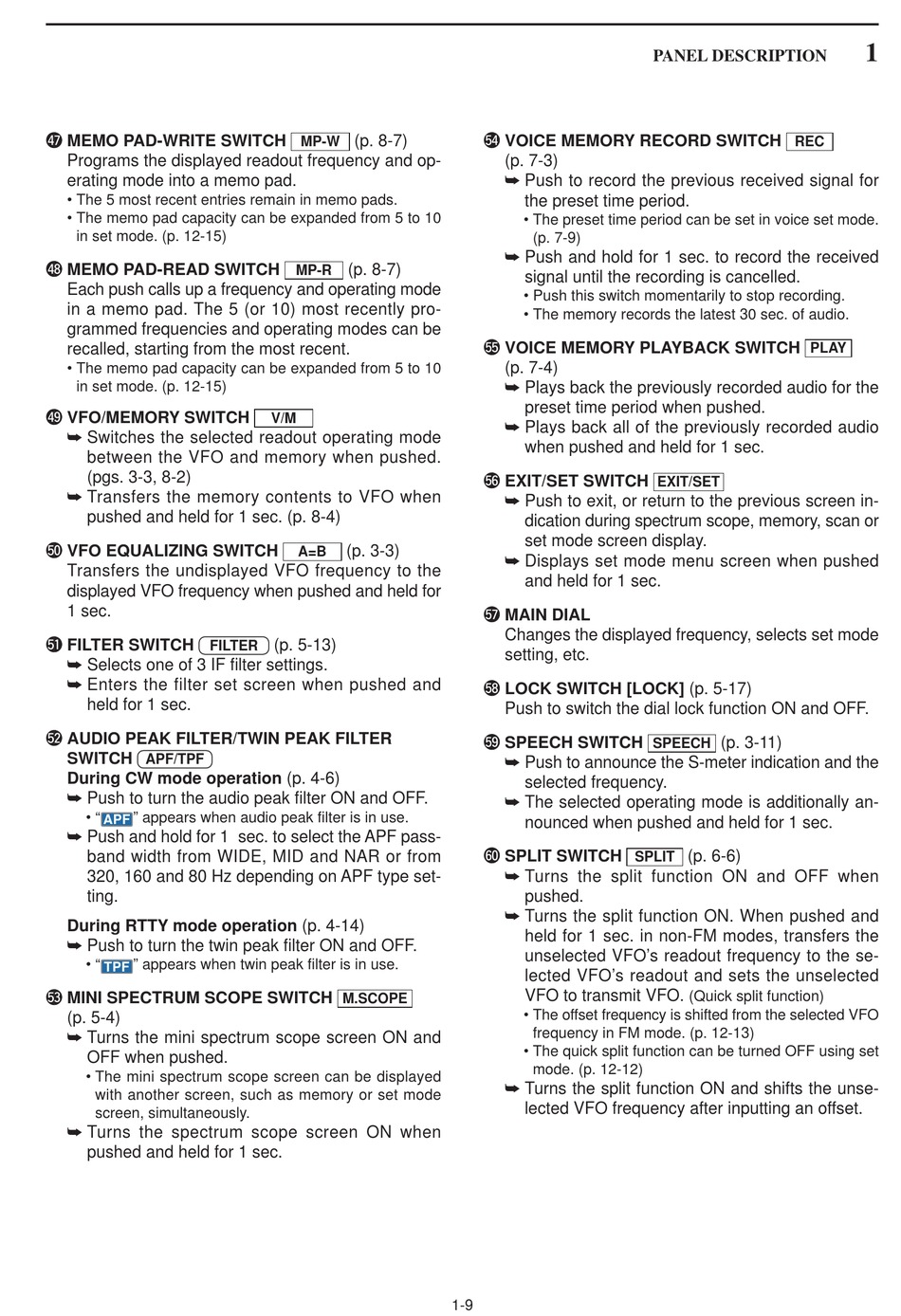

Icom IC-7700 Instruction Manual page 19

$7 MEMO PAD-WRITE SWITCH
Programs the displayed readout frequency and op-
erating mode into a memo pad.
• The 5 most recent entries remain in memo pads.
• The memo pad capacity can be expanded from 5 to 10
in set mode. (p. 12-15)
$8 MEMO PAD-READ SWITCH
Each push calls up a frequency and operating mode
in a memo pad. The 5 (or 10) most recently pro-
grammed frequencies and operating modes can be
recalled, starting from the most recent.
• The memo pad capacity can be expanded from 5 to 10
in set mode. (p. 12-15)
$9 VFO/MEMORY SWITCH
➥ Switches the selected readout operating mode
between the VFO and memory when pushed.
(pgs. 3-3, 8-2)
➥ Transfers the memory contents to VFO when
pushed and held for 1 sec. (p. 8-4)
%0 VFO EQUALIZING SWITCH
Transfers the undisplayed VFO frequency to the
displayed VFO frequency when pushed and held for
1 sec.
%1 FILTER SWITCH
FILTER
➥ Selects one of 3 IF filter settings.
➥ Enters the filter set screen when pushed and
held for 1 sec.
%2 AUDIO PEAK FILTER/TWIN PEAK FILTER
SWITCH
APF/TPF
During CW mode operation (p. 4-6)
➥ Push to turn the audio peak filter ON and OFF.
• " " appears when audio peak filter is in use.
APF
➥ Push and hold for 1 sec. to select the APF pass-
band width from WIDE, MID and NAR or from
320, 160 and 80 Hz depending on APF type set-
ting.
During RTTY mode operation (p. 4-14)
➥ Push to turn the twin peak filter ON and OFF.
• " " appears when twin peak filter is in use.
TPF
%3 MINI SPECTRUM SCOPE SWITCH
(p. 5-4)
➥ Turns the mini spectrum scope screen ON and
OFF when pushed.
• The mini spectrum scope screen can be displayed
with another screen, such as memory or set mode
screen, simultaneously.
➥ Turns the spectrum scope screen ON when
pushed and held for 1 sec.
(p. 8-7)
MP-W
(p. 8-7)
MP-R
V/M
(p. 3-3)
A=B
(p. 5-13)
M.SCOPE
%4 VOICE MEMORY RECORD SWITCH
(p. 7-3)
➥ Push to record the previous received signal for
the preset time period.
• The preset time period can be set in voice set mode.
(p. 7-9)
➥ Push and hold for 1 sec. to record the received
signal until the recording is cancelled.
• Push this switch momentarily to stop recording.
• The memory records the latest 30 sec. of audio.
%5 VOICE MEMORY PLAYBACK SWITCH
(p. 7-4)
➥ Plays back the previously recorded audio for the
preset time period when pushed.
➥ Plays back all of the previously recorded audio
when pushed and held for 1 sec.
%6 EXIT/SET SWITCH
➥ Push to exit, or return to the previous screen in-
dication during spectrum scope, memory, scan or
set mode screen display.
➥ Displays set mode menu screen when pushed
and held for 1 sec.
%7 MAIN DIAL
Changes the displayed frequency, selects set mode
setting, etc.
%8 LOCK SWITCH [LOCK] (p. 5-17)
Push to switch the dial lock function ON and OFF.
%9 SPEECH SWITCH
➥ Push to announce the S-meter indication and the
selected frequency.
➥ The selected operating mode is additionally an-
nounced when pushed and held for 1 sec.
^0 SPLIT SWITCH
➥ Turns the split function ON and OFF when
pushed.
➥ Turns the split function ON. When pushed and
held for 1 sec. in non-FM modes, transfers the
unselected VFO's readout frequency to the se-
lected VFO's readout and sets the unselected
VFO to transmit VFO.
• The offset frequency is shifted from the selected VFO
frequency in FM mode. (p. 12-13)
• The quick split function can be turned OFF using set
mode. (p. 12-12)
➥ Turns the split function ON and shifts the unse-
lected VFO frequency after inputting an offset.
1-9
PANEL DESCRIPTION
REC
EXIT/SET
(p. 3-11)
SPEECH
(p. 6-6)
SPLIT
(Quick split function)
1
PLAY
