Simrad AP50 Autopilot

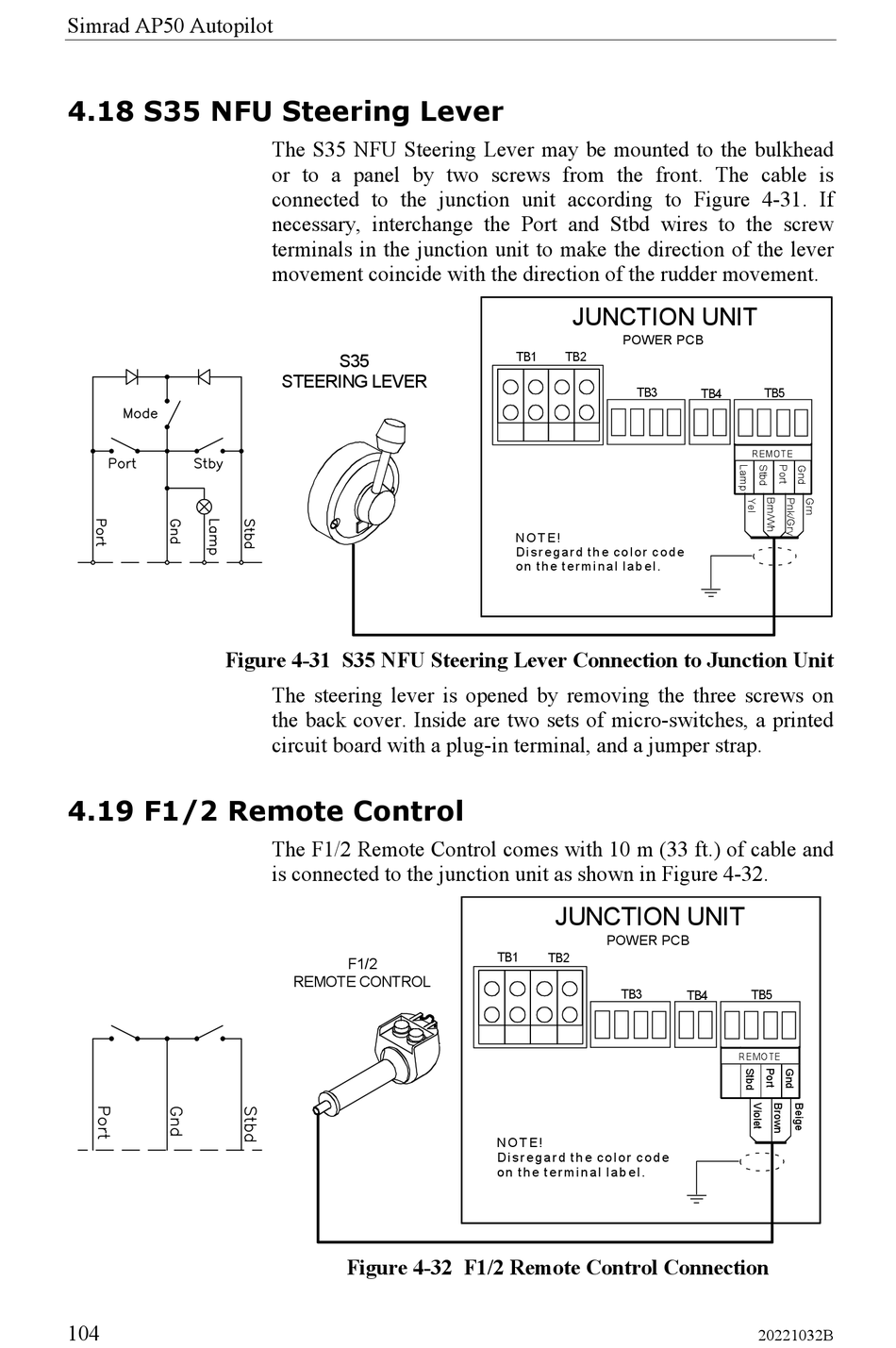

4.18 S35 NFU Steering Lever

Figure 4-31 S35 NFU Steering Lever Connection to Junction Unit

4.19 F1/2 Remote Control

104
The S35 NFU Steering Lever may be mounted to the bulkhead
or to a panel by two screws from the front. The cable is
connected to the junction unit according to Figure 4-31. If
necessary, interchange the Port and Stbd wires to the screw
terminals in the junction unit to make the direction of the lever
movement coincide with the direction of the rudder movement.
S35
STEERING LEVER
The steering lever is opened by removing the three screws on
the back cover. Inside are two sets of micro-switches, a printed
circuit board with a plug-in terminal, and a jumper strap.
The F1/2 Remote Control comes with 10 m (33 ft.) of cable and
is connected to the junction unit as shown in Figure 4-32.
F1/2
REMOTE CONTROL
Figure 4-32 F1/2 Remote Control Connection
JUNCTION UNIT
POWER PCB
TB1
TB2
TB3
N O T E!
D i s r e g a r d t h e co l o r c o d e
o n t h e t e r m i n a l l a b e l .
JUNCTION UNIT
POWER PCB
TB1 TB2
TB3
N O T E!
D i s r e g a r d t h e co l o r c o d e
o n t h e t e r m i n a l l a b e l .
TB4 TB5
R EM O TE
R E M O T E
TB5
TB4
R EM O TE
R E M O T E
20221032B
