3.14 CI300X Compass Interface

Dimensions: ............................................................................................... See Figure 3-13
Weight: ...................................................................................................... 0.9 kg (2.0 lbs.)
Material:....................................................................................... Epoxy-coated aluminum
Environmental Protection:........................................................................................... IP44
Supply and interface .........................................................................RobNet, 2 connectors
Power consumption: .....................................................................................................2 W
Safe distance to magnetic compass: ................................................................ 0.3 m (1 ft.)
Temperature range:
Operation: .............................................................. –25 to +55°C (–13 to +130°F)
Storage: ................................................................... –30 to +80°C (–22 to +176°F)
Mounting: .................................................................................................Bulkhead-mount
Cable inlets: ..................................................Rubber glands for cable diameter 10-14 mm
Gyro compass input:.................... Synchro 1:1 (RGC10/RGC11/RGC50 gyrocompasses)
Heading:.............................................................................Sine/cosine maximum 10 VDC
Magnetic compass ...................................................................................CD100A, CD109
NFU steering lever input: .......................................... Port/starboard potential free contact
External alarm: ..................................................................................Potential free contact
20221032B

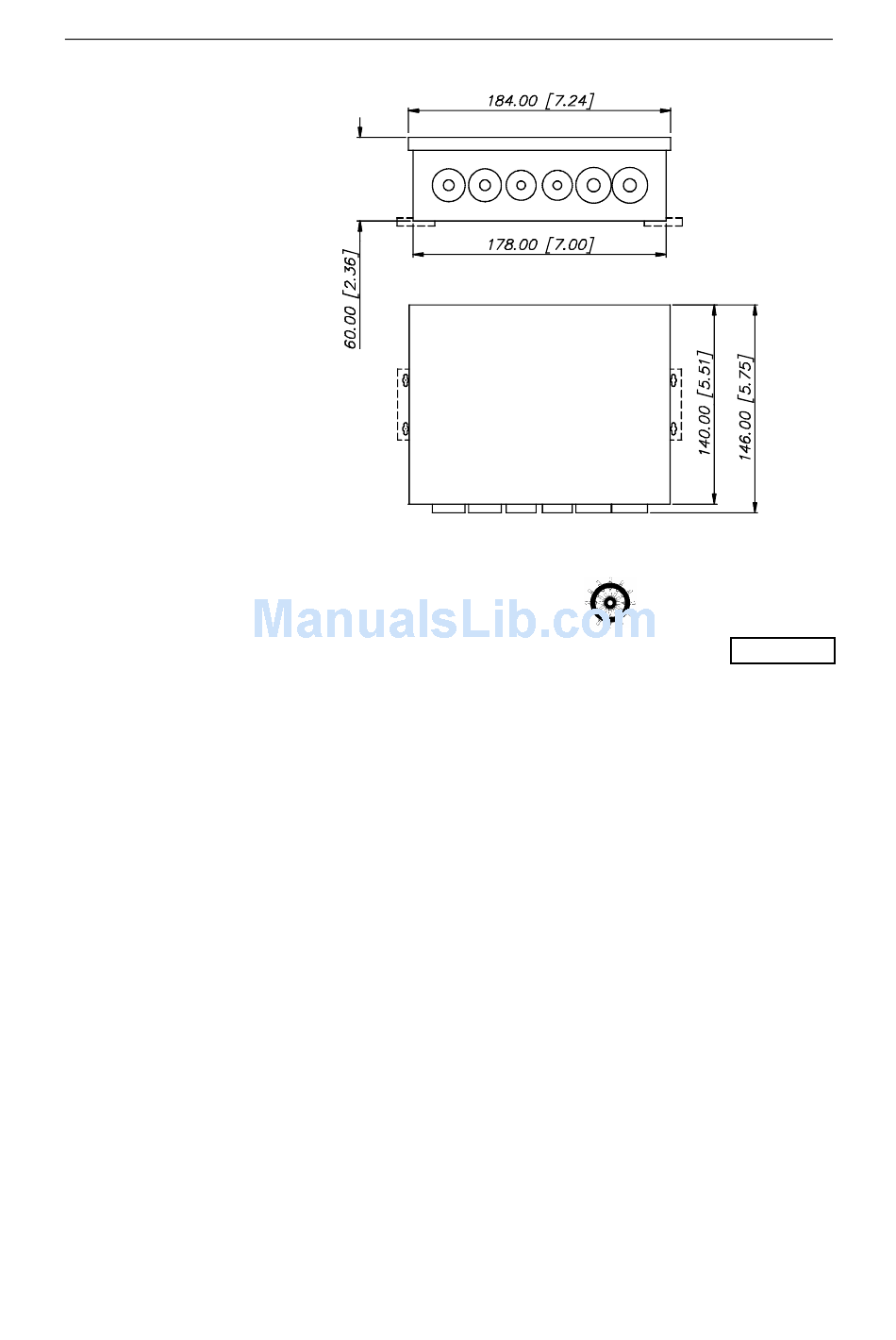

Figure 3-12 GI50 Gyro Interface Dimensions
Technical Specifications
61
