3.21 F1/2 Remote Control

76 (3.0")

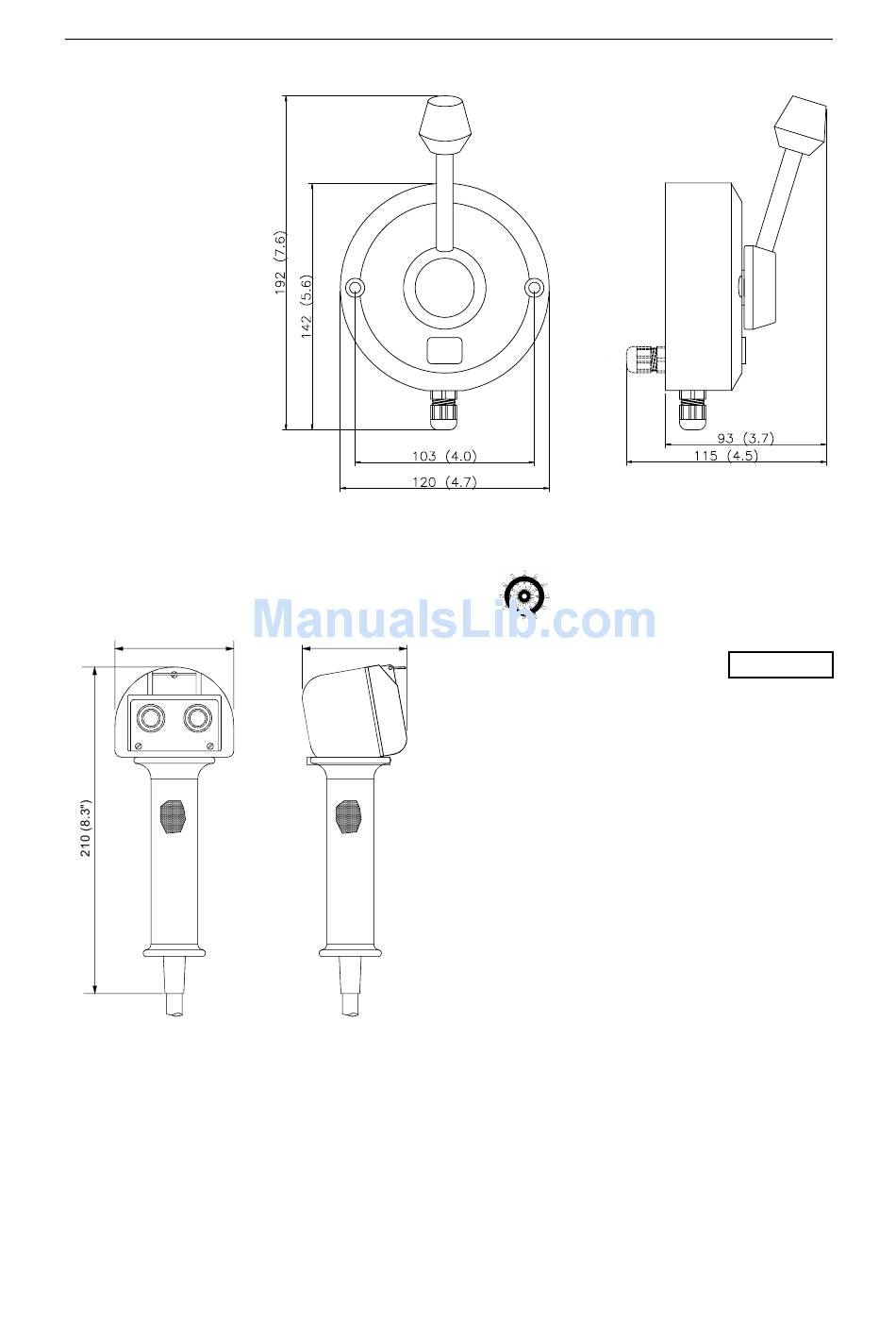

Figure 3-17 F1/2 Remote Control Dimensions
66
Figure 3-16 S35 NFU Steering Lever Dimensions
65 (2.6")
Dimensions:...................... See Figure 3-17
Weight: ............1.2 kg (2.6 lbs.) incl. cable
Material: ....................... Painted aluminum
Environmental Protection:.................. IP56
Safe distance to compass:.... 0.1 m (0.3 ft.)
Max. inductive load: ............. 4A/24 VDC,
Temperature range:
Operating: .......................... –25 to +55°C
Storage:.............................. –30 to +80°C
Cable: .................................... 10 m (33 ft.)
60mA/110 VAC,
25mA/220 VAC.
(–13 to +130°F)
(–22 to +176°F)
