Cdi35 Course Detector Interface - Simrad AP50 Instruction Manual

Simrad AP50 Autopilot
Mounting: ........................................................................ Deck-mount or bulkhead-mount
Cable:...............................................................15 m (49 ft.) RobNet cable with connector
Automatic Performance:
Calibration: ............................................. Automatically activated by control head
Rate sensor stabilized heading output
Accuracy:..................................................................<1.25° rms (after calibration)
Repeatability: ...........................................................................................<0.2° rms
Roll/Pitch: .......................................................................................................± 35°

3.6 CDI35 Course Detector Interface

Dimensions: ................................................................................................. See Figure 3-5
Weight: .............................................................................0.9 kg including cable (2.0 lbs.)
Power consumption: ..................................................................................................0.9 W
Supply and output:..............................................Polarity-independent 2-wire supply with
Environmental Protection:........................................................................................... IP56
Safe distance to compass: ............................................................................. 0.1 m (0.3 ft.)
Material:.............................................................................................................Black ABS
Temperature range:
Operation: .............................................................. –25 to +55°C (–13 to + 130°F)
Storage: ................................................................... –30 to +80°C (–22 to +176°F)
Mounting: ........................................................................ Deck-mount or bulkhead-mount
54

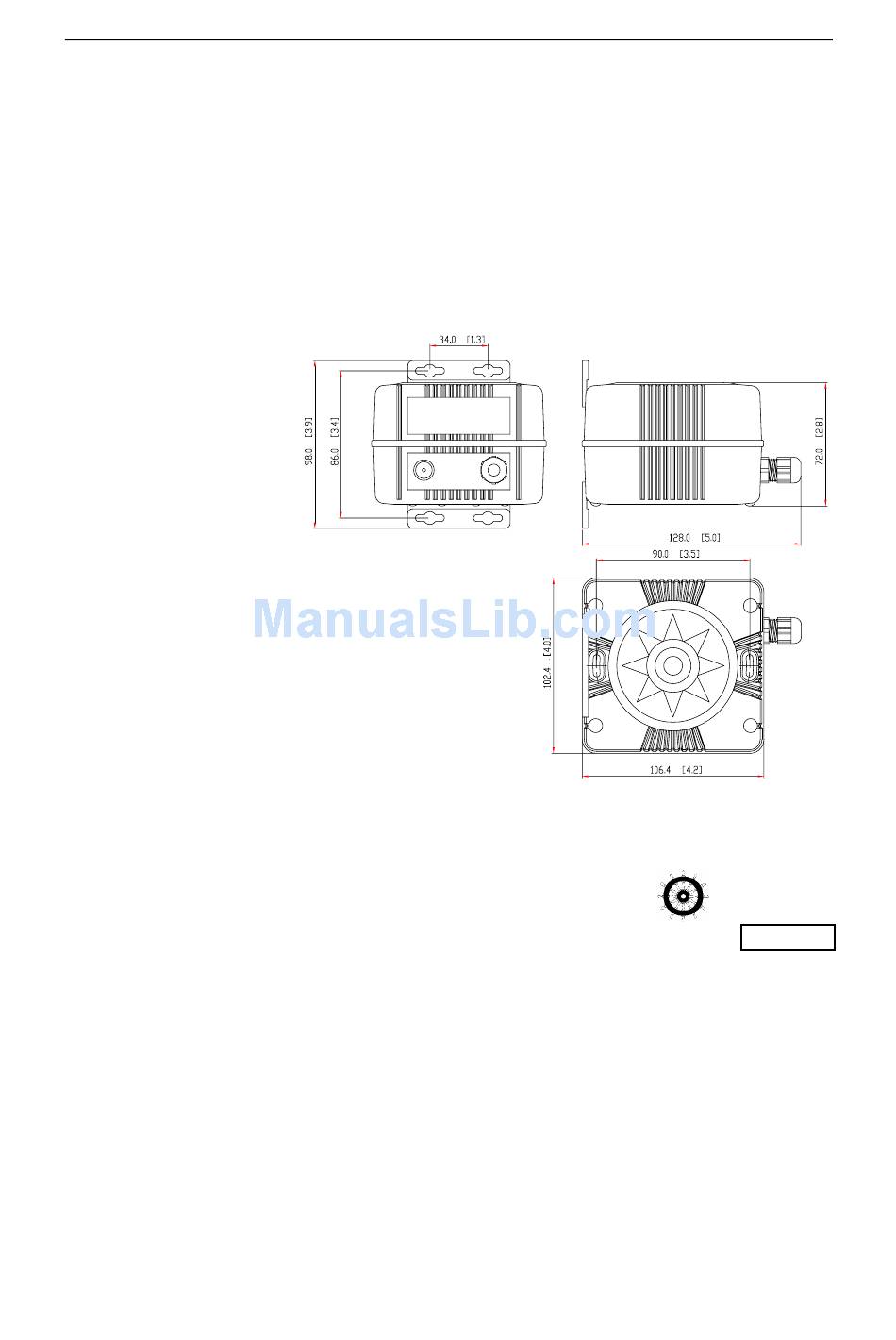

Figure 3-5 RC25/RFC35 Rate Compass and CDI35 Course
Detector Interface Dimensions
superimposed pulse width modulation
20221032B
