4.16 R3000X Remote Control

4.17 S100 NFU Lever Installation

20221032B
The R3000X Remote Control is weather proof and can be
mounted outdoors in the supplied bracket that is fixed by four
mounting screws.
R3000X
REMOTE CONTROL

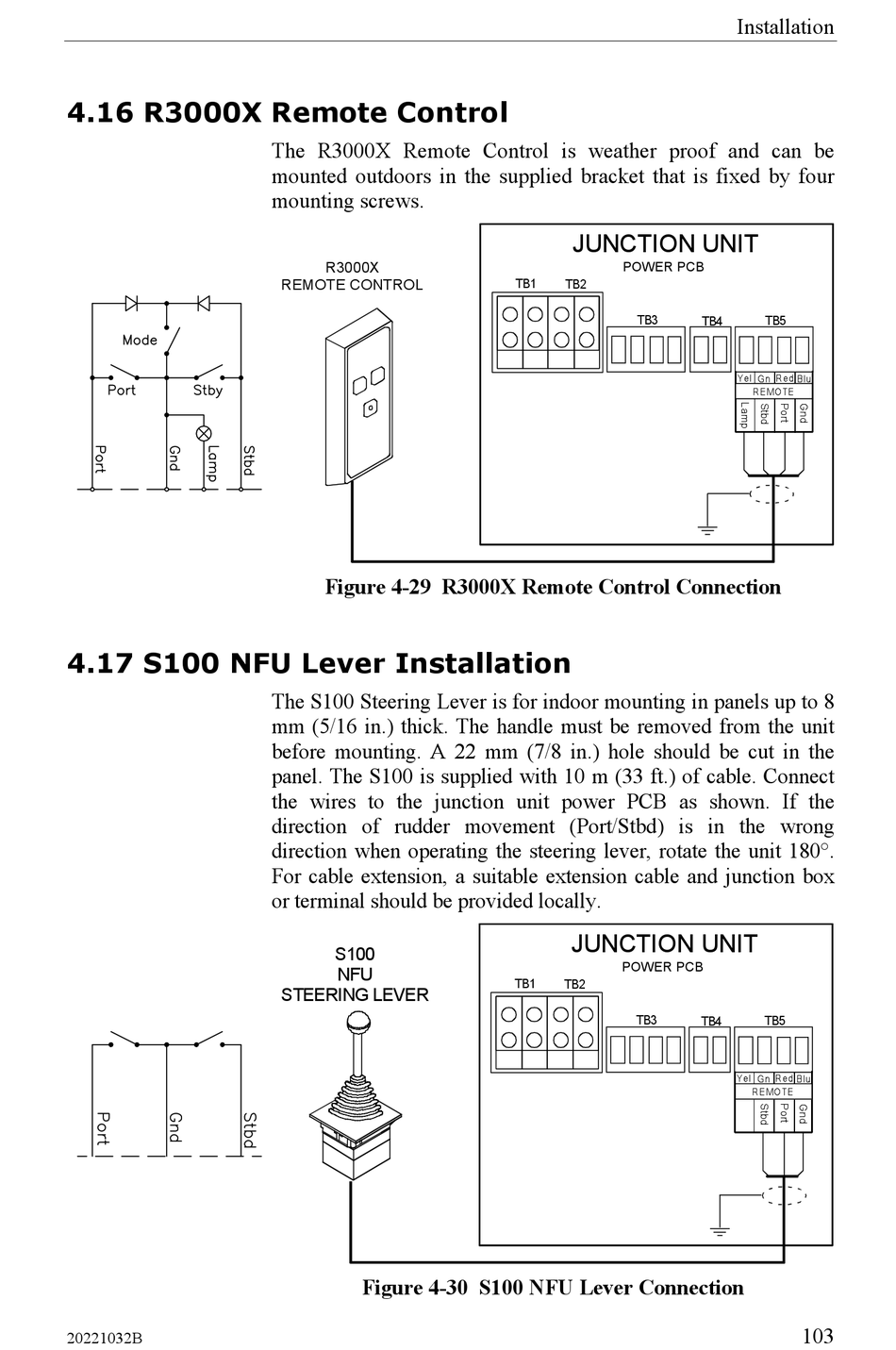

Figure 4-29 R3000X Remote Control Connection
The S100 Steering Lever is for indoor mounting in panels up to 8
mm (5/16 in.) thick. The handle must be removed from the unit
before mounting. A 22 mm (7/8 in.) hole should be cut in the
panel. The S100 is supplied with 10 m (33 ft.) of cable. Connect
the wires to the junction unit power PCB as shown. If the
direction of rudder movement (Port/Stbd) is in the wrong
direction when operating the steering lever, rotate the unit 180°.
For cable extension, a suitable extension cable and junction box
or terminal should be provided locally.
S100
NFU
STEERING LEVER
Figure 4-30 S100 NFU Lever Connection
JUNCTION UNIT
POWER PCB
TB1 TB2
TB3
JUNCTION UNIT
POWER PCB
TB1 TB2
TB3
Installation
TB4 TB5
Yel G n R ed Blu
R EM O TE
R E M O T E
TB4 TB5
Yel G n R ed Blu
R EM O TE
R E M O T E
