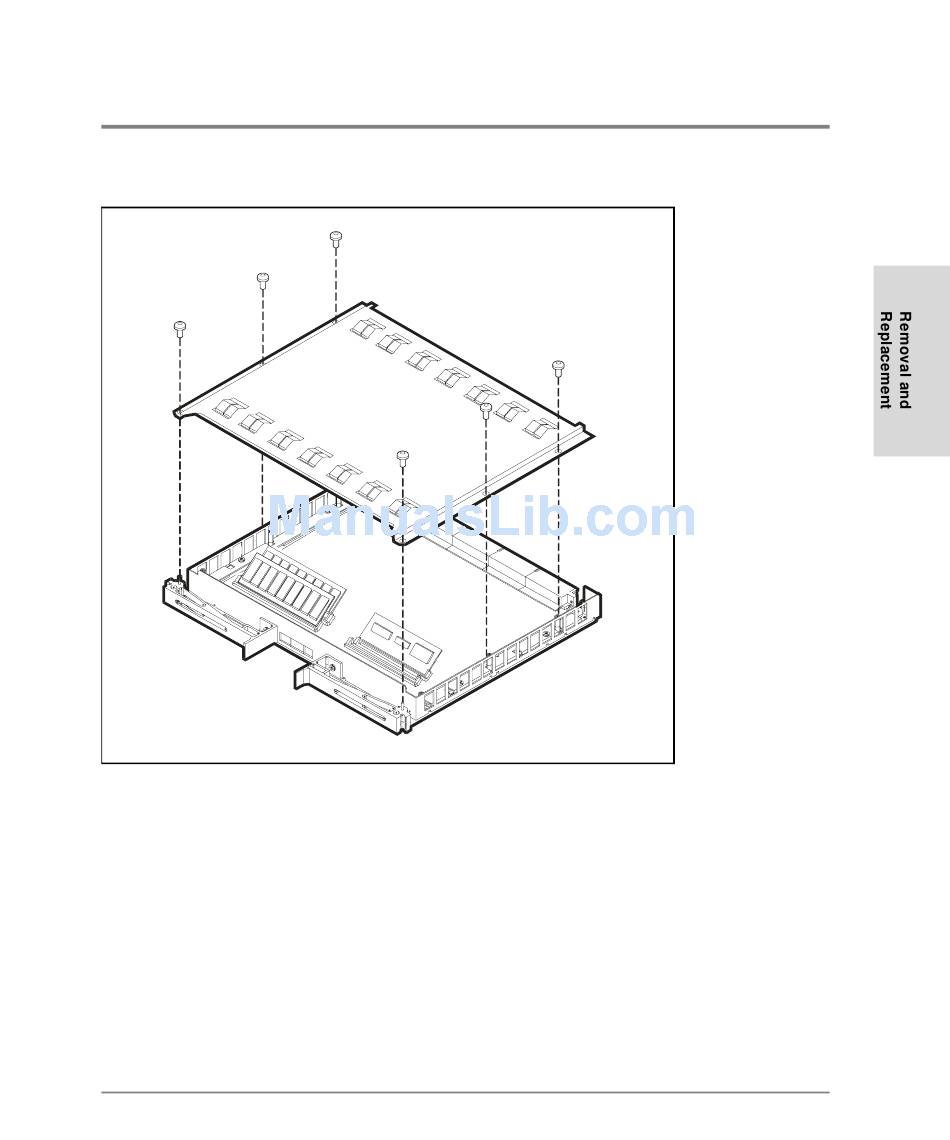

Figure 118
Controller Module Cover Removal
5.
Install the DIMM/SIMM card
– Replace the DIMM - If you are transferring the DIMM to a new replacement module
or installing a new DIMM into the existing controller module - by pressing the card
into the front DIMM connector until it snaps in place. These cards are keyed and will
install in one direction only.
– Replace the SIMM by inserting the SIMM card, vertically into the connector, then
push the top of the card back, until it snaps into place. Note, these cards are keyed
and will install in one direction only.
(Figure
119):
Internal Controller Enclosure Assemblies
347
