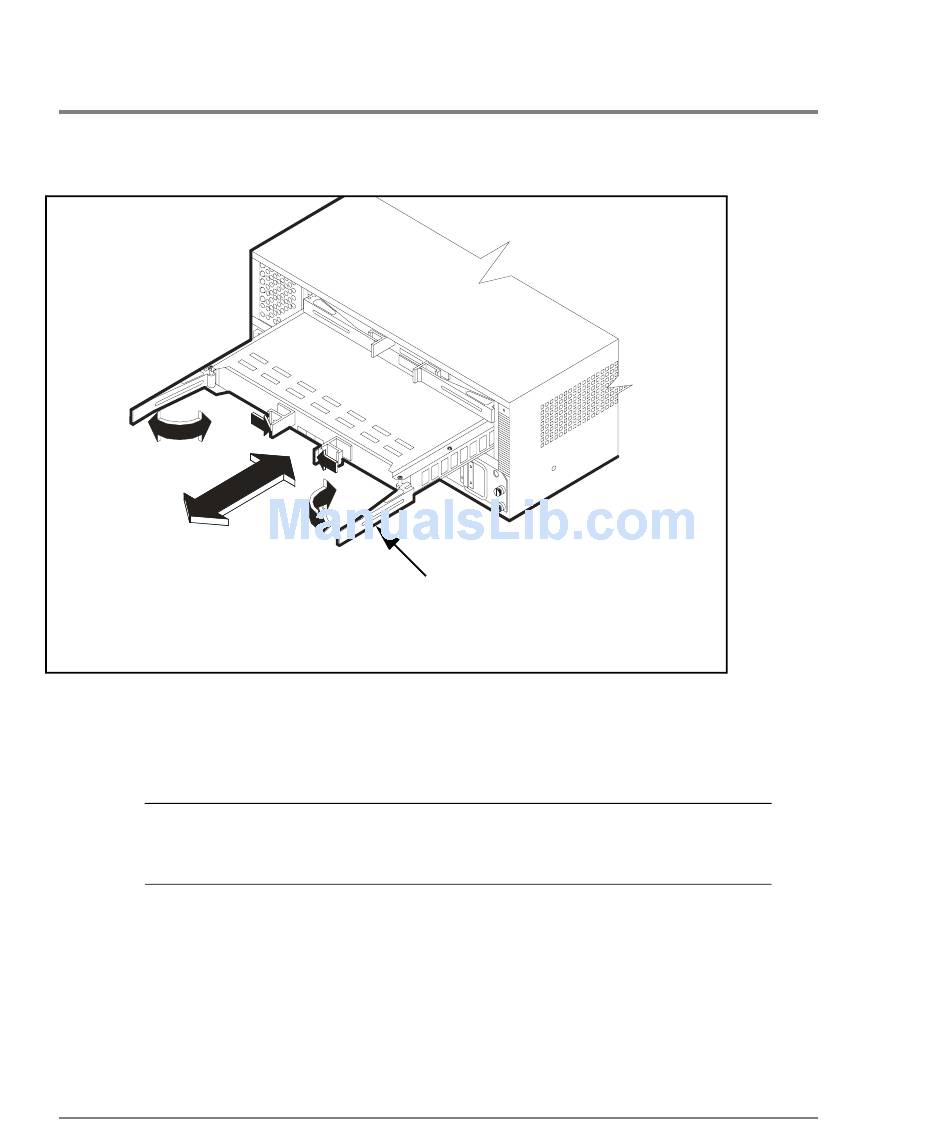

Figure 112
Controller Module Removal and Replacement
Installing the DIMM Card on the New Controller
If you are upgrading a single controller disk array by installing an add-on
Note
A5278A Controller Module, you do not need to perform the following
procedure. Skip to
1.
Using proper antistatic handling precautions, remove the replacement controller
module from the packing material.
2.
Place the new controller on an antistatic mat.
3.
Attach the grounding wrist strap to your wrist and ground the other end to the controller
enclosure.
Controller Enclosure Modules
334
Ensure handles are not extended
more than 90 degrees when
installing the module.
"Installing the Controller Module" on page 336
