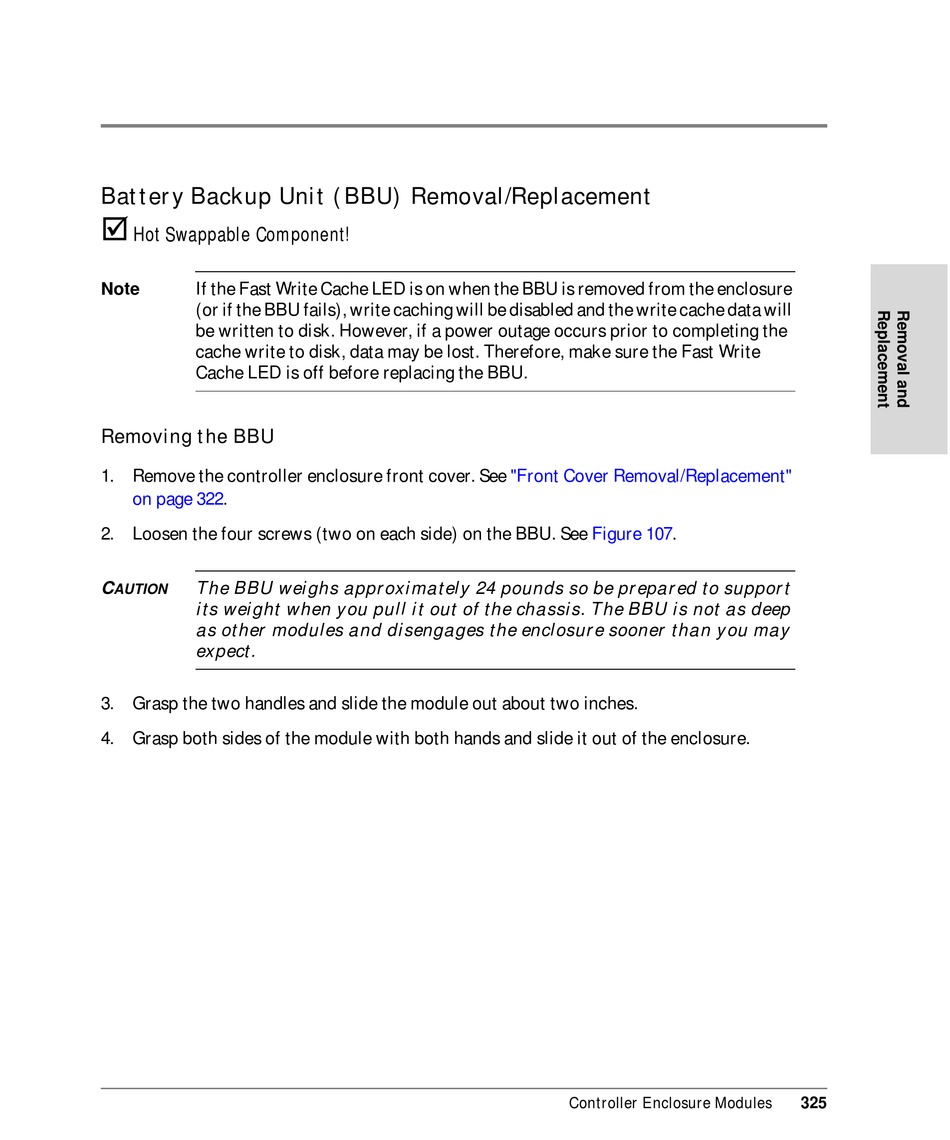

Battery Backup Unit (BBU) Removal/Replacement

"
Hot Swappable Component!
If the Fast Write Cache LED is on when the BBU is removed from the enclosure
Note
(or if the BBU fails), write caching will be disabled and the write cache data will
be written to disk. However, if a power outage occurs prior to completing the
cache write to disk, data may be lost. Therefore, make sure the Fast Write
Cache LED is off before replacing the BBU.
Removing the BBU
1. Remove the controller enclosure front cover. See
on page 322.
2. Loosen the four screws (two on each side) on the BBU. See
The BBU weighs approximately 24 pounds so be prepared to support
C
AUTION
its weight when you pull it out of the chassis. The BBU is not as deep
as other modules and disengages the enclosure sooner than you may
expect.
3. Grasp the two handles and slide the module out about two inches.
4. Grasp both sides of the module with both hands and slide it out of the enclosure.
"Front Cover Removal/Replacement"
Figure 107.
Controller Enclosure Modules
325
