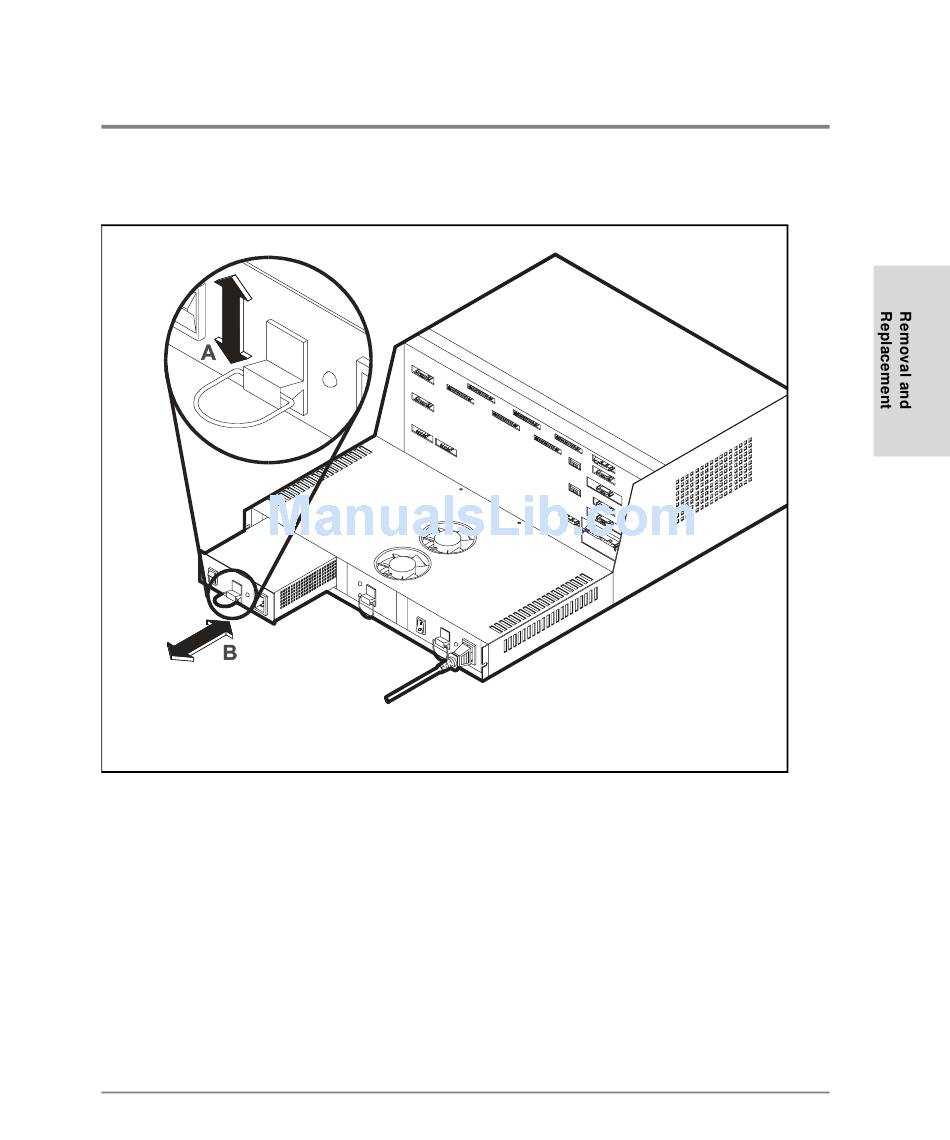

Figure 111
Power Supply Module Removal and Replacement
Installing the Power Supply Module
1.
Slide the supply into the slot until it is fully seated and the latch snaps into place.
2.
Plug in the power cord and turn on the power. See
3.
Check the power supply module LED for the following behavior:
– The Power LED should go on. Once the power supply in installed and operating,
there may be a delay of up to several minutes before the Power Fault LED goes off.
Figure
110.
Controller Enclosure Modules
331
