Front Cover Removal/Replacement
"
Hot Swappable Component!
To gain access to the front of the controller module, the controller fan module, or the
battery backup unit (BBU), the front cover must be removed.
Removing the Front Cover
1.
Pull the bottom of the cover out about one inch to release the pins. See
2.
Slide the cover down one inch and pull it away from the controller enclosure.

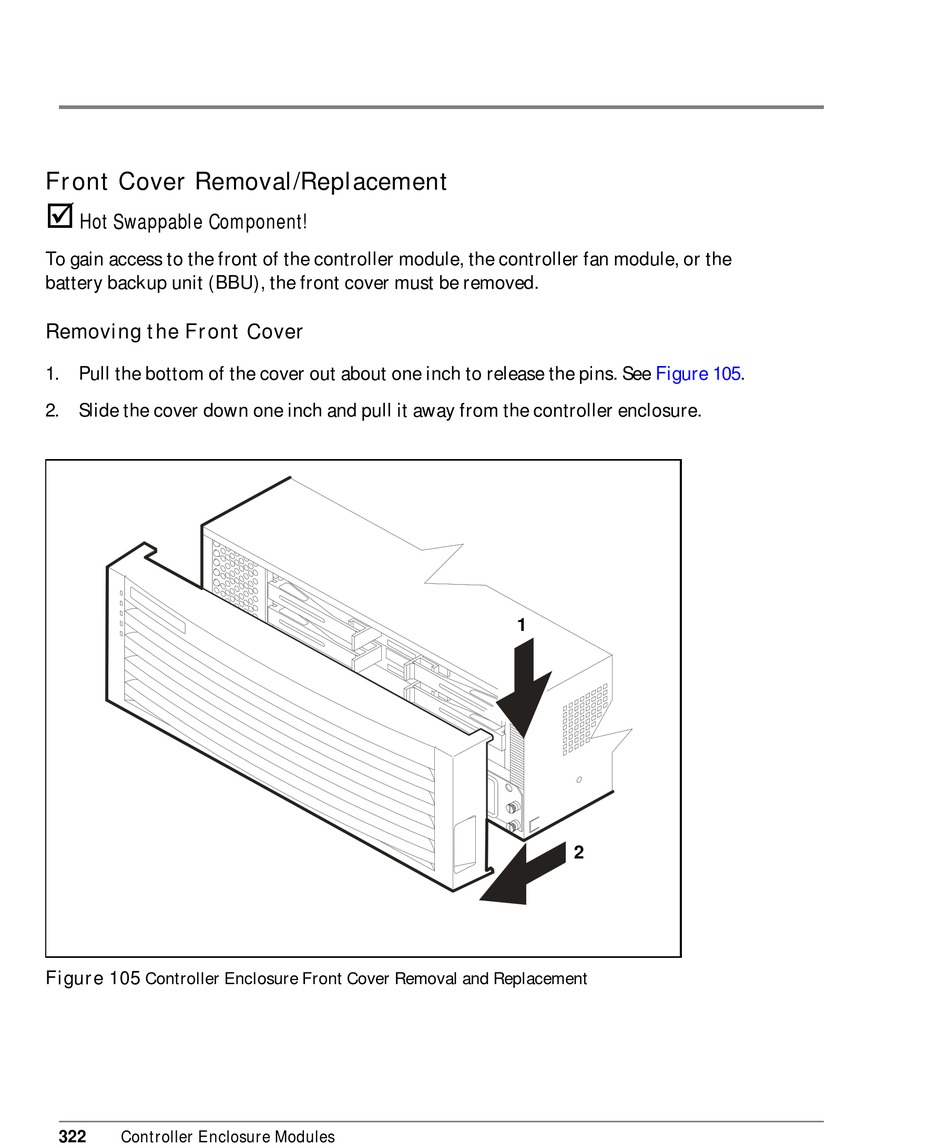

Figure 105
Controller Enclosure Front Cover Removal and Replacement
Controller Enclosure Modules
322
Figure
1
2
105.
