Install the printer
Connect a USB data cable
1
i
2
Connect an optional smart card serial cable
i
1
i
User's Guide for ImageCard® Select™ and UltraGrafix® Select™ Printers
Attach the flat end of the USB cable to the USB port on the PC (see Figure 7-3) or
to a device attached to the PC through a USB port.

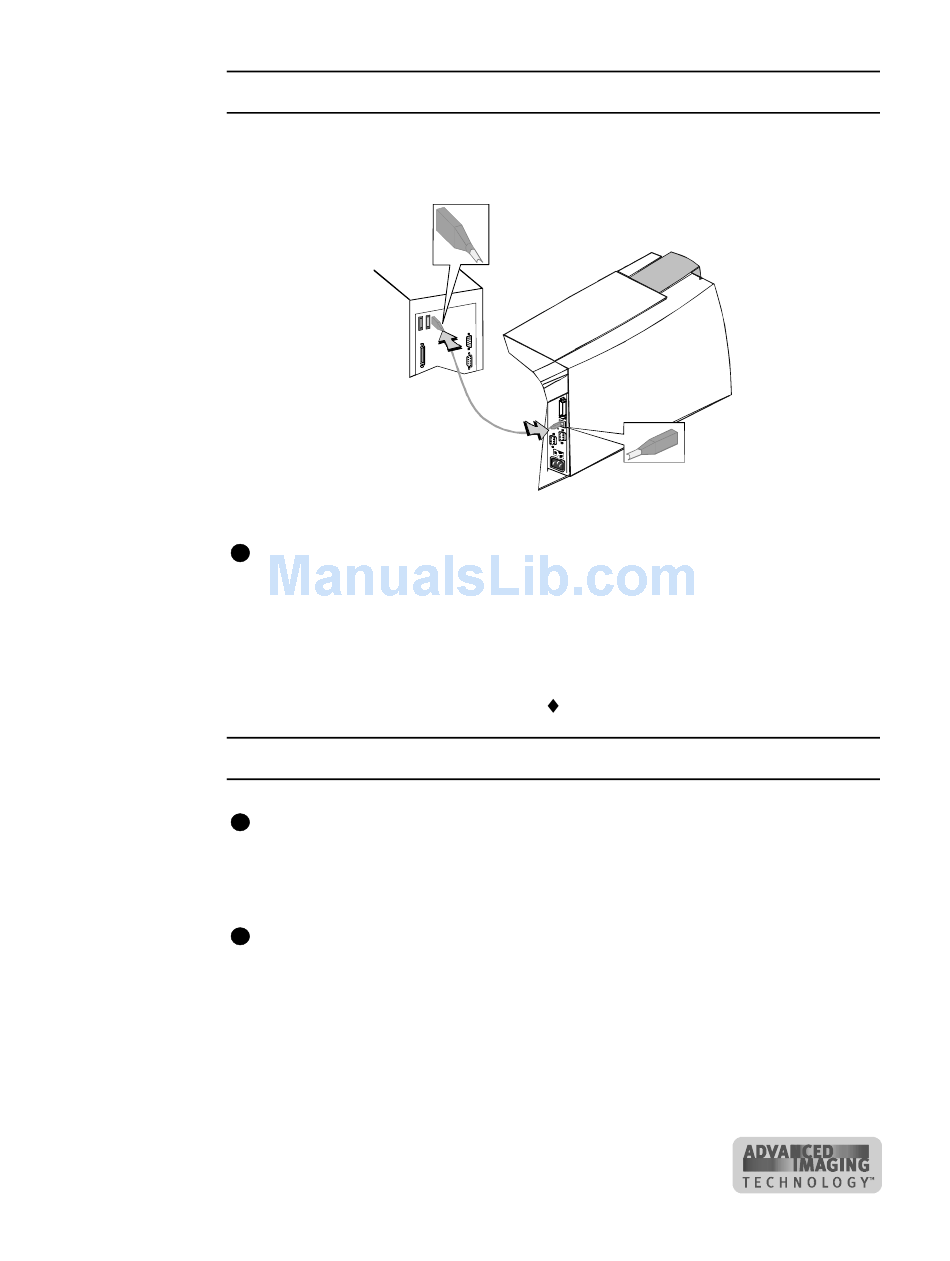

Figure 7-3: Connect the USB cable
The USB cable must be a type CM 30V cable, up to a maximum of 6.5 feet or 2
meters long.
WAIT to attach the other end of the USB cable to the printer. You must connect
the printer and the PC after the printer is powered on and ready. (Using this
method, Windows will keep track of the printer if you move the cable to another
physical USB port on the PC.)
If the printer has a smart card module, the ports to use correspond to the module
installed. If no smart card ports are installed in the printer, no cable is needed.
Connect the serial cable to the inside printer port (Figure 7-4) if a contact smart
card module or a contact station is installed in the printer.
The smart card serial cable must be a shielded DB9 serial cable, up to a
maximum of 9.8 feet or 3 meters long.
7-5
