Connect a parallel port data cable
1
i
2
Attach the parallel port cable to the ECP parallel port on the printer.
The parallel port cable must be a shielded, Type C, IEEE 1284 parallel port cable,
up to a maximum of 6.5 feet or 2 meters long.

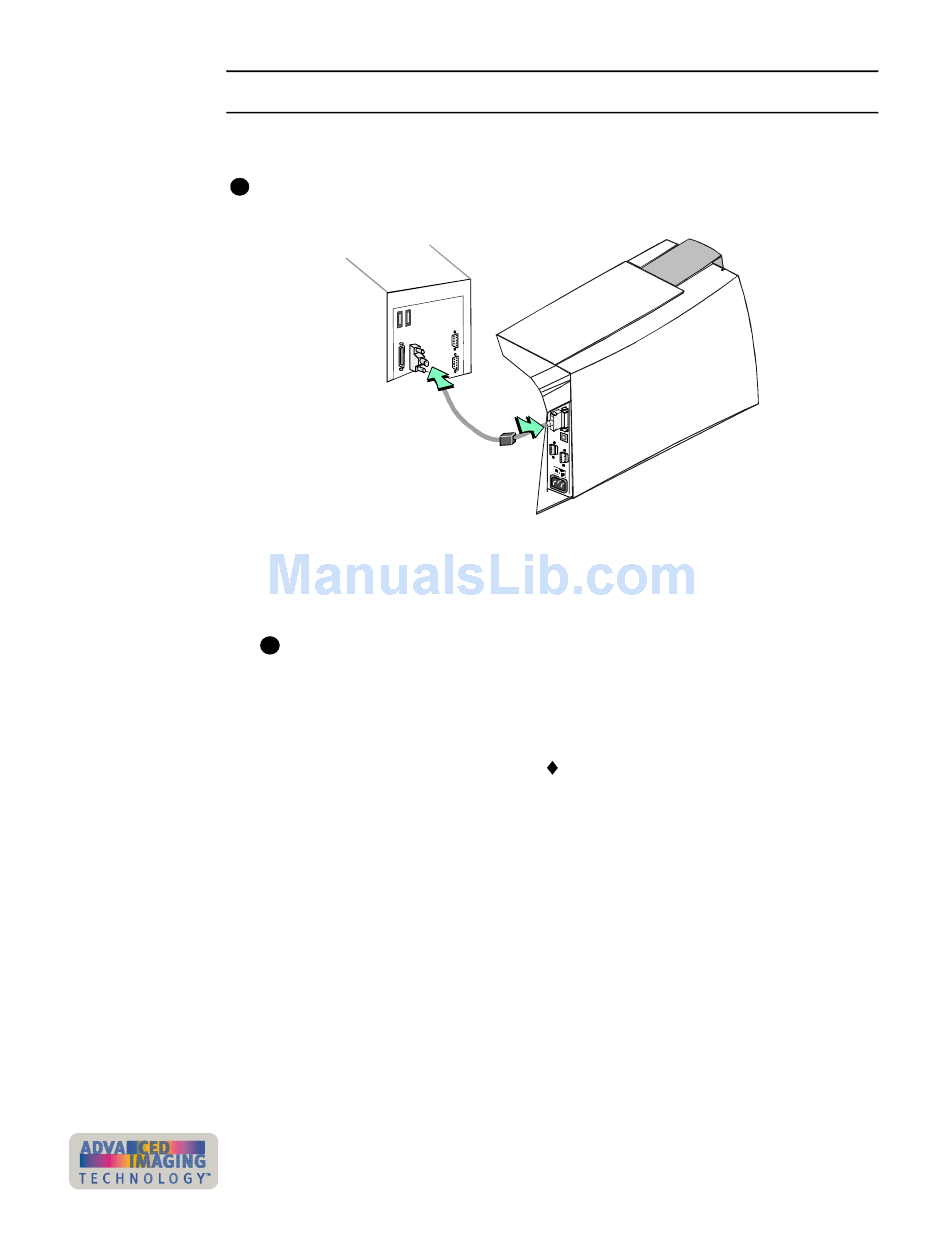

Figure 7-2: Connect the parallel port cable
Attach the other end of the cable to the parallel port on the PC ( see
Press the cable connector all the way onto the port, and then turn the posts to
secure the cable to the PC.
i
Some parallel communication devices use a cable with a plug that allows
another device to be attached, so that two parallel devices are attached to
one PC parallel port, known as a pass-through or piggy-back plug. The printer
and printer driver cannot communicate reliably through such a plug. Install an
additional parallel port in the PC if needed.
