Setting Up and Configuring the Router
QoS
Cisco RVS4000 Security Router with VPN Administrator Guide
Priority

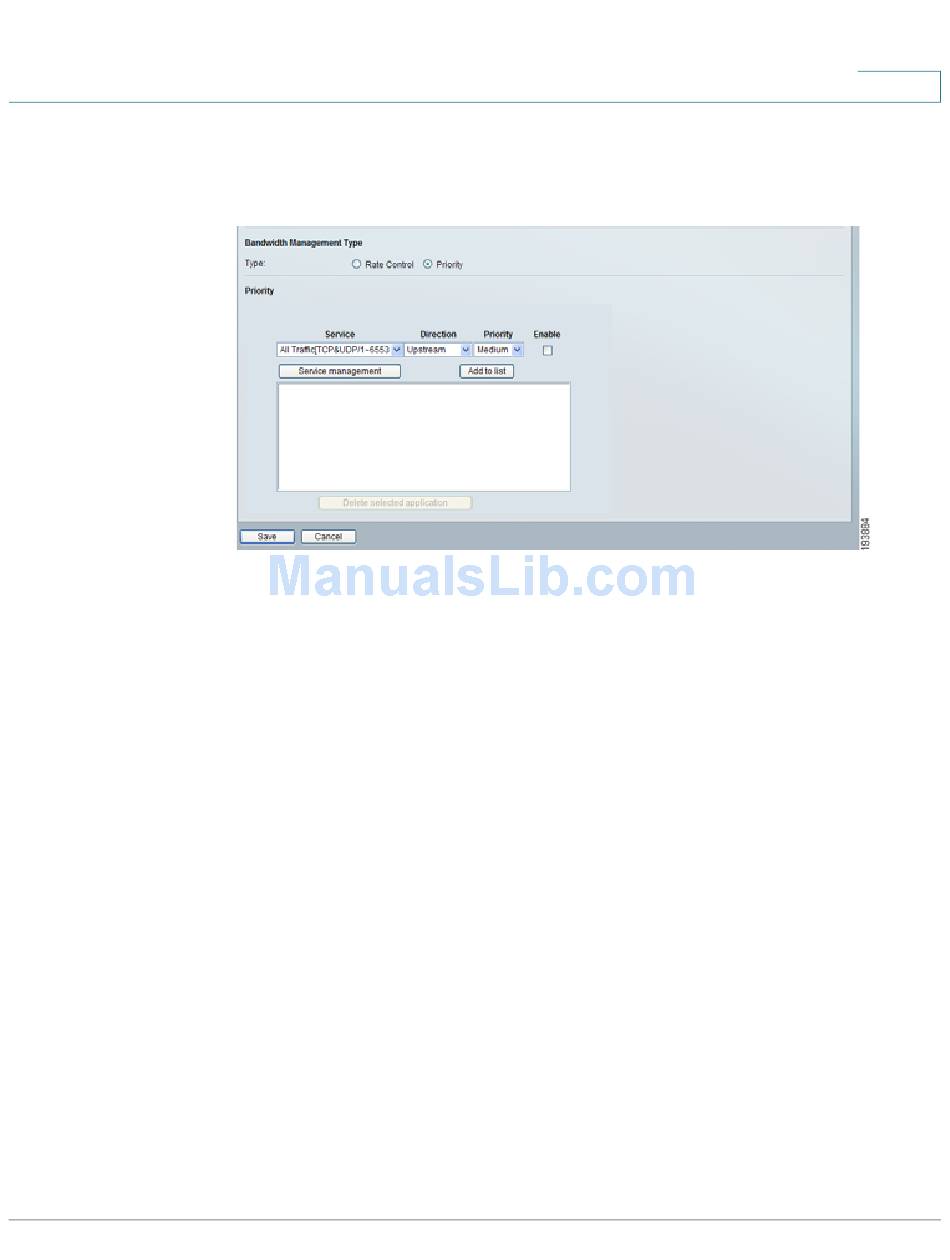

QoS > Bandwidth Management - Priority
Service
Select the service from the drop-down menu. If it does not contain the
service you need, click Service Management to add the service.
Direction
Select Upstream for outbound traffic or Downstream for inbound
traffic from the drop-down menu.
Priority
Select High, Medium, Normal, or Low priority for the service. The default
is Medium.
Enable
Check this box to enable this Priority Rule.
Add to list
After a rule is set up, click this button to add it to the list. The list can
contain a maximum of 15 entries.
Delete selected application
Click Save to save your changes, or click Cancel to undo your changes.
Click this button to delete a rule from the list.
5
69
