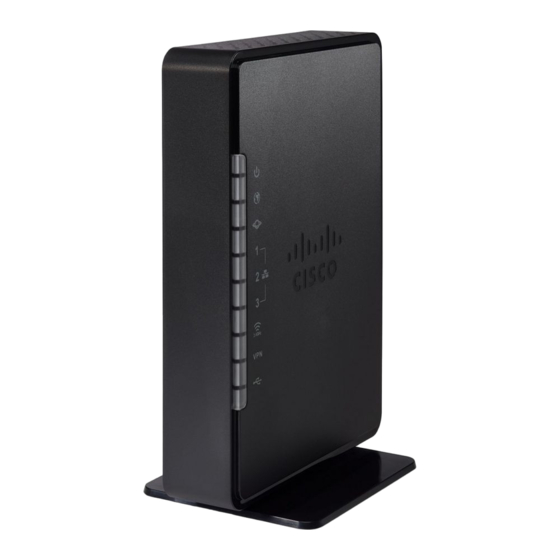

- Page 1 CLI GUIDE Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router Command Line Interface (CLI) Reference Guide...
- Page 2 Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company.
-
Page 3: Table Of Contents
15 restoredefault 16 save 16 ssh 17 ssh {enable | disable} ssh wan {enable | disable} ssh show swversion 18 syslog 19 syslog dump traceroute 19 Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... - Page 4 | disable} --port1 {untagged | tagged | excluded} --port2 {untagged | tagged | excluded} --port3 {untagged | tagged | excluded} --port4 {untagged | tagged | excluded} (port4 is for RV134W) vlan delete --vid vlanID vlan show Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide...
- Page 5 --ssid ssid --smode {wpa2_personal | wpa_personal_mixed} --encry {TKIP_AES | AES} --skey shared key --krenew renewal-seconds wlan --ssid ssid --smode {wpa2_enterprise | wpa_enterprise_mixed} --encry {TKIP_AES | AES} --rserver radius-server-IP --rport port --skey shared-key -- Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide...
- Page 6 Contents krenew renew-seconds Chapter 5: Where to Go From Here Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide...
-
Page 7: Chapter 1: Introduction
+ last 3 bytes of LAN MAC, followed by a >, as shown here: router06000a> To access the SSH, a terminal emulator software like PuTTY or others must be used. We use PuTTY as an example. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 8: Connecting To A Console Terminal
115200 baud, 8 data bits, no parity, 1 stop bit, and no mode control. To connect the router to a terminal or computer, follow these steps: Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 9: Cli Command Conventions
, and set are keywords, appname is an argument that specifies the application name. To enter the commands that require parameters, enter the required parameters after the command keyword. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... - Page 10 This helps with entering the correct command. The commands are not case-sensitive. NOTE All the allowable commands for RV132W & RV134W router are listed in next chapter. <TAB> Completes the keyword. Anywhere in the command line to display context- sensitive help.
-
Page 11: Chapter 2: Basic Commands
The following example displays the ? command which is used to get help using the command line. >? router06000a exit The exit command enables you to exit the router with the command line. Parameter None. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 12: Help
The following example is to display the help commands using the command line that the router supports. > help router06000a logout The logout command enables you to logout of the router with the command line. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 13: Quit
The following example displays how to quit the command-line session on the router. > quit router06000a reboot The reboot command enables you to reboot the router with the command line. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... - Page 14 Basic Commands reboot Parameter None. Default Configuration None. Example The following example displays how to reboot the router. > reboot router06000a Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide...
-
Page 15: Chapter 3: Management Commands
- Enter one of the following: httpd, tr69c, smd, ssk, telnetd, sshd, consoled, upnp, dnsproxy, wlmngr, vpn. Default Configuration None. Example The following example displays the logging level of tr69c. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 16: Loglevel Set Appname
The nslookup command is a network administration tool used to lookup and find IP address information in the DNS. Parameter host server - Enter the IP address of the DNS server. Default Configuration None. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 17: Ping
- Quiet, only displays output at start and when finished. Default Configuration None. Example The following example displays how to check the IP connectivity. router06000a>ping 192.168.1.10 Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 18: Restoredefault
The save command let you save your settings on the router. Parameter None. Default Configuration None. Example The following example displays the save command. router06000a>save Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 19: Ssh
{enable | disable} To enable or disable SSH access from wan, use the ssh wan {enable | disable} command. Parameters None. Default Configuration None. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 20: Ssh Show
The swversion command displays the version of the firmware that is on the device. Parameter None. Default Configuration None. Example The following example displays the software version of the router. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 21: Syslog
The traceroute command displays the route (path) and measures the transit delays of the packets across an IP. Parameters 4, 6 - Specifies the IPv4 or IPv6 name resolution. F - Sets the do not fragment bit. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... -
Page 22: Uptime
None. Example The following example displays the path. router06000a>traceroute 168.95.1.1 uptime The uptime command shows how long the system has been up. Parameter None. Default Configuration None. Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide... - Page 23 Management Commands uptime Example The following example shows how long the system has been up. router06000a>uptime Cisco RV132W ADSL2+ Wireless-N and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide...
-
Page 24: Chapter 4: Configuration Commands
- Enter the vlan ID start-IP-address - Enter the start IP address end-IP-address - Enter the end IP address leased-time (hour) - Enter the leased time in hours default-gateway-IP-address - Enter the default gateway IP address Cisco RV34xx Router CLI Reference Guide... -
Page 25: Dhcpserver Reserving {Add | Delete} Vlanid Description Ip- Address Mac-Address
IP-address - Enter the IP address. mac-address - Enter the MAC address. Default Configuration None. Example The following example displays the dhcpserver reserving add command to reserve a dhcpserver. router06000a>dhcpserver reserving add 1 test 192.168.1.99 00:00:00:00:00:01 Cisco RV34xx Router CLI Reference Guide... -
Page 26: Dhcpserver Show Vlanx
To manage the IP address of the LAN, use the lan config --ipaddr bridge-name primary IP address subnet mask command. Parameters bridge-name - Enter the bridge name of the IP address IP-address subnet-mask - Enter the primary IP address and subnet mask. Cisco RV34xx Router CLI Reference Guide... -
Page 27: Lan Config --Dhcpserver Bridge-Name {Enable | Disable
To manage the dhcpclient of the LAN, use the lan config --dhcpclient {enable | disable} command. Parameters --dhcpclient bridge-name {enable | disable} - Enter the bridge name and enable or disable to enable or disable the dhcp client. Default Configuration None. Cisco RV34xx Router CLI Reference Guide... -
Page 28: Lan Show Bridge-Name
The lanhosts command displays all the hosts on the lan. All the lanhosts commands are listed here: • lanhosts show all • lanhosts show vlanX lanhosts show all To show all the lanhosts command, use the lanhosts show all command. Parameter None. Cisco RV34xx Router CLI Reference Guide... -
Page 29: Lanhosts Show Vlanx
All the tr69cfg commands are listed here: • tr69cfg {enable | disable} • tr69cfg modify --interval informinterval --acsurl acsurl --acsuser acsuser --acspwd acspwd --cruser connrequser --crpwd connreqpwd • tr69cfg show Cisco RV34xx Router CLI Reference Guide... -
Page 30: Tr69Cfg {Enable | Disable
- Enter the ACS URL. acsuser - Enter the ACS username. acspwd - Enter the ACS password. connrequser - Enter the user name of the connection request user. connreqpwd - Enter the connection request password. Cisco RV34xx Router CLI Reference Guide... -
Page 31: Tr69Cfg Show
{enable | disable} To enable or disable a tr69cfg session and to periodically send or stop local information use the tr69cfg informEnable {enable | disable} command. Parameter None. Default Configuration None. Cisco RV34xx Router CLI Reference Guide... -
Page 32: Tr69Cfg Debug {Enable | Disable
--vid vlanID --desc description --intervlan-routing {enable | disable} --port1 {untagged | tagged | excluded} --port2 {untagged | tagged | excluded} --port3 {untagged | tagged | excluded} --port4 {untagged | tagged | excluded} (RV134W) Cisco RV34xx Router CLI Reference Guide... -
Page 33: Tagged | Excluded} --Port3 {Untagged | Tagged | Excluded} --Port4 {Untagged
--vid 88 --desc 123 --intervlan-routing enable --port1 tagged --port2 tagged --port3 excluded --port4 tagged vlan edit bridge-name --vid vlanID --desc description -- intervlan-routing {enable | disable} --port1 {untagged | tagged | excluded} --port2 {untagged | tagged | excluded} --port3 Cisco RV34xx Router CLI Reference Guide... -
Page 34: Vlan Delete --Vid Vlanid
--vid 88 --desc 321 --intervlan-routing disable --port1 excluded -- port2 tagged --port3 excluded --port4 tagged vlan delete --vid vlanID To delete a VLAN, enter the vlan delete vid vlanID command. Parameters vlanID - Enter the VLAN ID. Default Configuration None. Cisco RV34xx Router CLI Reference Guide... -
Page 35: Vlan Show
--name connection-name --psk pre-shared key --rwan remote wan IP --rlan remote lan IP --rmask remote lan mask --lan local lan ip -- lanmask local lan mask • vpn stop --name connection-name • vpn start --name connection-name • vpn restart Cisco RV34xx Router CLI Reference Guide... -
Page 36: Vpn Add --Name Connection-Name --Psk Pre-Shared Key --Rwan Remote Wan Ip --Rlan Remote Lan Ip --Rmask Remote Lan Mask --Lan Local Lan Ip --Lanmask Local Lan Mask
The following example displays how to add a vpn connection. router06000a>vpn add --name test --psk qacafe123 --rwan 5.0.0.1 --rlan 11.0.0.0 --rmask 255.255.255.0 --lan 192.168.1.0 --lanmask 255.255.255.0 vpn stop --name connection-name To stop a vpn connection, use the vpn stop --name connection-name command. Cisco RV34xx Router CLI Reference Guide... -
Page 37: Vpn Start --Name Connection-Name
The following example displays how to start the vpn service. router06000a>vpn start --name vpn1 vpn restart To restart the vpn connection, use the vpn restart command. Parameter vpn restart - Enter vpn restart. Default Configuration None. Cisco RV34xx Router CLI Reference Guide... -
Page 38: Vpn Restart --Name Connection-Name
To delete a vpn service, use the vpn delete --name connection-name command. Parameter --name connection-name - Enter the name of the connection to delete. Default Configuration None. Example The following example displays how to delete a vpn whose connection name is 1. Cisco RV34xx Router CLI Reference Guide... -
Page 39: Vpn Show
{add | edit} service eth --protocol {dhcp | static | pppoe | l2tp | pptp} vlanID • wan delete service atm portid.vpi.vci --vlan • wan delete service ptm --vlan vlanID • wlan delete service eth --vlan vlanID Cisco RV34xx Router CLI Reference Guide... - Page 40 Enter a number from 4000-65534 (Peak Cell Rate). scr: Enter a number from 4000-65534 (Sustainable Cell Rate). mbs: Enter a number from 1-1000000 (Maximum Burst Size). vpi: Enter a number from 0-65535. vci: Enter a number from 0-65535. Cisco RV34xx Router CLI Reference Guide...
-
Page 41: Wan Delete Interface Atm Portid.vpi.vci
0.1.39 --linktype ipoa --encap vcmux --atmcat ubr wan delete interface atm portid.vpi.vci To delete an existing wan, use the wan delete interface atm portid.vpi.vci command. Parameters interface atm portid.vpi.vci - Enter the port ID. Default Configuration None. Cisco RV34xx Router CLI Reference Guide... -
Page 42: Wan {Add | Edit} Service Atm Portid.vpi.vci --Protocol {Bridge | Ipoe | Pppoe | Ipoa | Pppoa
--protocol {bridge | ipoe | pppoe} command. Parameter wan {add | edit} - Enter add or edit to add or edit the service. protocol {bridge | ipoe | pppoe} - Select and enter the protocol. Cisco RV34xx Router CLI Reference Guide... -
Page 43: Wan {Add | Edit} Service Eth --Protocol {Dhcp | Static | Pppoe | L2Tp | Pptp
--vlan vlanID To delete a wan connection using the atm transfer mode, use the wan delete service atm portid.vpi.vci --vlan vlanID command. Parameter portid.vpi.vci - Enter the port ID. vlanID - Enter the vlan ID. Cisco RV34xx Router CLI Reference Guide... -
Page 44: Wan Delete Service Ptm --Vlan Vlanid
--vlan 56 wan delete service eth --vlan ethlanID To delete the wan Ethernet service, use the wan delete service eth --vlan ethvlanID command. Parameter ethvlanID - Enter the Ethernet VLAN ID. Default Configuration None. Cisco RV34xx Router CLI Reference Guide... -
Page 45: Wan Show
To show the status of the wan, use the wan show interface command. Parameter wan show interface - Enter wan show interface. Default Configuration None. Example The following example displays the wan show interface command. Cisco RV34xx Router CLI Reference Guide... -
Page 46: Wlan
153 | 157 | 161 | 165 (channels for 5G) key1: [0-9A-Z] (if encry is 64, the length of key1 is 10 characters, if encry is 128, the length of key1 is 26 characters) Cisco RV34xx Router CLI Reference Guide... -
Page 47: Wlan --I Interface {Enable | Disable
WLAN must use the same SSID to enable effective roaming. To configure the wlan network, use the wlan --i interface --ssid ssid command. Cisco RV34xx Router CLI Reference Guide... -
Page 48: Wlan --Ssid Ssid --Mode Mode --Band Band --Channel Channel --Vlan Vlanid
The following example displays the wlan configuration for mode, band, channel, and vlan. router06000a> wlan --ssid test24g2 --mode bgn-mixed --band 20/40 --channel 7 --vlan 1 router06000a>wlan --ssid test5g3 --mode anac-mixed --band 80 --channel 40 Cisco RV34xx Router CLI Reference Guide... -
Page 49: Wlan --Ssid Ssid --Smode Disable
--encry {128 | 64} - Select and enter the encryption --key1 key1 --key2 key2 --key3 key3 --key4 key4 - Enter the security keys. --txkey {1 | 2 | 3 | 4} - Enter the key index Default Configuration None. Cisco RV34xx Router CLI Reference Guide... -
Page 50: Wlan --Ssid Ssid --Smode {Wpa2_Personal | Wpa_Personal_Mixed} --Encry {Tkip_Aes | Aes} --Skey Shared Key --Krenew Renewal-Seconds
The following example displays the wlan WPA2 configuration for a specific SSID. router06000a> wlan --ssid test24g2 --smode wpa2_personal --encry AES --skey sqa2sqa2 -- krenew 6688 router06000a> wlan --ssid test5g3 --smode wpa_personal_mixed --encry TKIP_AES --skey sqa28888 --krenew 6666 Cisco RV34xx Router CLI Reference Guide... - Page 51 The following example displays the WLAN WPA2 enterprise configuration for a specific SSID. router06000a>wlan --ssid test24g2 --smode wpa2_enterprise --encry AES --rserver 192.168.1.101 --rport 123 --skey qacafe123 --krenew 677 router06000a> wlan --ssid test5g3 --smode wpa_enterprise_mixed --encry TKIP_AES --rserver 192.168.1.102 --rport 321 --skey qacafe123 --krenew 688 Cisco RV34xx Router CLI Reference Guide...
-
Page 52: Where To Go From Here
Requests smallbiz_opensource_request Cisco Partner Central www.cisco.com/web/partners/sell/smb (Partner Login Required) Product Documentation Cisco RV132W/RV134W www.cisco.com/go/rv132W www.cisco.com/go/rv134W Warranty Information www.cisco.com/go/warranty Regulatory Compliance and http://www.cisco.com/c/en/us/support/routers/ Safety Information small-business-rv-series-routers/products- installation-guides-list.html Cisco RV132W ADSL2+ Wireless-N VPN and RV134W VDSL2 Wireless-AC VPN Router CLI Reference Guide...
