Setting Up and Configuring the Router
Setup
Cisco RVS4000 Security Router with VPN Administrator Guide

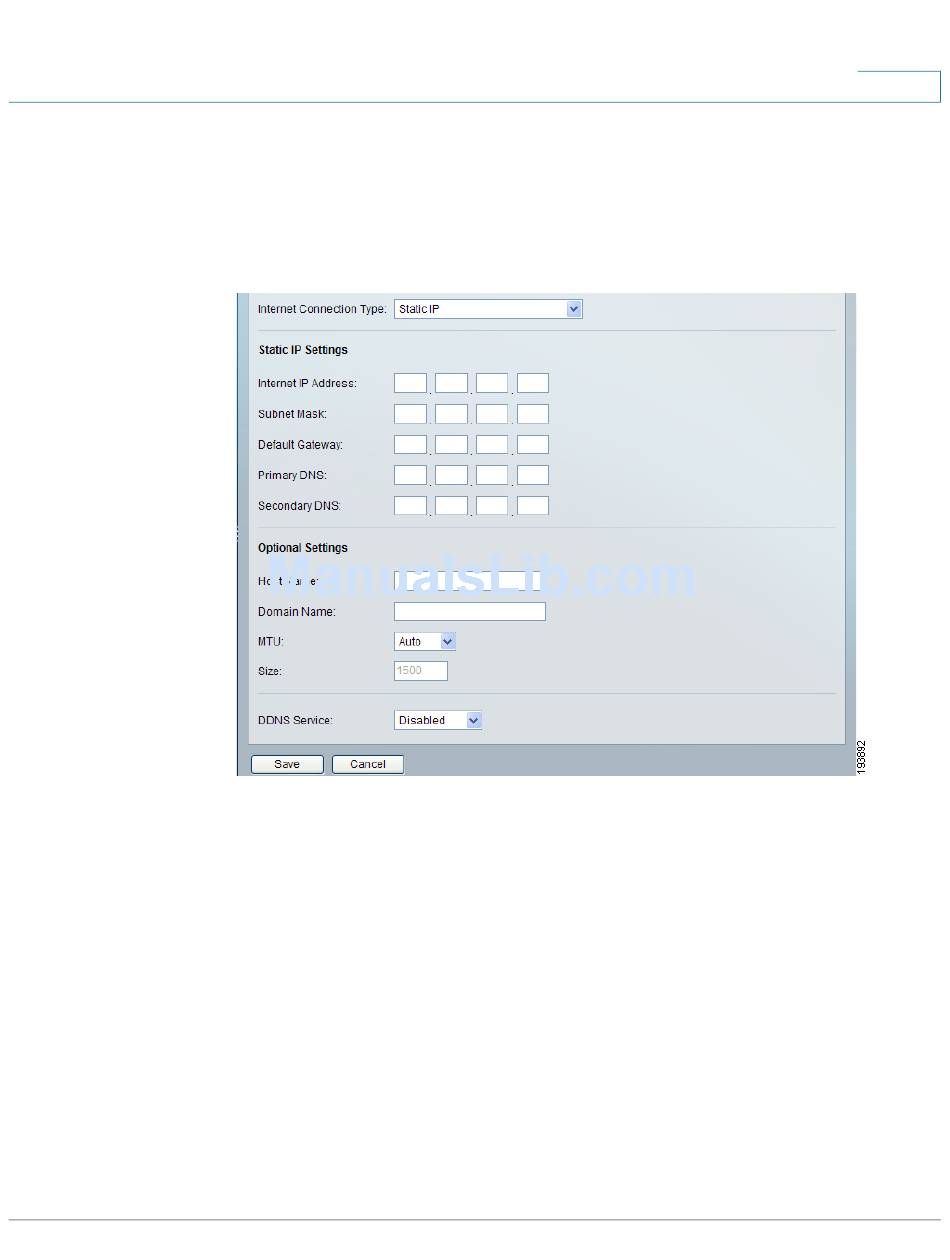

Static IP
If your connection uses a permanent IP address to connect to the Internet, then
select Static IP.
Static IP
Internet IP Address
Internet. Your ISP will provide you with the IP Address to specify here.
Subnet Mask
The router's Subnet Mask, as seen by external users on the Internet
(including your ISP). Your ISP will provide you with the Subnet Mask.
Default Gateway
Your ISP will provide you with the Default Gateway Address,
which is the ISP server's IP address.
Primary DNS (Required) and Secondary DNS (Optional)
you with at least one DNS (Domain Name System) Server IP Address.
Click Save to save your changes, or click Cancel to undo your changes.
The router's IP address, when seen from the WAN, or the
5
Your ISP will provide
30
