Chapter 1 Overview

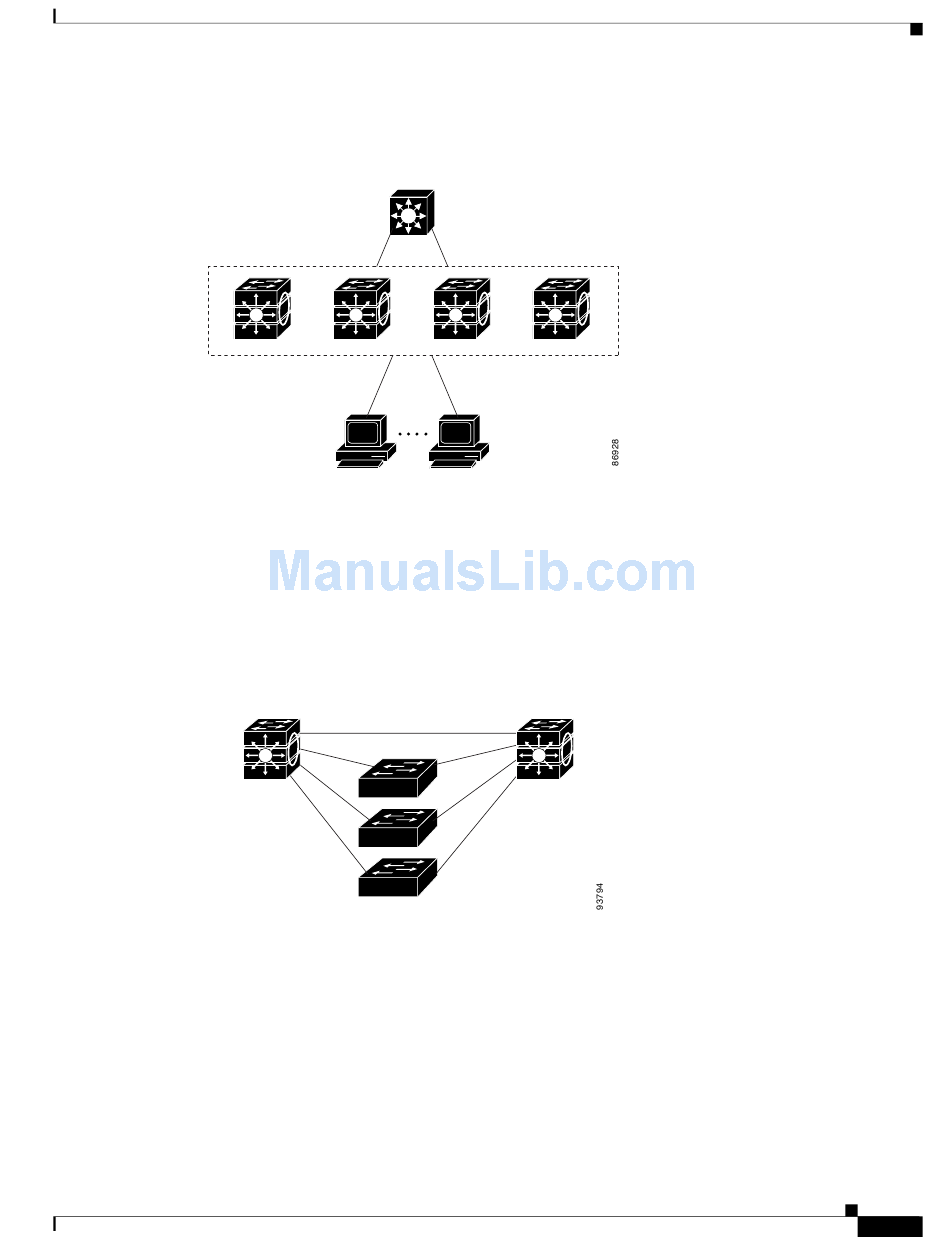

Figure 1-2
Redundant Gigabit backbone—Using HSRP, you can create backup paths between two
•
Catalyst 3750G multilayer Gigabit switches to enhance network reliability and load balancing for
different VLANs and subnets. Using HSRP also provides faster network convergence if any network
failure occurs. You can connect the Catalyst switches, again in a star configuration, to two
Catalyst 3750G multilayer backbone switches. If one of the backbone switches fails, the second
backbone switch preserves connectivity between the switches and network resources.
Figure 1-3
Catalyst 3750 switch
• Server aggregation
and switch stacks to interconnect groups of servers, centralizing physical security and
administration of your network. For high-speed IP forwarding at the distribution layer, connect the
switches in the access layer to multilayer switches with routing capability. The Gigabit
interconnections minimize latency in the data flow.
QoS and policing on the switches provide preferential treatment for certain data streams. They
segment traffic streams into different paths for processing. Security features on the switch ensure
rapid handling of packets.
OL-8550-02
High-Performance Wiring Closet
Catalyst
4500 or 6500
multilayer switch
Si
Redundant Gigabit Backbone
Catalyst 3750 switch
1-Gbps HSRP
Catalyst switches
(Figure 1-4) and Linux server cluster
Catalyst 3750
Layer 3 StackWise
switch stack
(Figure 1-5)—You can use the switches
Catalyst 3750 Switch Software Configuration Guide
Network Configuration Examples
1-19
