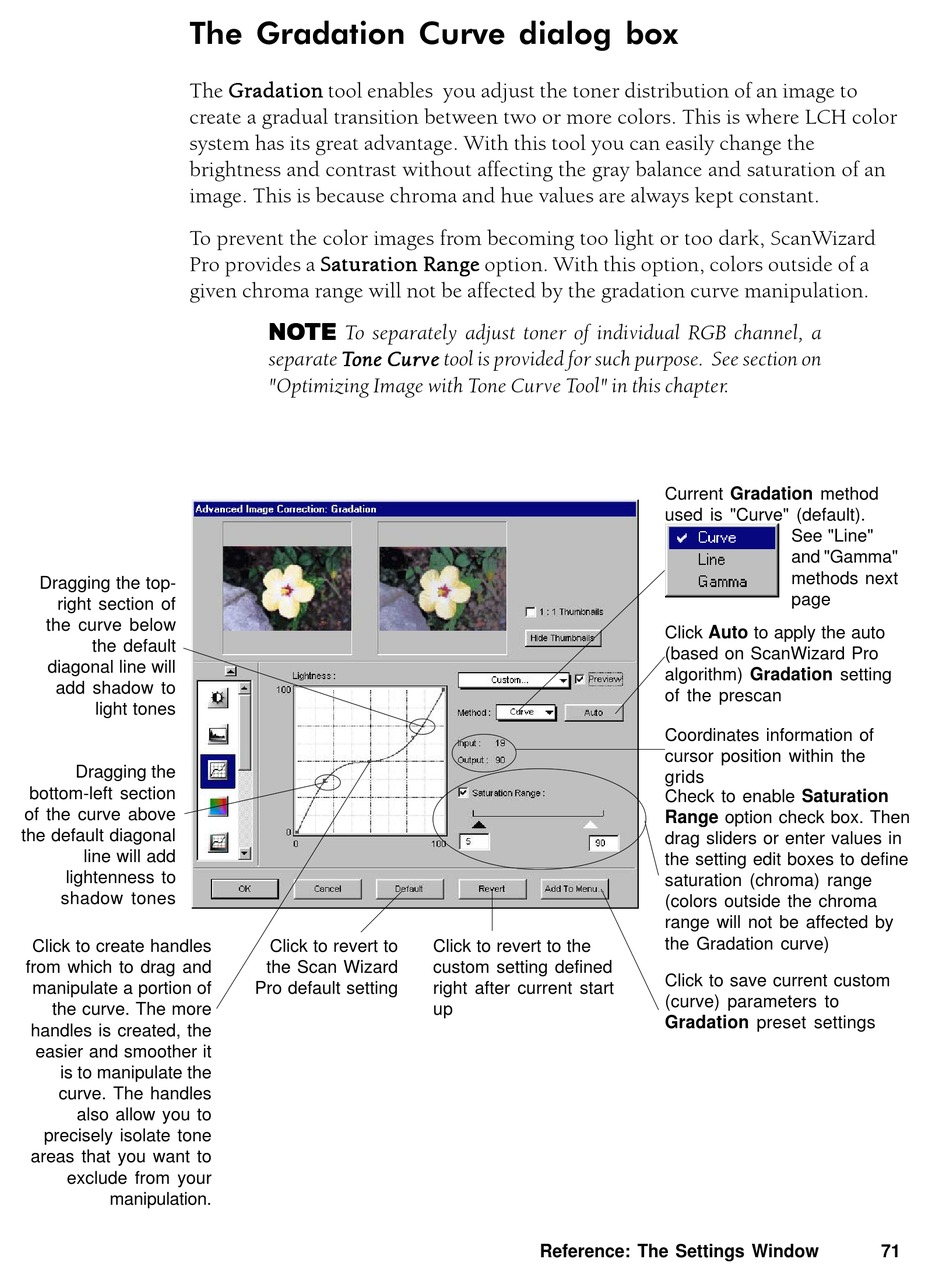

The Gradation Curve dialog box

The Gradation
create a gradual transition between two or more colors. This is where LCH color
system has its great advantage. With this tool you can easily change the
brightness and contrast without affecting the gray balance and saturation of an
image. This is because chroma and hue values are always kept constant.
To prevent the color images from becoming too light or too dark, ScanWizard
Pro provides a Saturation Range
given chroma range will not be affected by the gradation curve manipulation.
Dragging the top-
right section of
the curve below
the default
diagonal line will
add shadow to
light tones
Dragging the
bottom-left section
of the curve above
the default diagonal
line will add
lightenness to
shadow tones
Click to create handles
from which to drag and
manipulate a portion of
the curve. The more
handles is created, the
easier and smoother it
is to manipulate the
curve. The handles
also allow you to
precisely isolate tone
areas that you want to
exclude from your
manipulation.
Gradation Gradation
Gradation tool enables you adjust the toner distribution of an image to Gradation
Saturation Range Saturation Range option. With this option, colors outside of a Saturation Range
Saturation Range
NO NO TE TE
NO NOTE NO TE To separately adjust toner of individual RGB channel, a TE
separate T T T T T one Cur one Cur one Curve ve ve ve ve tool is provided for such purpose. See section on one Cur
one Cur
"Optimizing Image with Tone Curve Tool" in this chapter.
Click to revert to
the Scan Wizard
Pro default setting
Click to revert to the
custom setting defined
right after current start
up
Reference: The Settings Window
Current Gradation method
used is "Curve" (default).
See "Line"
and "Gamma"
methods next
page
Click Auto to apply the auto
(based on ScanWizard Pro
algorithm) Gradation setting
of the prescan
Coordinates information of
cursor position within the
grids
Check to enable Saturation
Range option check box. Then
drag sliders or enter values in
the setting edit boxes to define
saturation (chroma) range
(colors outside the chroma
range will not be affected by
the Gradation curve)
Click to save current custom
(curve) parameters to
Gradation preset settings
71
