To close the Tag window

Clicking on the Close box closes the Tag window. To close all Tag windows,
holding down the Shift key, then click on any Close box.

Choosing Black and White Droppers

Holding down the Ctrl key enables the Black dropper. Holding down the Alt key
enables the White dropper.

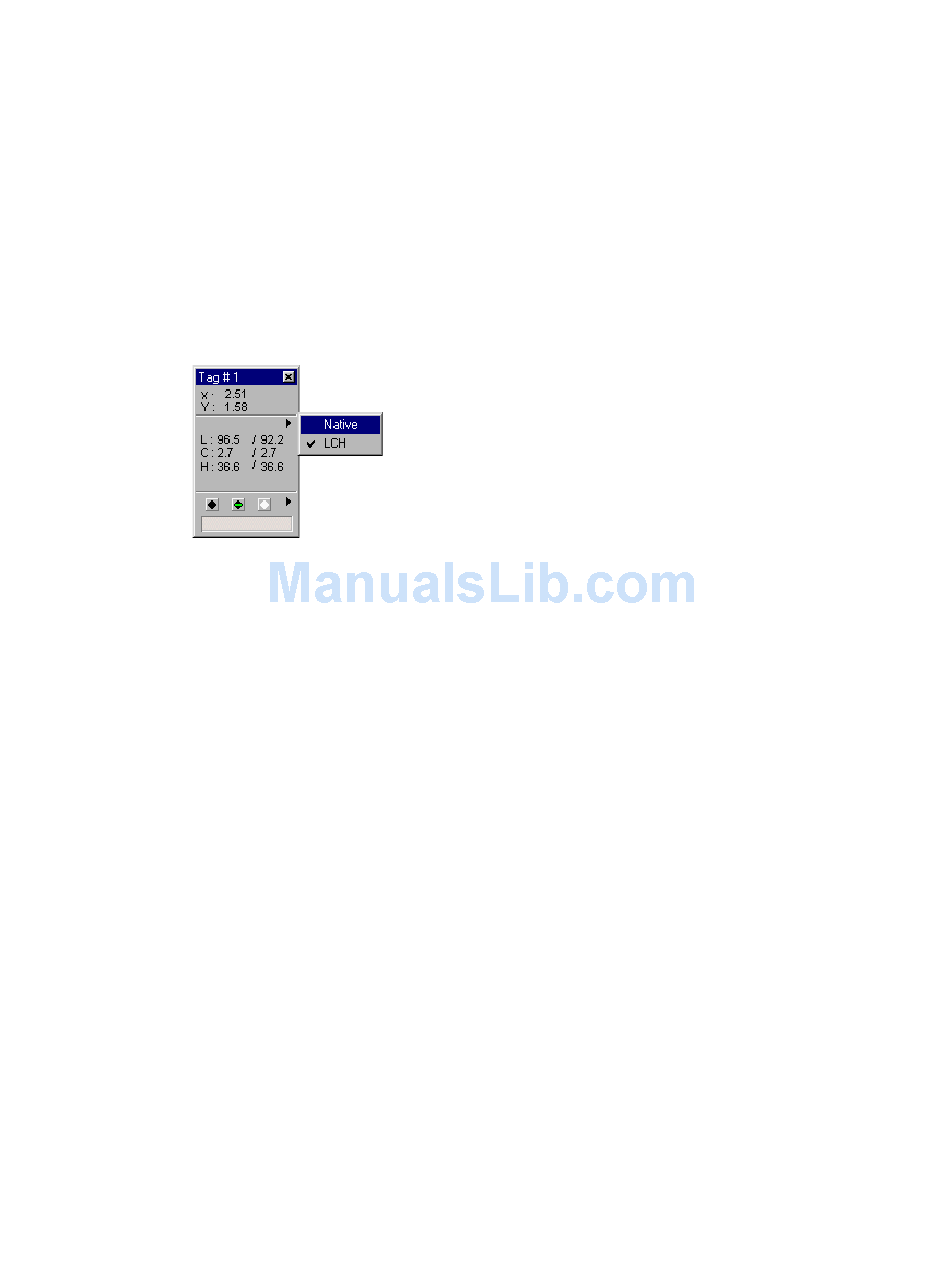

Input display Mode switch

To change the input display (Native color or LCH color), click on the Mode
Changing triangle.

Black, White, and Color diamonds

The black (for the shadow) and white (for the highlight) diamonds are used to
apply the shadow and highlight points indicated on the Tag windows to the
image.
•
•
•
•
42 Microtek ScanWizard Pro for Windows
To set the shadow point on the image to its Tag Windows value, click the
black diamond.
To set the highlight point on the image to its Tag Windows value, click the
white diamond.
The Color diamond: The color diamond is used to add or remove color cast
to the selected color. Remove color cast is the default, indicated by a minus
sign. To add color cast, click the title bar of the Tag Window, then hold
down the Alt key, the minus sign is changed to plus sign, than add the
color cast.
Color display: The color strip shows the color selected by the Tag Windows
