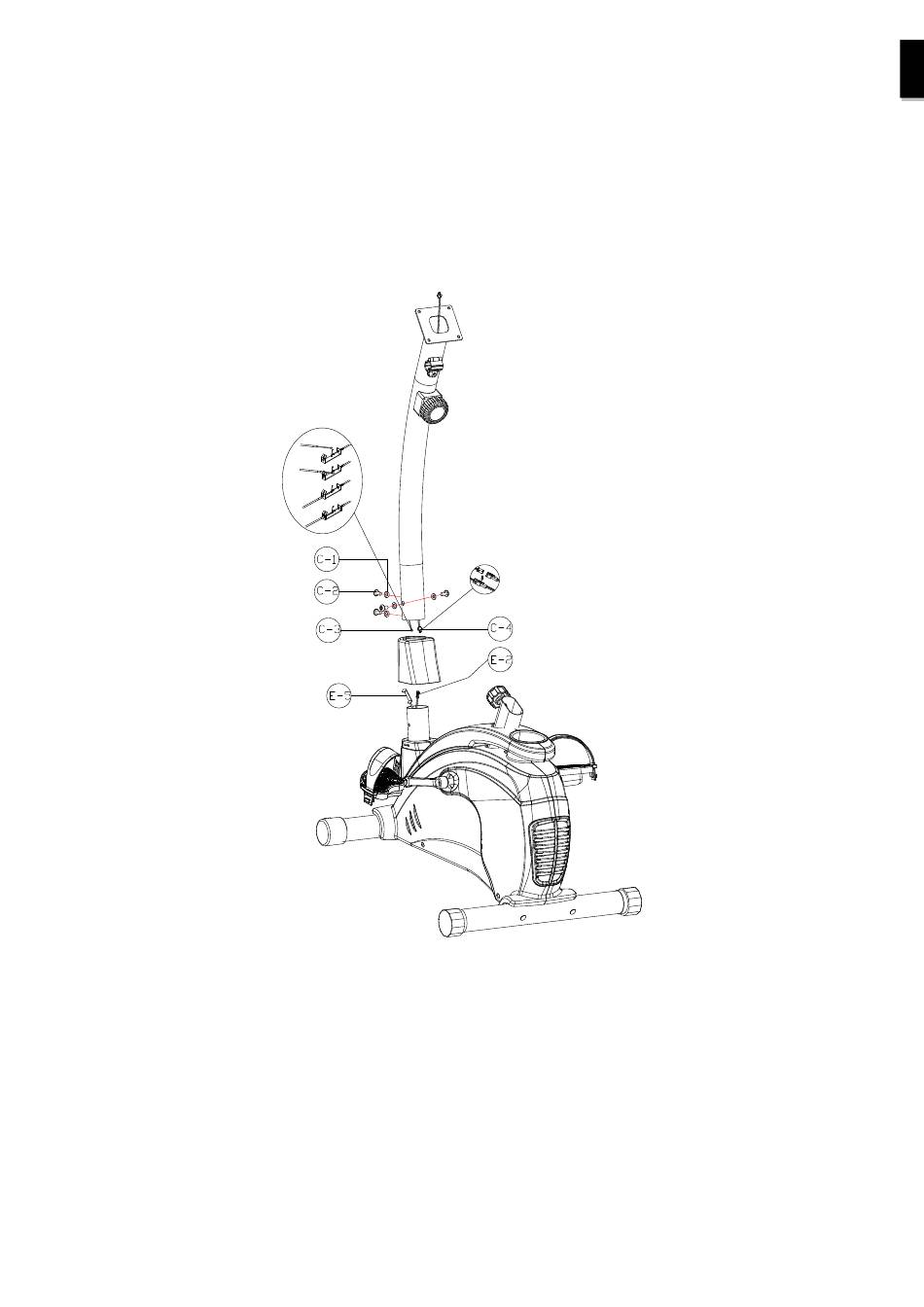

D) Carefully tuck any excess cable lengths into the neck of the Main Base and slide
the Mast (C) down onto the neck (mounting area) of the Main Base. (Note: Be
extremely careful not to pinch any of the cables during assembly). Align the mounting
holes and SECURELY fasten the Mast to the Main Base using the (previously
installed) 4-Button Head Allen Screws (C-2) and 4-Curved Washers (C-1).
Stage#4
A) Position the Handlebar Assembly (B) in the cradle mount of Handlebar Mast.
Place the Handlebar Clamp (I-4) over the middle of the Handlebar Assembly.
B) Route the Handlebar Assembly / Heart Rate Cable through the elongated hole in
the mast. Continue to route the cable up through the middle of the computer mounting
plate, as shown.
C) Push the Handlebar Clamp Cover (I-4) over the clamp mounting area. Lock (snap)
