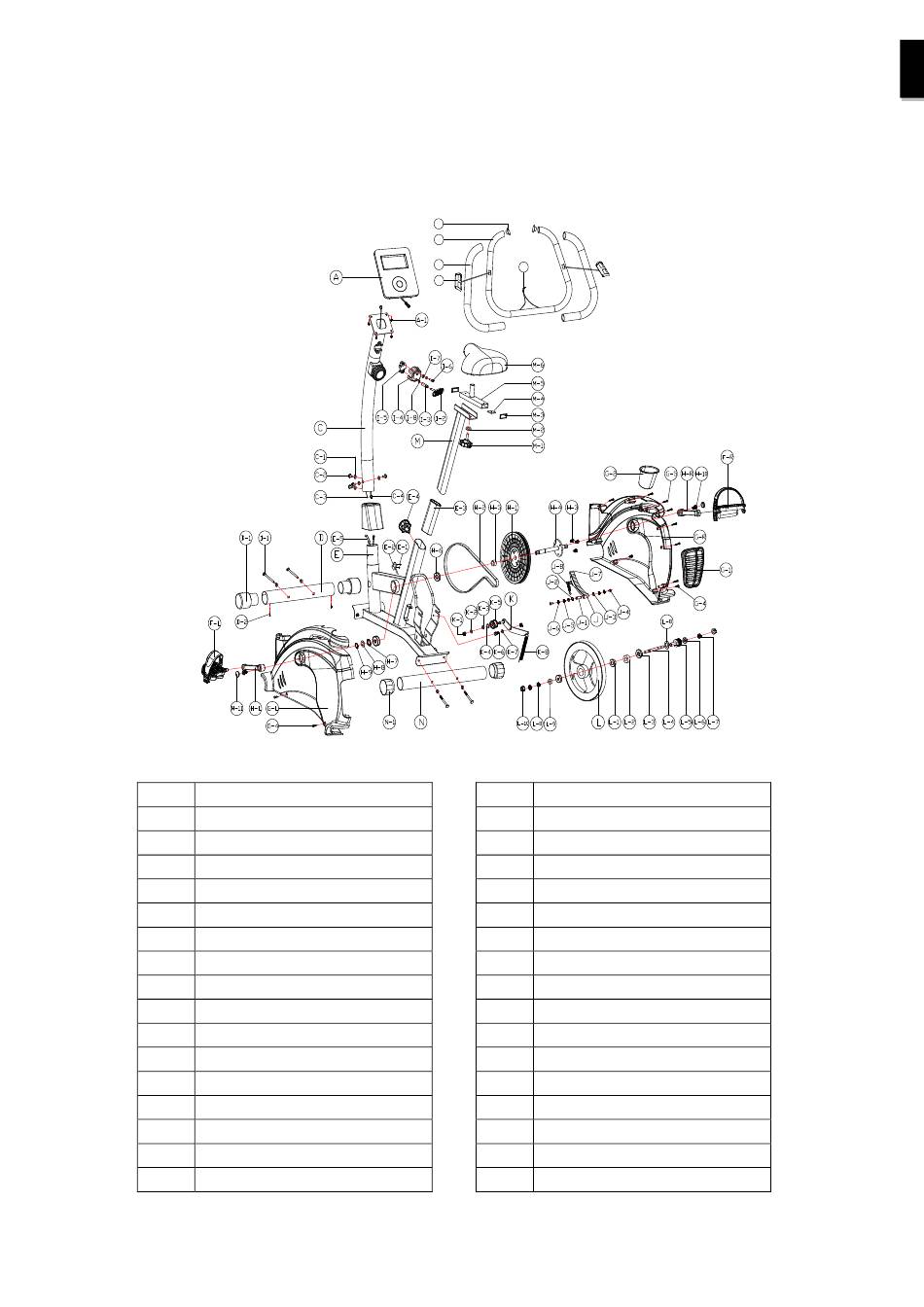

Exploded drawing
Part list
No. Item
A
Computer
A-1 Screw
B
Handlebar
B-1 Foam
B-2 Pulse sensor
B-3 End cap
B-4 Pulse cable
C
Console mast
C-1 Curve washer
C-2 Screw
C-3 Tension control cable(upper)
C-4 RPM sensor cable
D
Front stabilizer
D-1 Roller
D-2 Screw
E
Mainframe
B-3
B
B-1
B-4
B-2
E-1 Screw
E-2 RPM sensor
E-3 Sleeve for seat post
E-4 Seat post adjustable knob
E-5 Tension control cable(below)
F(R/L) Pedal
G-L Left cover
G-R Right cover
G-1 Cover
G-2 Drinking bottle holder
G-3 Drinking bottle
G-4 Screw
G-5 Screw
H-L Left crank
H-R Right crank
H-1 Drive pulley
H-2 Belt
48
E
