ESIE17-08 | Part 5. Appendix

5.1.1.2. Retrieve field settings BRC7

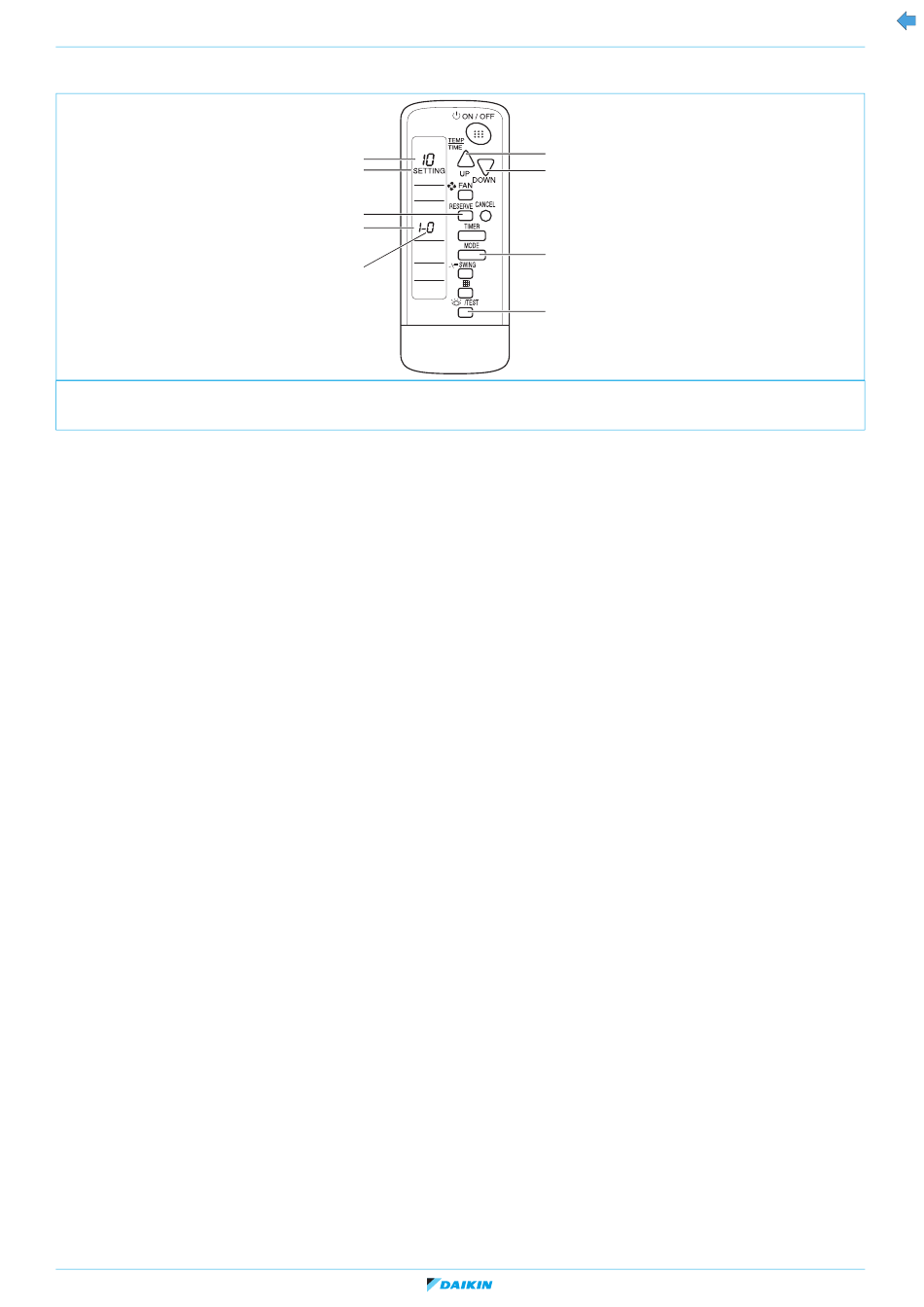

1. Mode No.
2. Field setting mode
3. RESERVE button
Setting
To set the field settings, you have to change:
• "Mode No."
• "First code No."
• "Second code No.".
To change the field settings, proceed as follows:
1. Hold down the INSPECTION/TEST button for at least 4 s during normal mode to enter the "Field setting mode".
2. Press the MODE button to select the desired "Mode No.".
3. Press the UP button to select the "First code No.".
4. Press the DOWN button to select the "Second code No."
5. Press the RESERVE button to set the present settings.
6. Press the INSPECTION/TEST button to return to the "Normal mode".
15/11/18 | Version 1.1
R32 Sky-Air RZAG-M
1
2
3
4
5
4. First code No.
5. Second code No.
6. UP button
6
7
8
9
7. DOWN button
8. MODE button
9. INSPECTION/TEST button
5.1. Field setting
Page 107
