ESIE17-08 | Part 3. Repair
2
1
1. Terminal block
2. Connectors
3. Screw
4. Main PCB 3-phase
Secondly, strip the Main PCB assembly (front)
13. Cut the tie wraps that fix the protection sheet; remove the protection sheet.
14. Cut the tie wrap.
15. Loosen and remove the screws (1) that fix the ground wiring.
16. Loosen and remove the screws (2) that fix the 4 terminal wires (blue, black, red, white).
17. Disconnect the 3 terminal connectors (3) from the terminal block.
18. Loosen and remove the screws that fix the terminal block.
Page 96
R32 Sky-Air RZAG-M

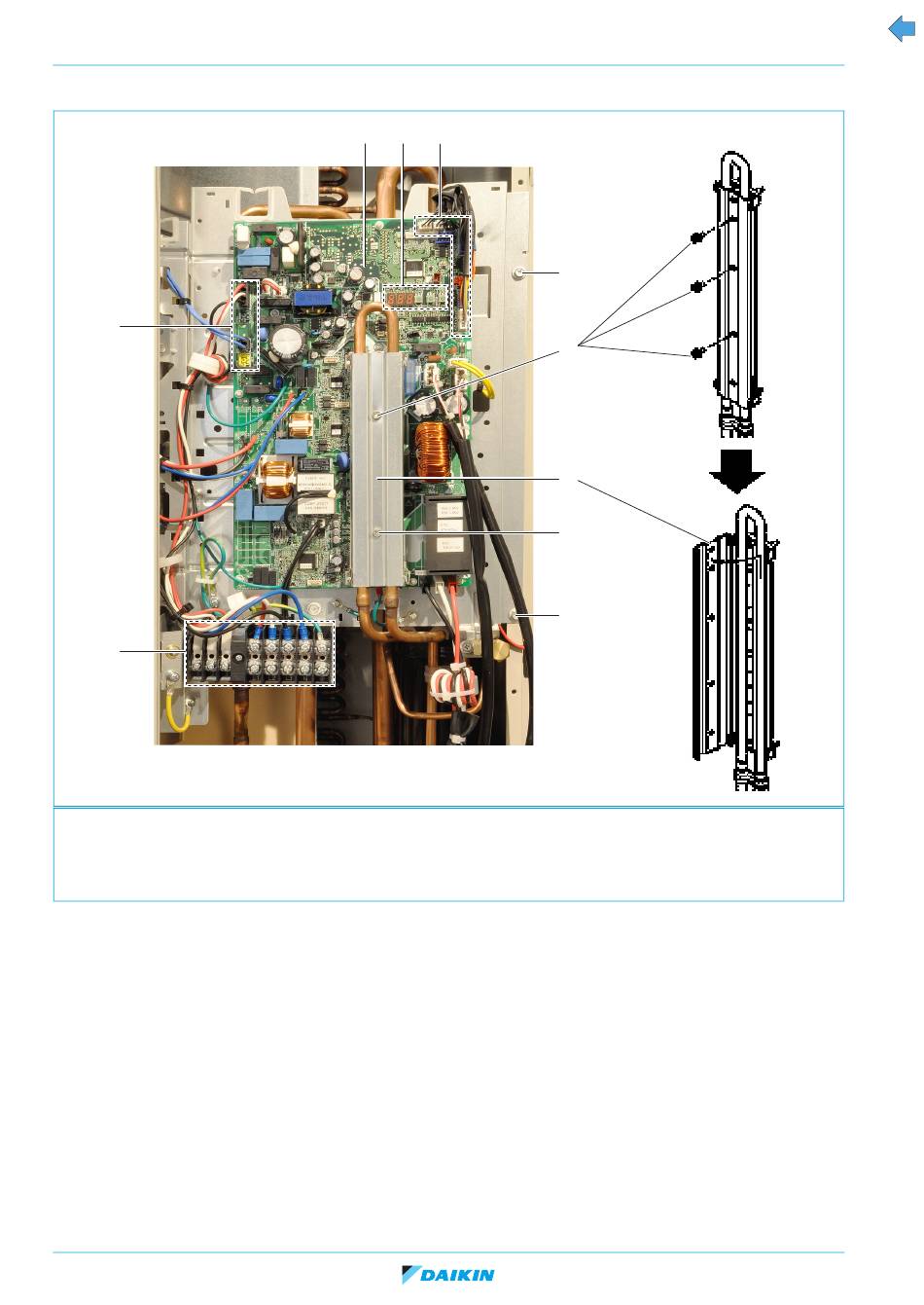

Figure 3-28: Removing the main PCB assembly (3-phase)
4 7
2
3
6
5
6
3
5. Lid
6. Screw
7. 7-segment display
3.3. Unit specific repair procedures
15/11/18 | Version 1.1
