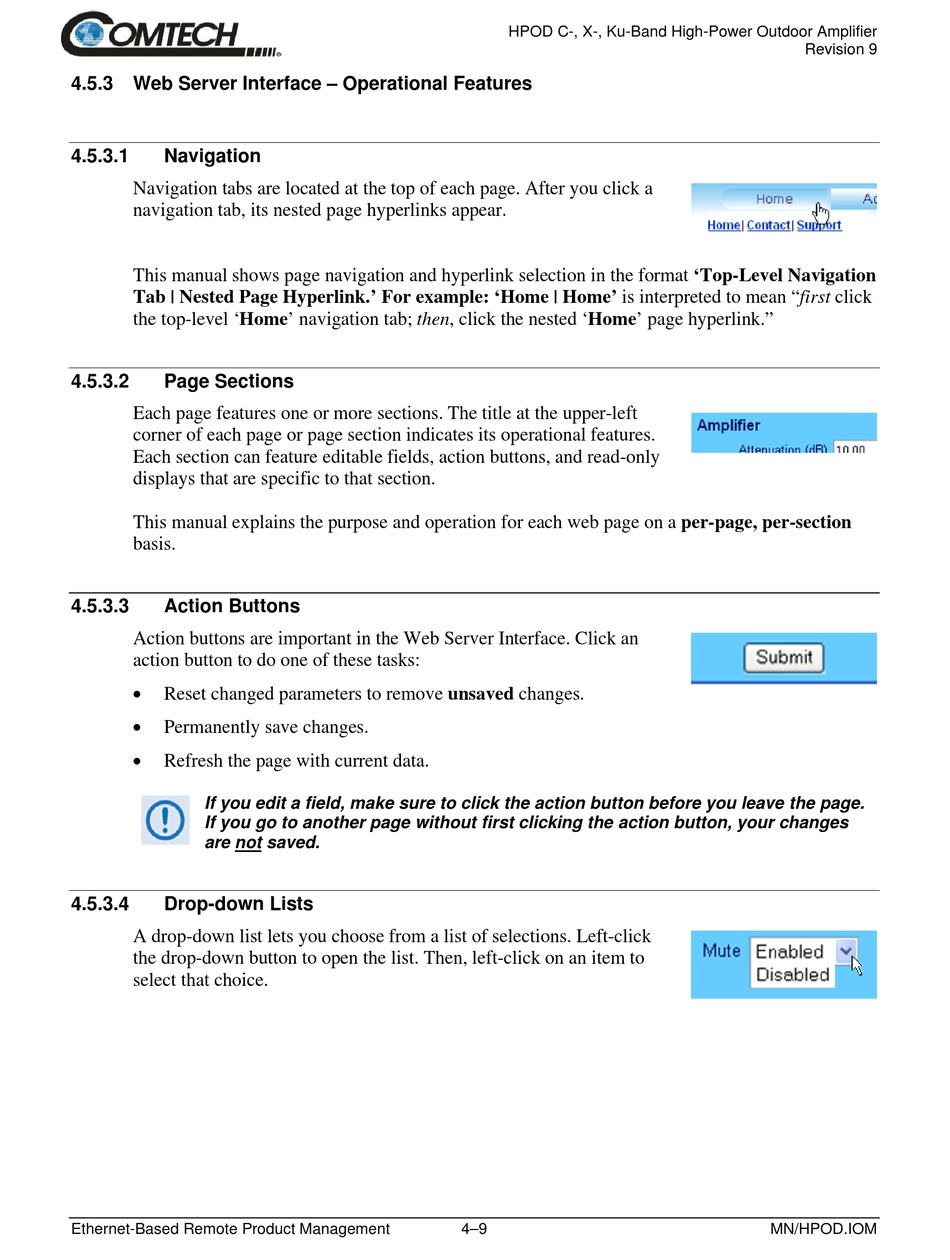

4.5.3 Web Server Interface – Operational Features
4.5.3.1
Navigation
Navigation tabs are located at the top of each page. After you click a
navigation tab, its nested page hyperlinks appear.
This manual shows page navigation and hyperlink selection in the format 'Top-Level Navigation
Tab | Nested Page Hyperlink.' For example: 'Home | Home' is interpreted to mean "first click
the top-level 'Home' navigation tab; then, click the nested 'Home' page hyperlink."
4.5.3.2
Page Sections
Each page features one or more sections. The title at the upper-left
corner of each page or page section indicates its operational features.
Each section can feature editable fields, action buttons, and read-only
displays that are specific to that section.
This manual explains the purpose and operation for each web page on a per-page, per-section
basis.
4.5.3.3
Action Buttons
Action buttons are important in the Web Server Interface. Click an
action button to do one of these tasks:
Reset changed parameters to remove unsaved changes.
Permanently save changes.
Refresh the page with current data.
If you edit a field, make sure to click the action button before you leave the page.
If you go to another page without first clicking the action button, your changes
are not saved.
4.5.3.4
Drop-down Lists
A drop-down list lets you choose from a list of selections. Left-click
the drop-down button to open the list. Then, left-click on an item to
select that choice.
Ethernet-Based Remote Product Management
HPOD C-, X-, Ku-Band High-Power Outdoor Amplifier
4–9
Revision 9
MN/HPOD.IOM
