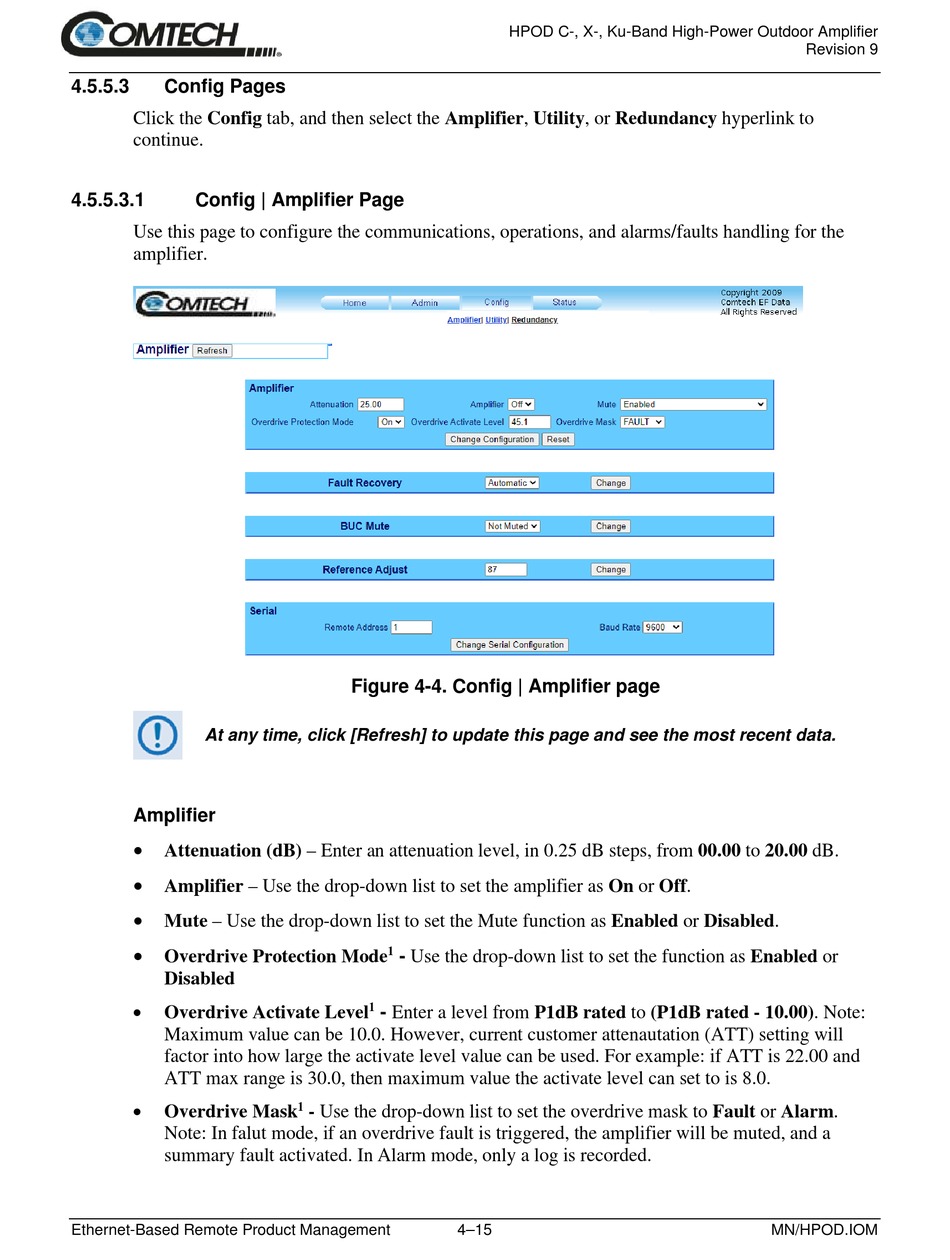

4.5.5.3 Config Pages
Click the Config tab, and then select the Amplifier, Utility, or Redundancy hyperlink to
continue.
4.5.5.3.1

Config | Amplifier Page

Use this page to configure the communications, operations, and alarms/faults handling for the
amplifier.
At any time, click [Refresh] to update this page and see the most recent data.
Amplifier

Attenuation (dB) – Enter an attenuation level, in 0.25 dB steps, from 00.00 to 20.00 dB.

Amplifier – Use the drop-down list to set the amplifier as On or Off.

Mute – Use the drop-down list to set the Mute function as Enabled or Disabled.

Overdrive Protection Mode
Disabled

Overdrive Activate Level
Maximum value can be 10.0. However, current customer attenautation (ATT) setting will
factor into how large the activate level value can be used. For example: if ATT is 22.00 and
ATT max range is 30.0, then maximum value the activate level can set to is 8.0.

Overdrive Mask
Note: In falut mode, if an overdrive fault is triggered, the amplifier will be muted, and a
summary fault activated. In Alarm mode, only a log is recorded.
Ethernet-Based Remote Product Management

Figure 4-4. Config | Amplifier page

1
-
Use the drop-down list to set the function as Enabled or
1
-
Enter a level from P1dB rated to (P1dB rated - 10.00). Note:
1
- Use the drop-down list to set the overdrive mask to Fault or Alarm.
