Power Interconnect Board; Removing The Power Interconnect Board - HP Visualize c100 Service Handbook

Field Replaceable Units
FRU Removal and Replacement

Power Interconnect Board

Before removing the power interconnect board, per-
form the following procedures:
•
•
Perform the following steps to remove the power
interconnect board:
1 Remove the three screws that secure the power intercon-

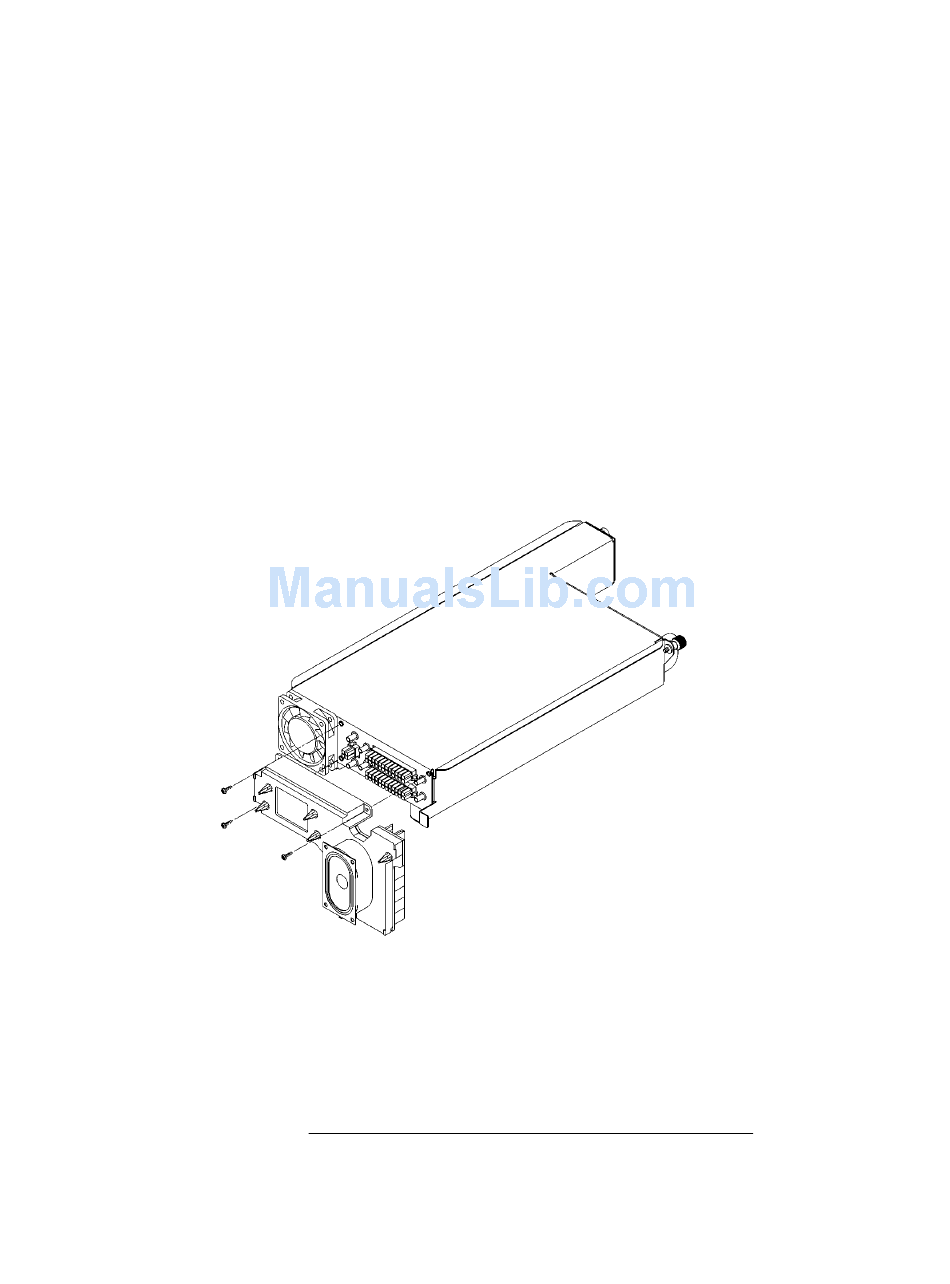

Figure 61

Removing the Power Interconnect Board

2 Pull the power interconnect board straight out from the
154
Remove the Main Tray Assembly
Remove the Power Supply
nect board to the power supply, as shown in Figure 61.
power supply to disconnect and remove it.
