Main Tray Assembly; Removing The Main Tray Assembly - HP Visualize c100 Service Handbook

Field Replaceable Units
FRU Removal and Replacement

Main Tray Assembly

Perform the following steps to remove the main tray
assembly from the system unit:
1 If installed, remove any locking device from the security
2 Completely loosen the four thumb screws on the rear of
Thumb Screws

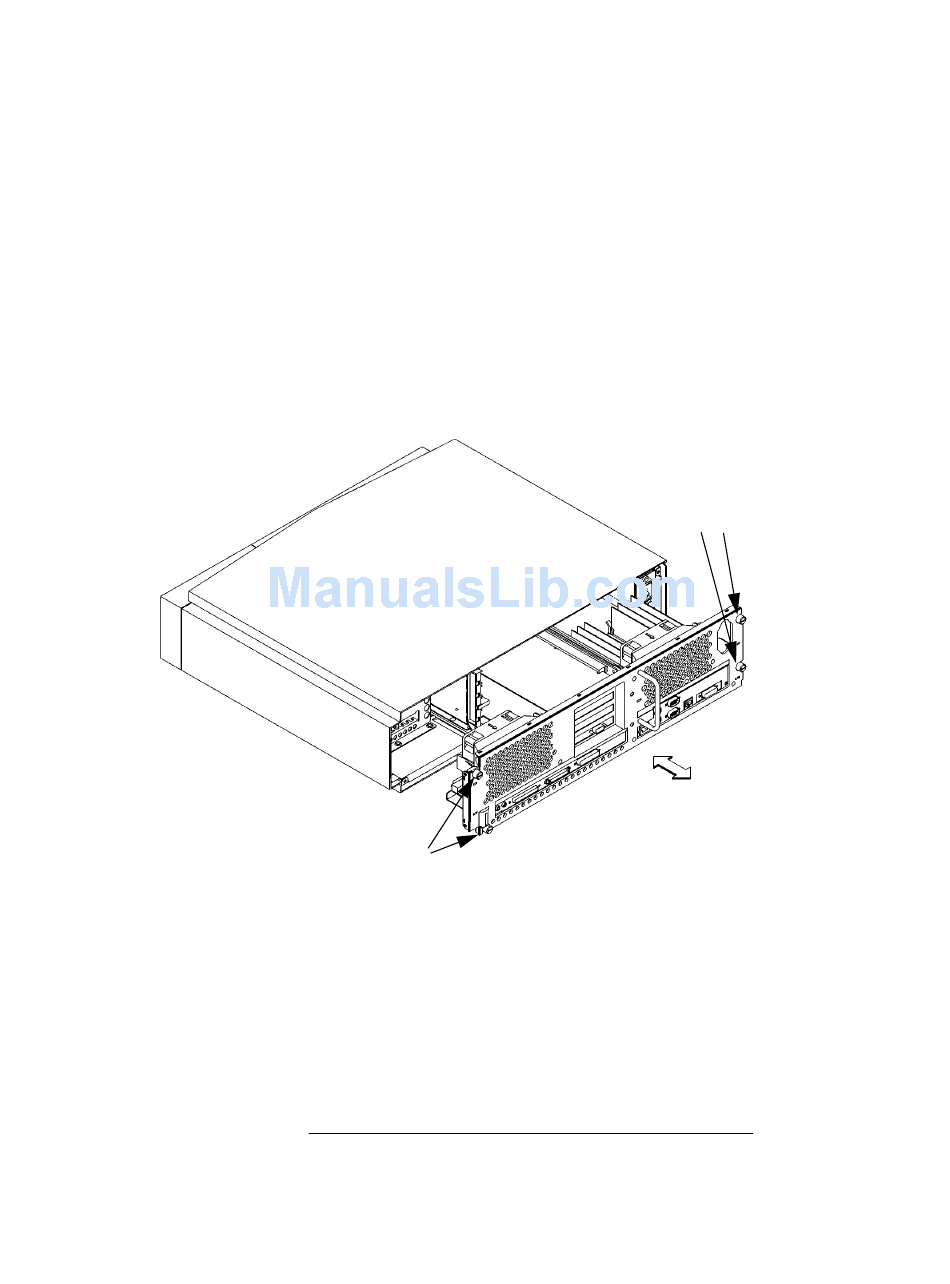

Figure 36

Removing the Main Tray Assembly

3 Place one hand on the top of the system unit and push,
4 Slide the main tray assembly out of the chassis.
124
loop on the rear of the system unit.
the system unit, as shown in Figure 36.
while using your other hand to pull on the handle on the
rear panel. See Figure 36.
Thumb
Screws
