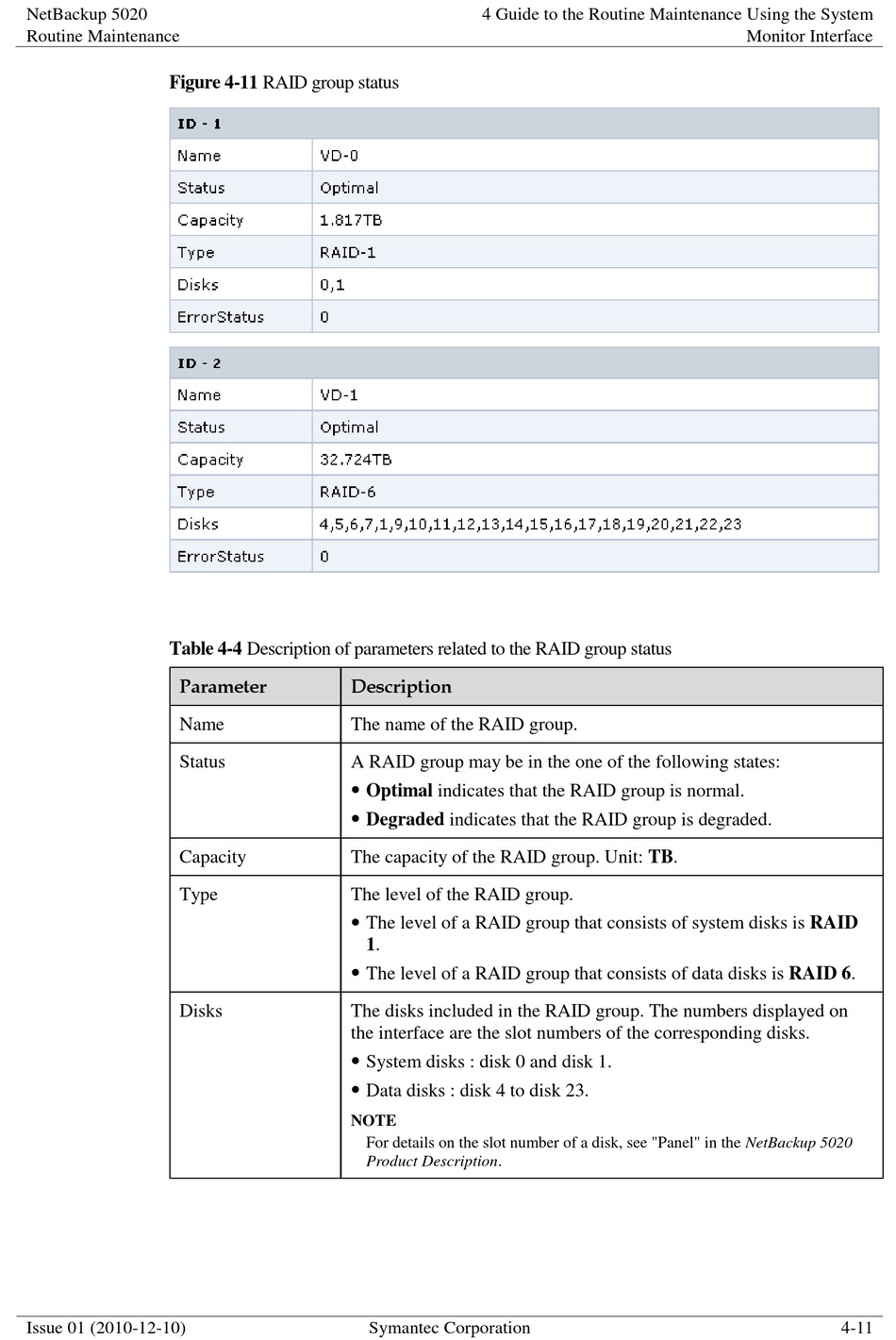

Figure 4-11 RAID group status

Table 4-4 Description of parameters related to the RAID group status

Parameter
Name
Status
Capacity
Type
Disks
Issue 01 (2010-12-10)
4 Guide to the Routine Maintenance Using the System
Description
The name of the RAID group.
A RAID group may be in the one of the following states:
 Optimal indicates that the RAID group is normal.
 Degraded indicates that the RAID group is degraded.
The capacity of the RAID group. Unit: TB.
The level of the RAID group.

The level of a RAID group that consists of system disks is RAID
1.
 The level of a RAID group that consists of data disks is RAID 6.
The disks included in the RAID group. The numbers displayed on
the interface are the slot numbers of the corresponding disks.
 System disks : disk 0 and disk 1.

Data disks : disk 4 to disk 23.
NOTE
For details on the slot number of a disk, see "Panel" in the NetBackup 5020
Product Description.
