NetBackup 5020
Routine Maintenance
5
7

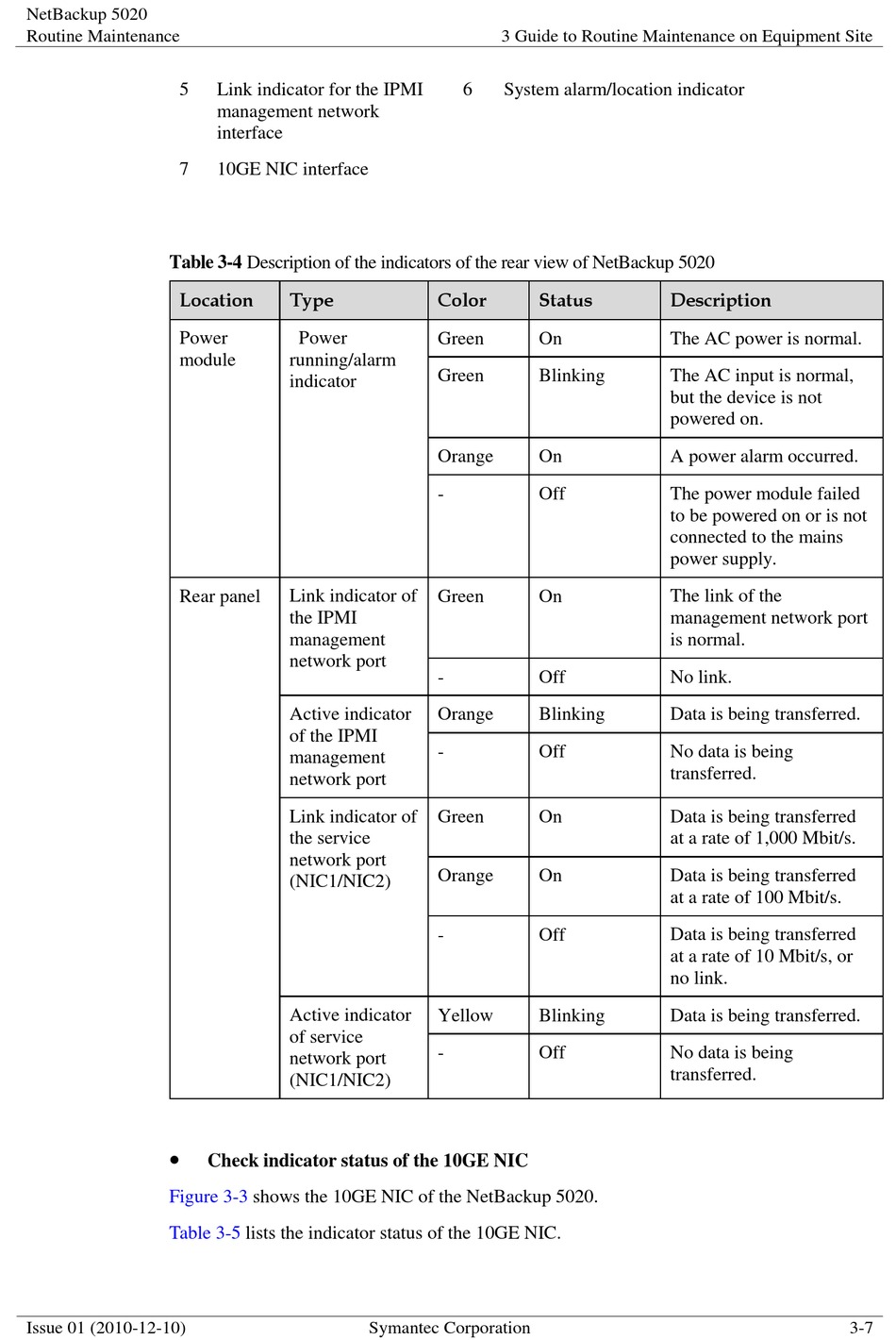

Table 3-4 Description of the indicators of the rear view of NetBackup 5020
Location
Power
module
Rear panel
Figure 3-3
Table 3-5
Issue 01 (2010-12-10)
Link indicator for the IPMI
management network
interface
10GE NIC interface
Type
Power
running/alarm
indicator
Link indicator of
the IPMI
management
network port
Active indicator
of the IPMI
management
network port
Link indicator of
the service
network port
(NIC1/NIC2)
Active indicator
of service
network port
(NIC1/NIC2)
Check indicator status of the 10GE NIC
shows the 10GE NIC of the NetBackup 5020.
lists the indicator status of the 10GE NIC.
Symantec Corporation
3 Guide to Routine Maintenance on Equipment Site
6
System alarm/location indicator
Color
Status
Green
On
Green
Blinking
Orange
On
-
Off
Green
On
-
Off
Orange
Blinking
-
Off
Green
On
Orange
On
-
Off
Yellow
Blinking
-
Off
Description
The AC power is normal.
The AC input is normal,
but the device is not
powered on.
A power alarm occurred.
The power module failed
to be powered on or is not
connected to the mains
power supply.
The link of the
management network port
is normal.
No link.
Data is being transferred.
No data is being
transferred.
Data is being transferred
at a rate of 1,000 Mbit/s.
Data is being transferred
at a rate of 100 Mbit/s.
Data is being transferred
at a rate of 10 Mbit/s, or
no link.
Data is being transferred.
No data is being
transferred.
3-7
