Interface Description
Table 1-4

2.7 RAID Card

This section describes the appearance and features of the RAID card.
The RAID card is plugged in the PCI-E x8 slot and used for expanding the eight SAS ports on
the mainboard by connecting the two internal Mini SAS cables to the two Mini SAS ports on
the backplane.
Appearance
Figure 2-9

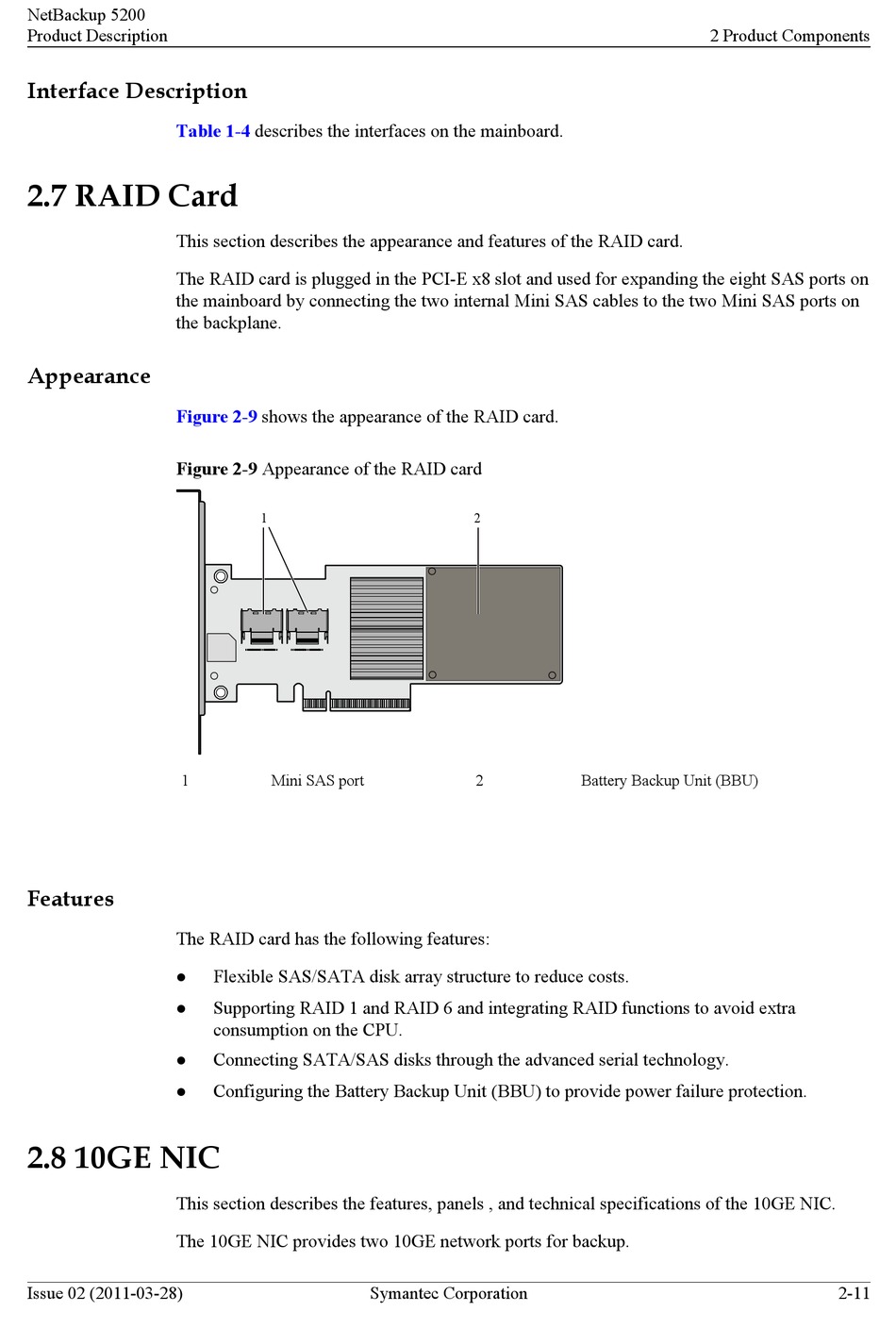

Figure 2-9 Appearance of the RAID card

1
Features
The RAID card has the following features:
l
l
l
l

2.8 10GE NIC

This section describes the features, panels , and technical specifications of the 10GE NIC.
The 10GE NIC provides two 10GE network ports for backup.
Issue 02 (2011-03-28)
describes the interfaces on the mainboard.
shows the appearance of the RAID card.
1
Mini SAS port
Flexible SAS/SATA disk array structure to reduce costs.
Supporting RAID 1 and RAID 6 and integrating RAID functions to avoid extra
consumption on the CPU.
Connecting SATA/SAS disks through the advanced serial technology.
Configuring the Battery Backup Unit (BBU) to provide power failure protection.
Symantec Corporation
2
2 Battery Backup Unit (BBU)
2 Product Components
