4 Guide to the Routine Maintenance Using the System
Monitor Interface

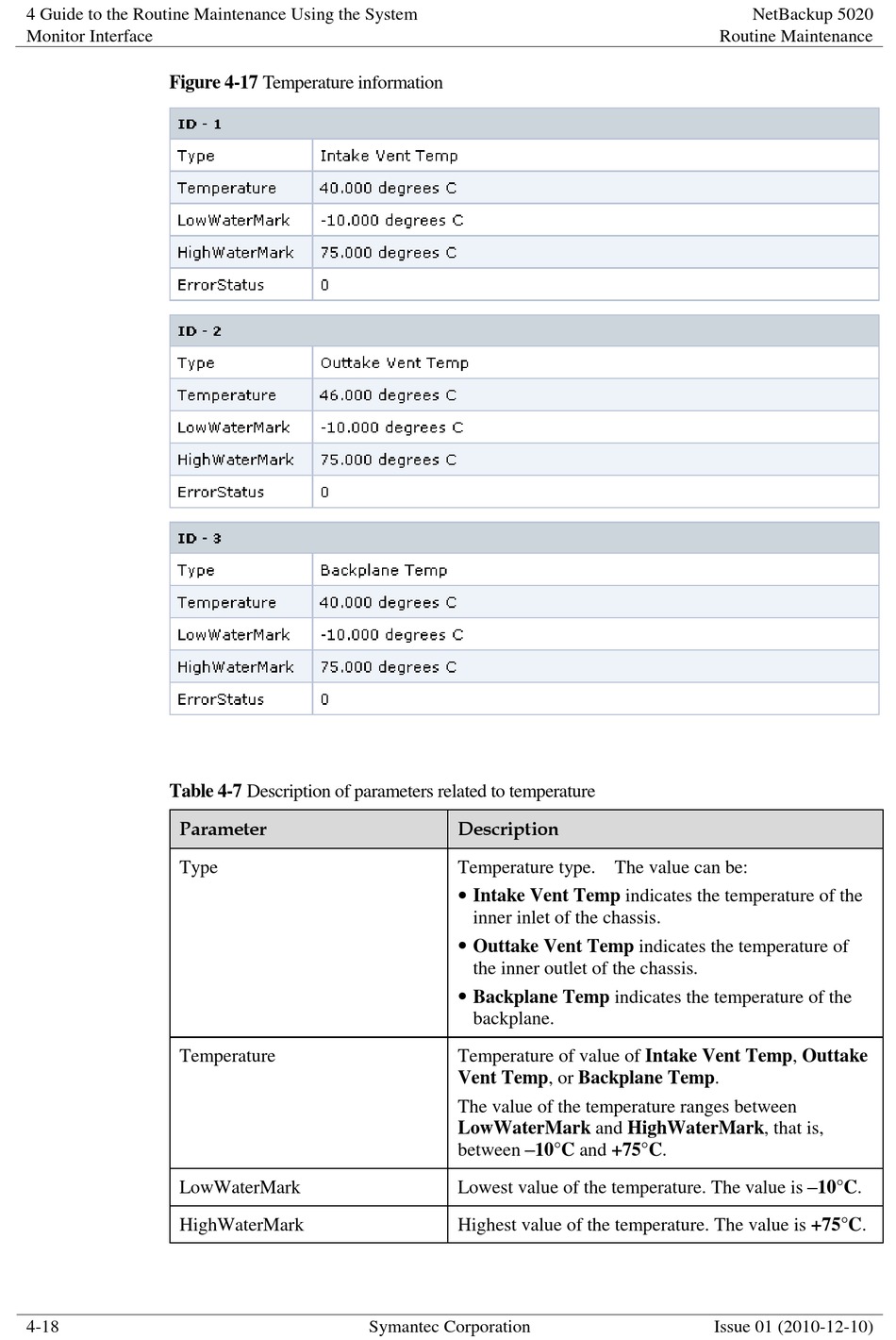

Figure 4-17 Temperature information

Table 4-7 Description of parameters related to temperature

Parameter
Type
Temperature
LowWaterMark
HighWaterMark
4-18
Description
Temperature type. The value can be:
 Intake Vent Temp indicates the temperature of the
inner inlet of the chassis.
 Outtake Vent Temp indicates the temperature of
the inner outlet of the chassis.

Backplane Temp indicates the temperature of the
backplane.
Temperature of value of Intake Vent Temp, Outtake
Vent Temp, or Backplane Temp.
The value of the temperature ranges between
LowWaterMark and HighWaterMark, that is,
between –10°C and +75°C.
Lowest value of the temperature. The value is –10°C.
Highest value of the temperature. The value is +75°C.
