Fuel Conversion/Gas Connections

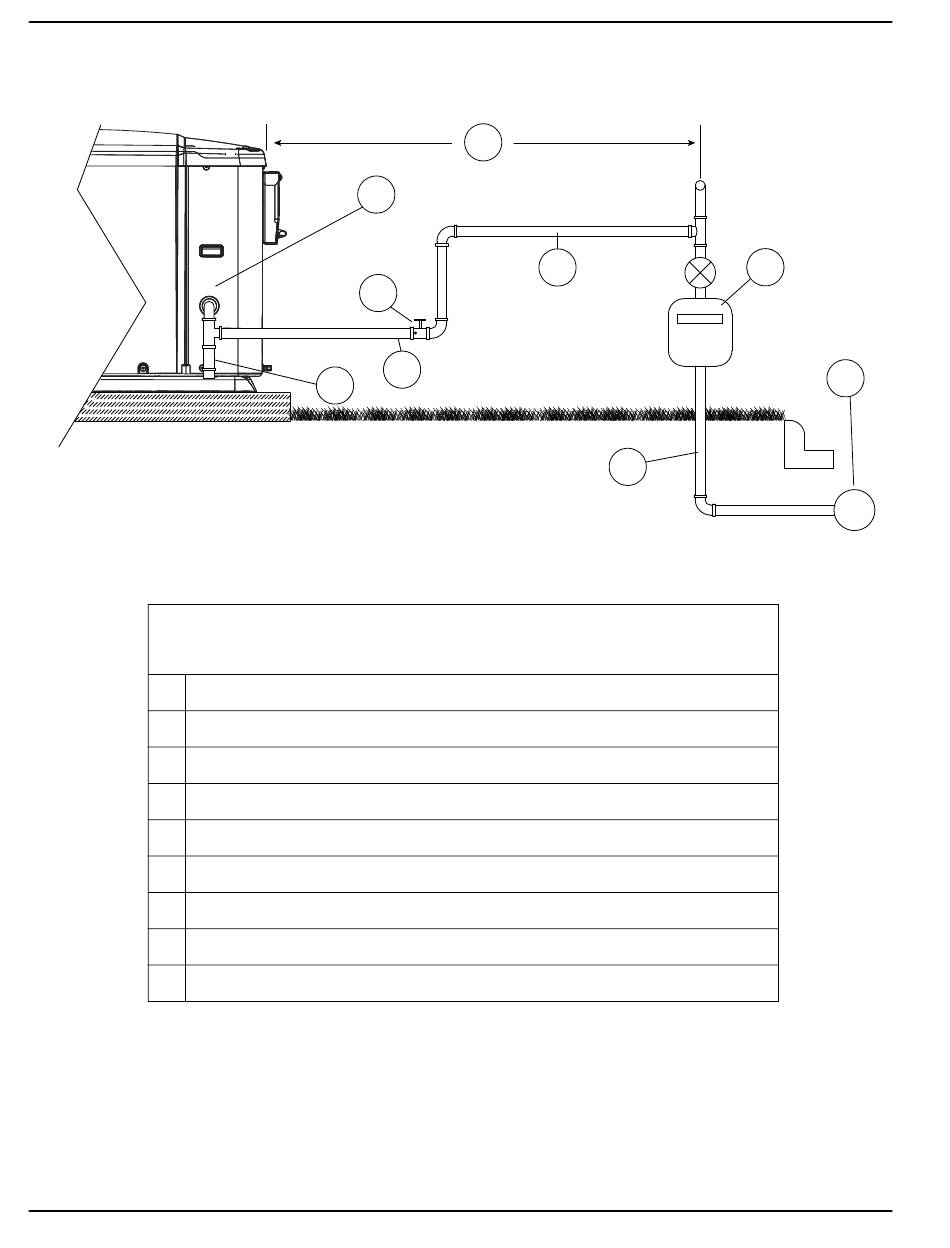

Natural Gas Vapor Installation (typical)
NG BTU = ft
Megajoules = m
A. Sediment Trap
B. Flexible Fuel Line
C. Manual Shut Off Valve With Pressure Port
D. BTU and Pressure Decal
E. Check Distance with Gas Provider
F. Fuel Pressure: 5–7 in. (9–13 mm) Water Column
G. Size Gas Meter for Generator Load Plus All Appliance Loads
H. For Underground Installations, Verify Piping System for Code Compliance
I. Gas Main
22
D
C
B
A
3
/h X 1000
3
/h X 37.26
Figure 5-5. Natural Gas Vapor Installation (typical)
E
F
H
