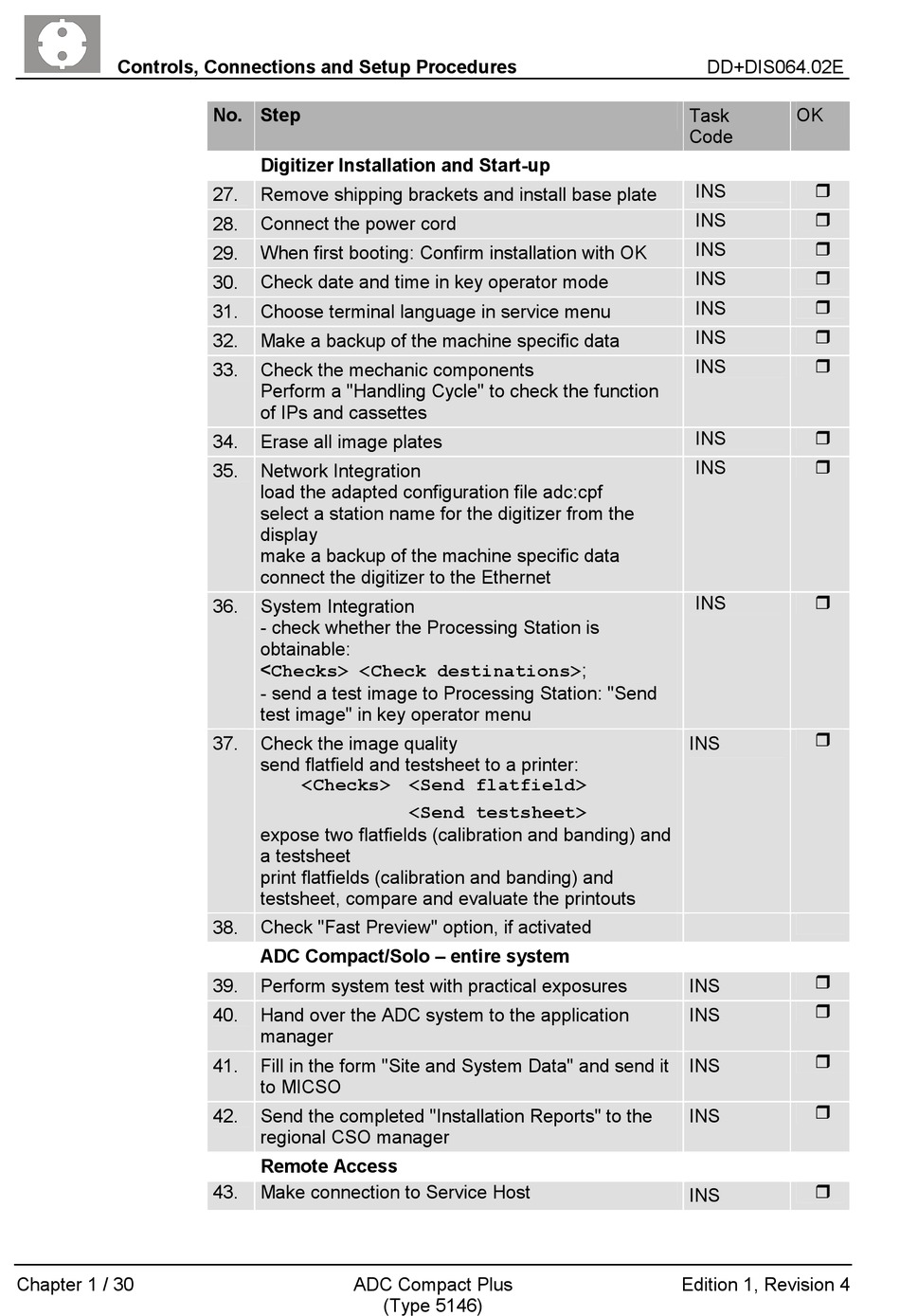

Controls, Connections and Setup Procedures
Chapter 1 / 30
No. Step
Digitizer Installation and Start-up
27.
Remove shipping brackets and install base plate
28.
Connect the power cord
29.
When first booting: Confirm installation with OK
30.
Check date and time in key operator mode
31.
Choose terminal language in service menu
32.
Make a backup of the machine specific data
33.
Check the mechanic components
Perform a "Handling Cycle" to check the function
of IPs and cassettes
34.
Erase all image plates
35.
Network Integration
load the adapted configuration file adc:cpf
select a station name for the digitizer from the
display
make a backup of the machine specific data
connect the digitizer to the Ethernet
36.
System Integration
- check whether the Processing Station is
obtainable:
<Checks> <Check destinations>;
- send a test image to Processing Station: "Send
test image" in key operator menu
37.
Check the image quality
send flatfield and testsheet to a printer:
<Checks> <Send flatfield>
expose two flatfields (calibration and banding) and
a testsheet
print flatfields (calibration and banding) and
testsheet, compare and evaluate the printouts
Check "Fast Preview" option, if activated
38.
ADC Compact/Solo – entire system
39.
Perform system test with practical exposures
40.
Hand over the ADC system to the application
manager
41.
Fill in the form "Site and System Data" and send it
to MICSO
42.
Send the completed "Installation Reports" to the
regional CSO manager
Remote Access
43.
Make connection to Service Host
ADC Compact Plus
<Send testsheet>
(Type 5146)
DD+DIS064.02E
Task
OK
Code
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
r
INS
Edition 1, Revision 4
