Controls, Connections and Setup Procedures
DD+DIS064.02E
A
B

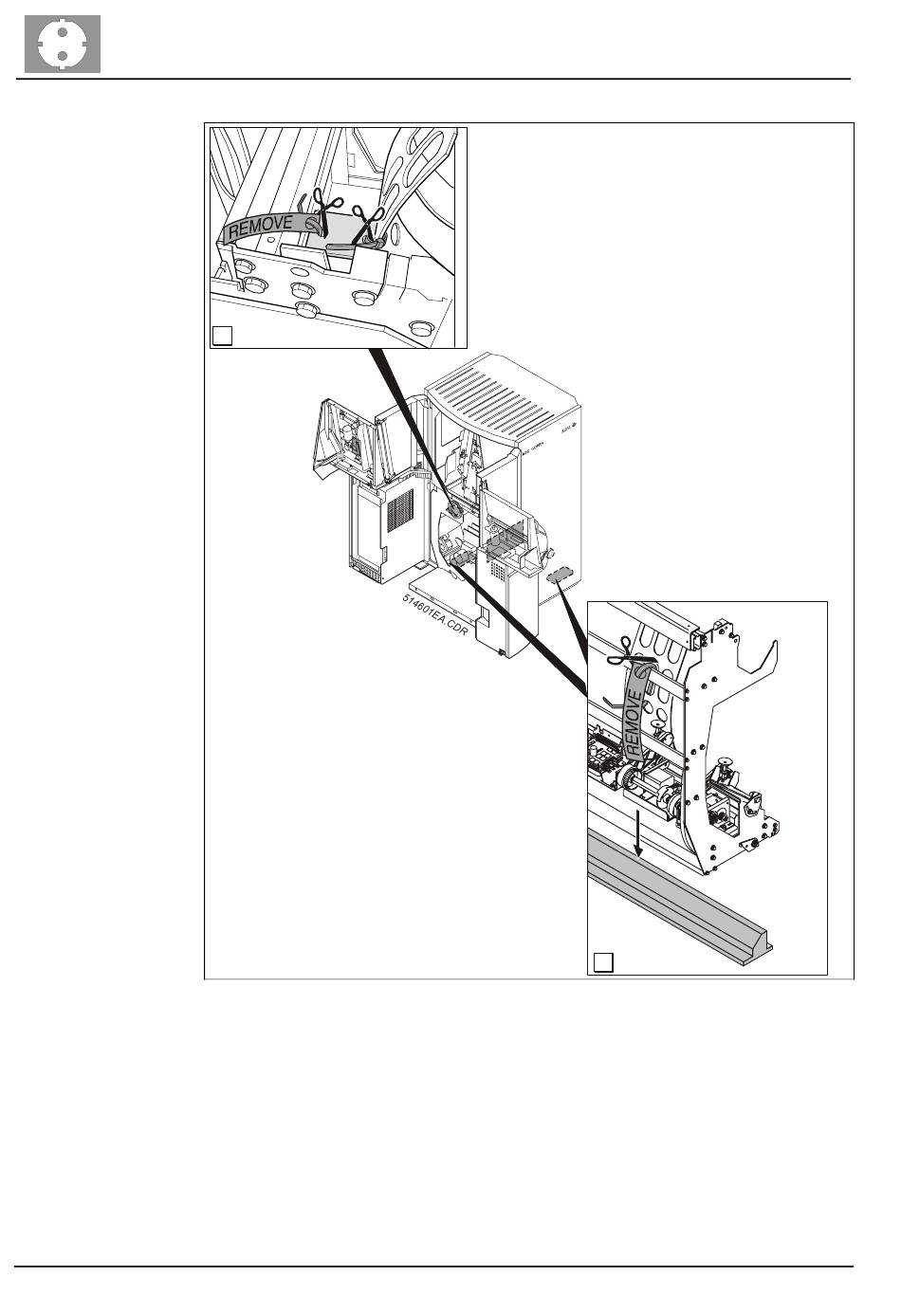

Figure 5
Unplug the two cables at both IP transport units.
Loosen screws at the securing bar, then press securing bar down to
A: Slide out the IP – transport unit left (postscan), cut the two cable ties and
remove the plastic plate.
- Slide out the IP – transport unit right (prescan)
B: - Remove the polystyrene blocks from both transport units very cautiously.
