AGFA ADC Compact Plus Manual page 25

DD+DIS064.02E
6.2.2
6.2.3
Edition 1, Revision 4
Controls, Connections and Setup Procedures
Integrating ADC Compact Plus into an independent, pure ADC Network

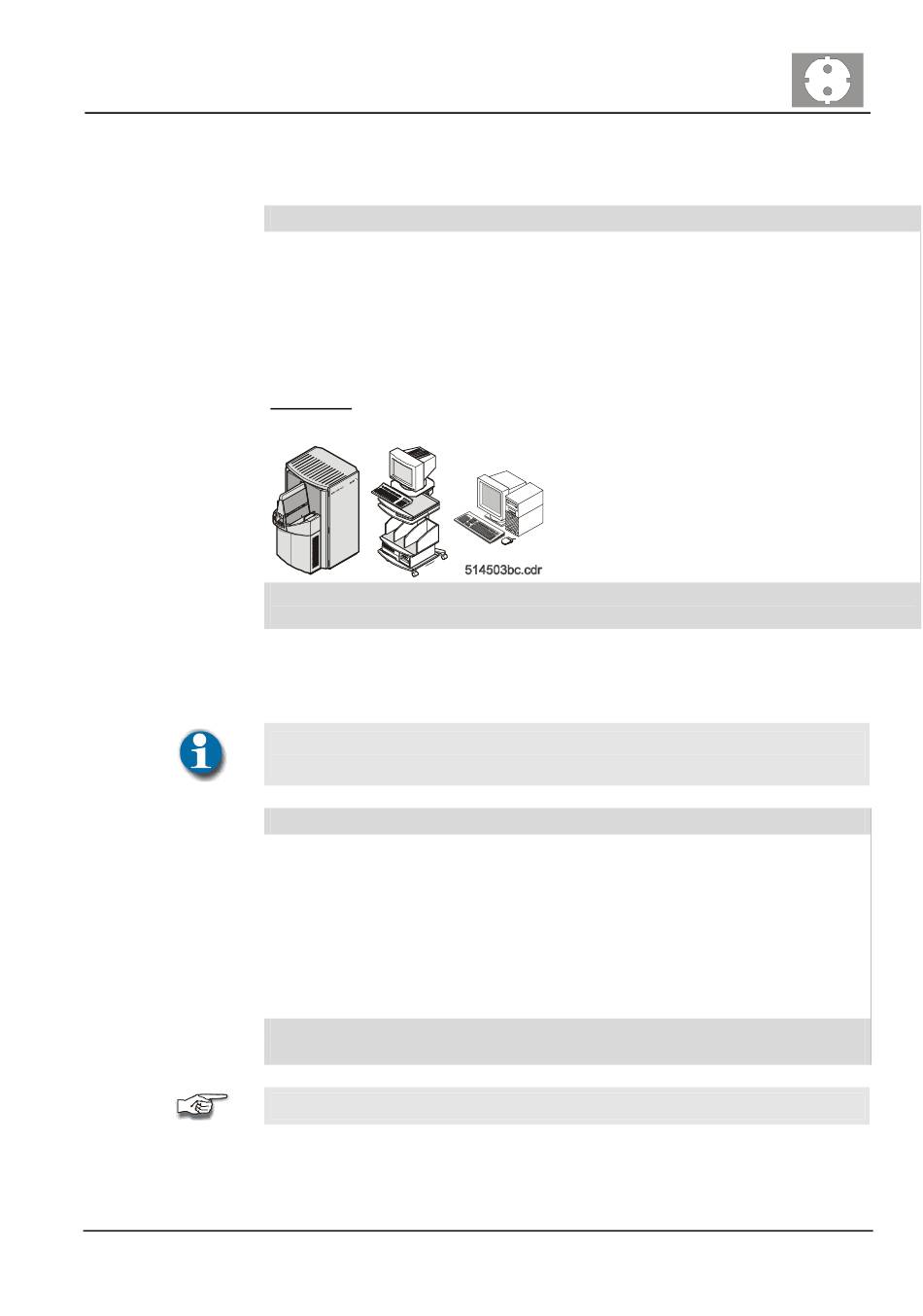

Pure ADC Network (minimum configuration)
· 1 ADC Compact Plus digitizer
·
1 Processing Station
·
1 Preview/ID Station
In this case the ex factory settings for the ip- address (adcc1 192.9.200.199) are
being used.
A new configuration of the machine is not required.
Measures:
·
Connect the Ethernet.
The Digitizer is now integrated to the Network (approx. 15 min).
Proceed with 6.2.4
Integrating ADC Compact Plus into an existing Network
In this case the ip-address has to be adapted to an existing network. This
happens by means of the cpf–file created beforehand.
Integrating into Existing Network
1. Insert the floppy disk with the configuration file " adc.cpf".
2. Select:
<Install from floppy>
<cpf-File>
3. Choose a name suggested on the display.
4. Follow the online instructions.
5. Connect ADC Compact Plus to the Ethernet.
The Digitizer is now integrated into the Network (approx. 15 min).
Proceed with 6.2.4
The cpf – file has to be installed on every device of the system.
ADC Compact Plus
(Type 5146)
Chapter 1 / 23
