Controls, Connections and Setup Procedures
7.1.2
Chapter 1 / 26

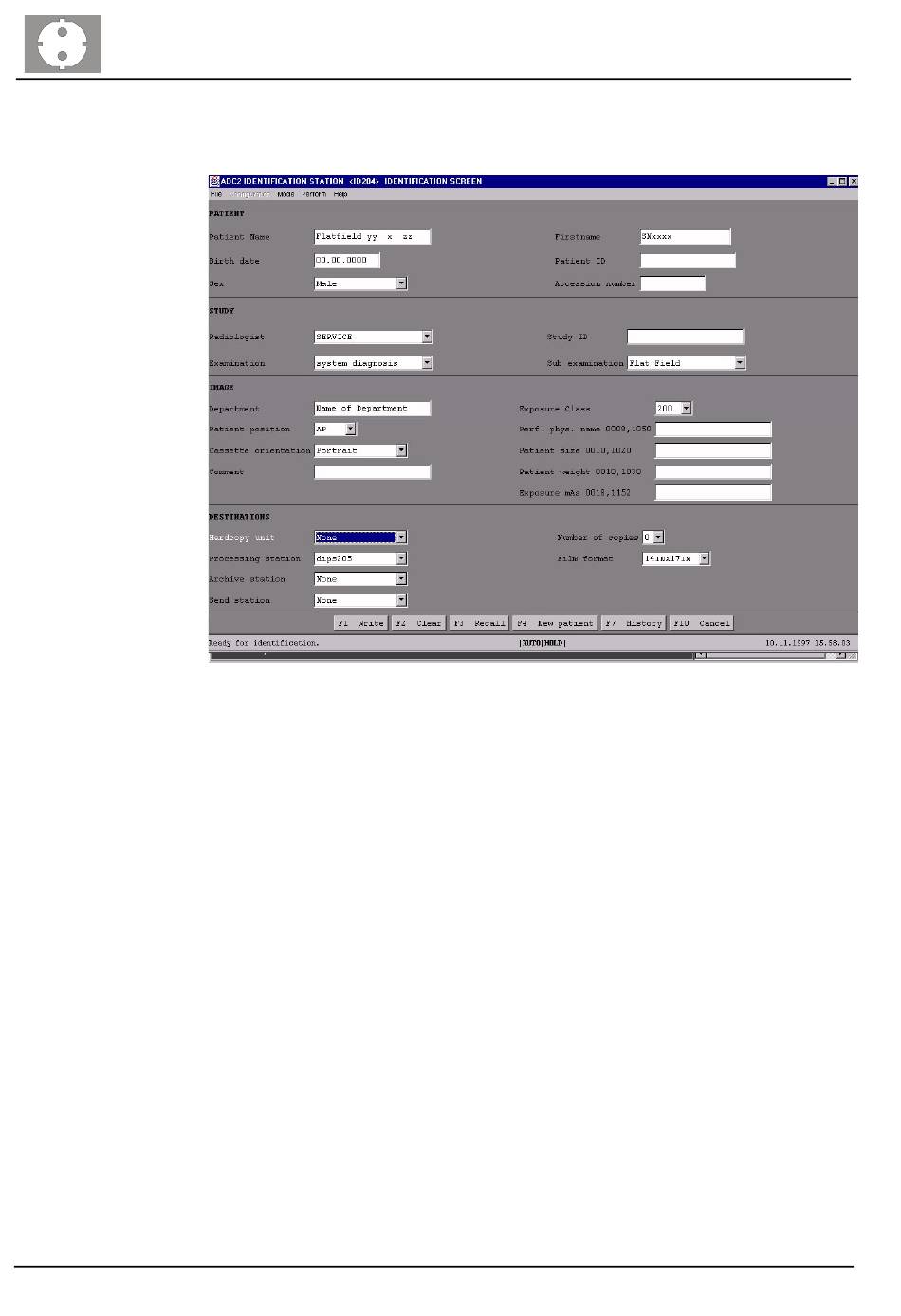

· Identify the cassette on the ID Station as follows:
-select in the field Examination: <system diagnosis>
-select in the field Sub-examination:<Flat field>
-confirm the Exposure class: <200>
· Insert the cassette into the Digitizer. Print the image on a printer with a
window setting of 0.6 without changing the level setting on the Processing
Station.
· Check plates for running askew with a test sheet.
Exposure and Evaluation of a Test Sheet
· One Testsheet for quality comparison can be sent to a printer via Service-
Menu
<CHECKS>
<SEND TESTSHEET>
· Print the testsheets via Processing Station (window 0.6).
· Insert a test sheet (CM+7.8966.1235.0) into the cassette and expose with
the following parameters:
10 mAs - 77 kV - approx. 1,3m distance .
