Comtech EF Data XTRT-400C Operation And Installation Manual page 176

8
THE DATA CONTAINED HEREIN CONSTITUTES PROPRIETARY INFORMATION OF
XICOM TECHNOLOGY AND SHALL NOT BE USED, DUPLICATED, OR DISCLOSED IN
WHOLE OR IN PART, EXCEPT FOR RIGHTS EXPRESSLY GRANTED BY CONTRACT,
WITHOUT THE PRIOR WRITTEN AUTHORIZATION OF XICOM TECHNOLOGY.
D
4X .15 X 45 ,
CHAMFER
5.00
2X 4.560
4.600 THRU
2.500
4X .161 THRU
C
2X .435
0
.125
-101
(AL ALY 5052-H32 .125 THICK)
5.00 O.D .060
B
A
-102
(AL ALY 5052-H32 .060 THICK)
8
EAR EXPORT CONTROLLED: The information contained in this Manual refers or relates to a product that is subject
to the U.S. Export Administration Regulations (EAR). Transfer of data herein by any means to a Foreign Person,
whether in the U.S. or abroad, may require an export license from the U.S. Department of Commerce.
7 6
EAR EXPORT CONTROLLED - THE ATTACHED DOCUMENTS CONTAIN TECHNOLOGY AND TECHNICAL DATA
WITHIN THE DEFINITION OF THE U.S. EXPORT ADMINISTRATION REGULATIONS (EAR). TRANSFER OF THIS
DATA BY ANY MEANS TO A FOREIGN PERSON, WHETHER IN THE U.S. OR ABROAD, MAY REQUIRE A U.S.
DEPARTMENT OF COMMERCE EXPORT LICENSE OR OTHER APPROVAL.
OPEN
ADHESIVE BACKING
6
DIM "A"
7 6
5 4
4X .15 X 45 ,
CHAMFER
5.00
2X 4.560
4.600 THRU
2.500
OPEN
4X .161 THRU
2X .435
0
.030
-103
(.030 THK PORON,
MFG P/N 4701-40-5030-04-1PSA)
6
DIM "A"
-103 -101 -102
USE EPOXY TO SEAL THE
ENTIRE INSIDE OF SEAM DUCT
(ADHESIVE BACKING)
5 4
3
ECO
N/A
N/A
N/A
12402
17623
NOTES: UNLESS OTHERWISE SPECIFIED
1. FINISHED PART OR ASSEMBLY SHALL BE IAW XICOM HAZARDOUS
SUBSTANCE SPECIFICATION 223-2000-001.
2. MATERIAL:
-101: AL ALY 5052-H32 .125 THICK.
-102: AL ALY 5052-H32 .060 THICK.
-103: .030 THK PORON, MFG P/N 4701-40-
5030-04-1PSA, ADHESIVE ONE SIDE.
(REF XICOM P/NG 675-0101-001)
3. ALL WELDS ARE TO BE IAW BEST COMMERCIAL PRACTICES.
4. DEBURR AND BREAK SHARP EDGES .010 MAX.
5. PLATING SHALL BE IAW XICOM METAL FINISHING STANDARD 223-2003-001,
FINISH TYPE CODE 4.20.
6 MAKE ASSY PER DIM "A". THE LAST THREE DIGITS OF THE XICOM P/N,
READ AS XXX, INDICATES THE LENGTH OF THE DUCT IN INCHES WITH
THE LAST DIGIT INDICATING TENTHS OF AN INCH. (e.g.: -025 IS 2.5
INCHES IN LENGTH).
7 MARK PART NUMBER (APPROPRIATE DASH NO.), REV AND VENDOR IDENT.
IAW XICOM PART MARKING STANDARD 223-2005-001, METHOD CODE 7.1.
LOCATE APPROX WHERE SHOWN.
(-102)
(-101)
7
MATERIAL UNLESS OTHERWISE SPECIFIED DIMENSIONS
APPROVALS
ARE IN INCHES. TOLERANCES ARE:
DRAWN
DECIMALS ANGLES SURFACE
SEE NOTES B. NGUYEN
.X ± ± 1
.XX ± .03
CHECKED
.XXX ± .010
P. MULLIGAN
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M
FINISH ENGR
THIRD ANGLE PROJECTION
T. FISHER
ELECTRONIC
SEE NOTES
APPROVAL
SEE PLM
DO NOT SCALE DRAWING
3
2 1
REVISIONS
REV DESCRIPTION DATE APPROVED
1 INITIAL RELEASE 6/09/03 PM/BS
2 SEE PREVIOUS 6/17/03 DG/DC
3 SEE PREVIOUS 6/19/03 DG/DC
A SEE ECO 7/29/04 RB/DG
D
B SEE ECO 10/21/11 BN/TF
C
8X .50 TACK WELDS,
EVENLY SPACE
B
A
DATE XICOM
TECHNOLOGY
10/7/2011

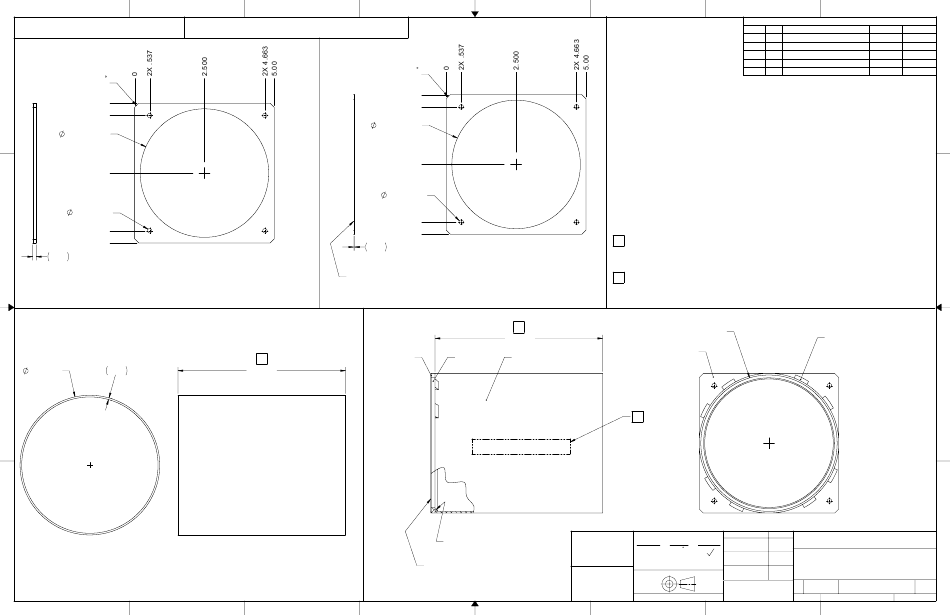

DUCT, EXHAUT 5" DIA, 5 1/4
- RACK
-
SIZE CAGE CODE / FSCM DWG NO REV
D 381-1460-XXX B
SCALE
3/2 SHEET 1 OF 1
2 1
