Comtech EF Data XTRT-400C Operation And Installation Manual page 173

8
THE DATA CONTAINED HEREIN CONSTITUTES PROPRIETARY INFORMATION OF
XICOM TECHNOLOGY AND SHALL NOT BE USED, DUPLICATED, OR DISCLOSED IN
WHOLE OR IN PART, EXCEPT FOR RIGHTS EXPRESSLY GRANTED BY CONTRACT,
WITHOUT THE PRIOR WRITTEN AUTHORIZATION OF XICOM TECHNOLOGY.
D
AC POWER SWITCH
POWER, INPUT SOCKET
VDE, 16A, 100-260 VAC
IEC 320/C20
P/N EN60320
C
2.67
.70
GROUND STUD
10-32 X .38 LG
B
1
8X 10-32 UNF-2B,
.37 MAX
A
DETAIL "B"
(CPRG-137 TAPPED)
ROTATED 90
SCALE 2/1
8
EAR EXPORT CONTROLLED: The information contained in this Manual refers or relates to a product that is subject
to the U.S. Export Administration Regulations (EAR). Transfer of data herein by any means to a Foreign Person,
whether in the U.S. or abroad, may require an export license from the U.S. Department of Commerce.
7 6
EAR EXPORT CONTROLLED - THE ATTACHED DOCUMENTS CONTAIN TECHNOLOGY AND TECHNICAL DATA
WITHIN THE DEFINITION OF THE U.S. EXPORT ADMINISTRATION REGULATIONS (EAR). TRANSFER OF THIS
DATA BY ANY MEANS TO A FOREIGN PERSON, WHETHER IN THE U.S. OR ABROAD, MAY REQUIRE A U.S.
DEPARTMENT OF COMMERCE EXPORT LICENSE OR OTHER APPROVAL.
12.345
5X 10.43
8.68
W/G SW1, HD-15 (SOCKET)
AIR DUCT
W/G SW1, HD-15 (SOCKET)
4X MOUNTING HOLES
6-32 X .31 MAX
W/G FLANGE
(SEE TABLE 2)
AIR INLET
2X 1.00
8.87
10.59
1
4X 6-32 UNC-2B,
.37 MAX
7 6
5 4
ETHERNET RF SAMPLE, TYPE N (F) (OPTIONAL)
LABEL, CE
COM 1, DE-9 (PIN)
COM 2, DE-9 (PIN)
AUX IF, DA-15 (SOCKET)
VIEW A-A
REAR VIEW
SCALE 1/1
1
4X 6-32 UNC-2B,
.37 MAX
DETAIL "C"
(WR-75 TAPPED)
ROTATED 90
SCALE 2/1
5 4
3
UPC I/F
CONXALL CONNECTOR P/N: 7281-3PG-311
MATING CONNECTOR P/N: 6382-3SG-311
XICOM P/N: 511-0198-003
LABEL, WEEE
RF INPUT, TYPE N (F)
LABEL, XICOM INFO
EXHAUST DUCT
4X MOUNTING HOLES
AIR EXHAUST
6-32 X
FREQ. BAND
C - BAND
Ku - BAND
DBS - BAND
DETAIL "D"
(WR-62 TAPPED)
ROTATED 90
SCALE 2/1
3
2 1
REVISIONS
ZONE REV. DESCRIPTION DATE APPROVED
- - SEE SHEET 1 - -
.31 MAX
4.50
3.982
3.70
3.00
2.30
1.60
.55
TABLE 2
RF OUTPUT
SEE DETAIL
W/G FLANGE
CPRG-137 TAPPED "B"
WR-75 TAPPED "C" (AS SHOWN)
WR-62 TAPPED "D"
XICOM
TECHNOLOGY

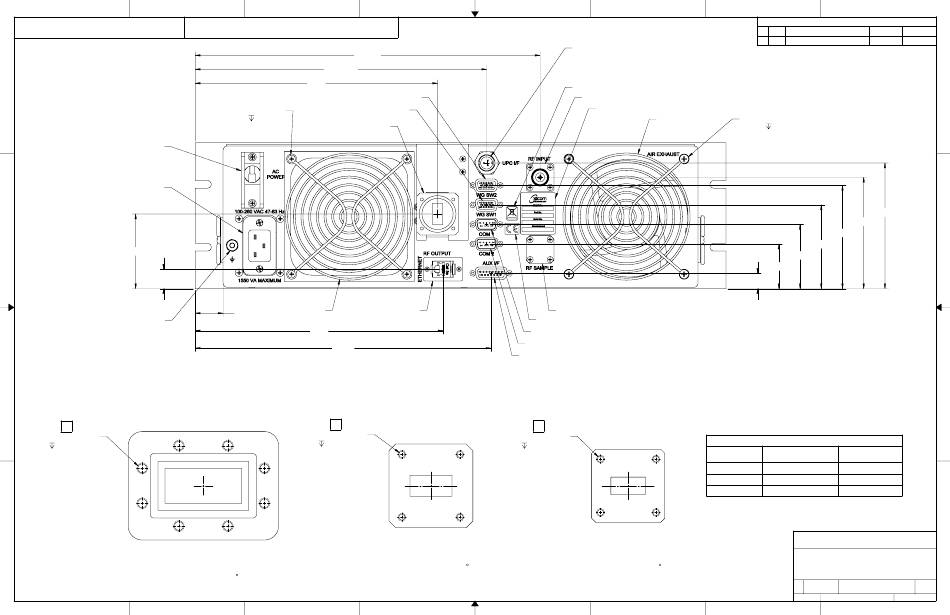

OUTLINE,
XTRT-400, LCD
SIZE CAGE CODE / FSCM DWG NO REV
D 304-0481-001 1
SCALE
1/2 SHEET 3 OF 5
